Moving Head Beam
VR
  • Product Details
  • Company Profile

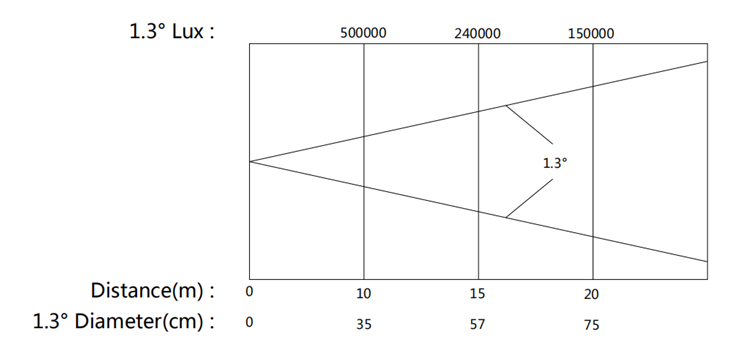

illumination diagram:



Product Parameters:



ElectricalVoltage110V ~240V
Power consumption430W
Light SourceLampORIGINAL PHILIPS MSD 280W/295W OPTIONAL

Color temperature7800K
Control ModeDMX51216ch/20ch
Master/slave
Auto
RDM
Optical System           Gobo wheel13 fixed gobo+white
Color wheel 14 colors+white + semi color effects
Six-color wheel 1pcs, work with a prism can present the effect of six-clor prism
Prism Wheel11 pcs three layers honeycomb prism
Prism Wheel21pcs 16 prism
Frost1pc  frost glass
Shutter1-13t/s
Dimmer0-100%
Focus
Beam angle1.3°, Linear focus
Featured Effect1 pcs 14-color+white wheel+semi color effects
1 pcs three layers honeycomb prism  ,1pcs 16 prism
Touch Screen DisplayReversible display, English-Chinese language switchable,automatic screen,off/lasting bright screen,record lighting time, the software version information,fault inspection, restore factory Settings
Satety ProtectionWill cut off the power automatically when the fixtiure is overheating or with system error
Machine W. Size29*23.5*49.5cm
Net Weight13.5kg
DMX CHANNELS:


Channel1620
1Color WheelColor Wheel
2StrobeStrobe
3DimmerDimmer
4GoboGobo
5Prism 1Prism 1
6Prism 1 RotationPrism 1 Rotation
7Prism 2 Prism 2
8Prism 2 RotationPrism 2 Rotation
9Focus Focus
10PanPan
11Pan FinePan Fine
12TiltTilt
13Tilt FineTilt Fine
14Pan/Tilt SpeedPan/Tilt Speed
15Frost&6 color wheelFrost&6 color wheel
16Lamp On/ResetLamp On/Reset
17
/
18
Color Wheel Speed
19
Dimmer-Prism-Frost Speed
20
Gobo Wheel Speed

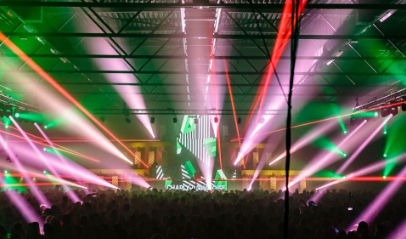

Light Effect:

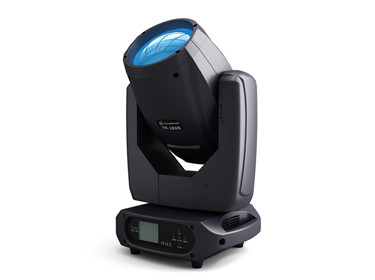

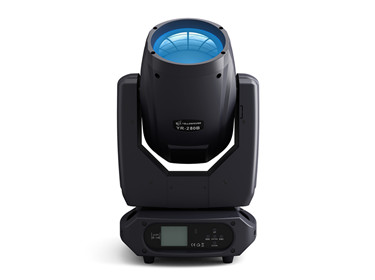

Product Appearance:

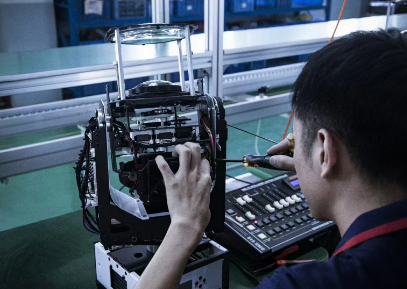

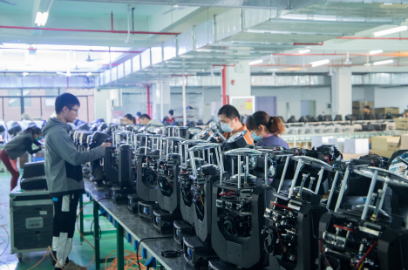

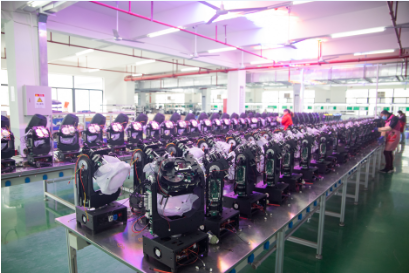

Workshop:





FAQ

1.How to proceed an order for stage light?
Firstly, let us know your requirements or application. Secondly, we quote according to your requirements or our suggestions. Thirdly, customer confirms the samples and places deposit for formal order. Fourthly, we arrange the production.
2.How to make sure your quality?
We have very clear and strict testing procedures ,and we also have advaced testing equipment.The most important thing is that we use all good quality materials and never tried low quality raw materials.
3.Is it OK to print my logo on stage light product?
Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
