Custom led light bar for home company Manufacturer | Yellow River

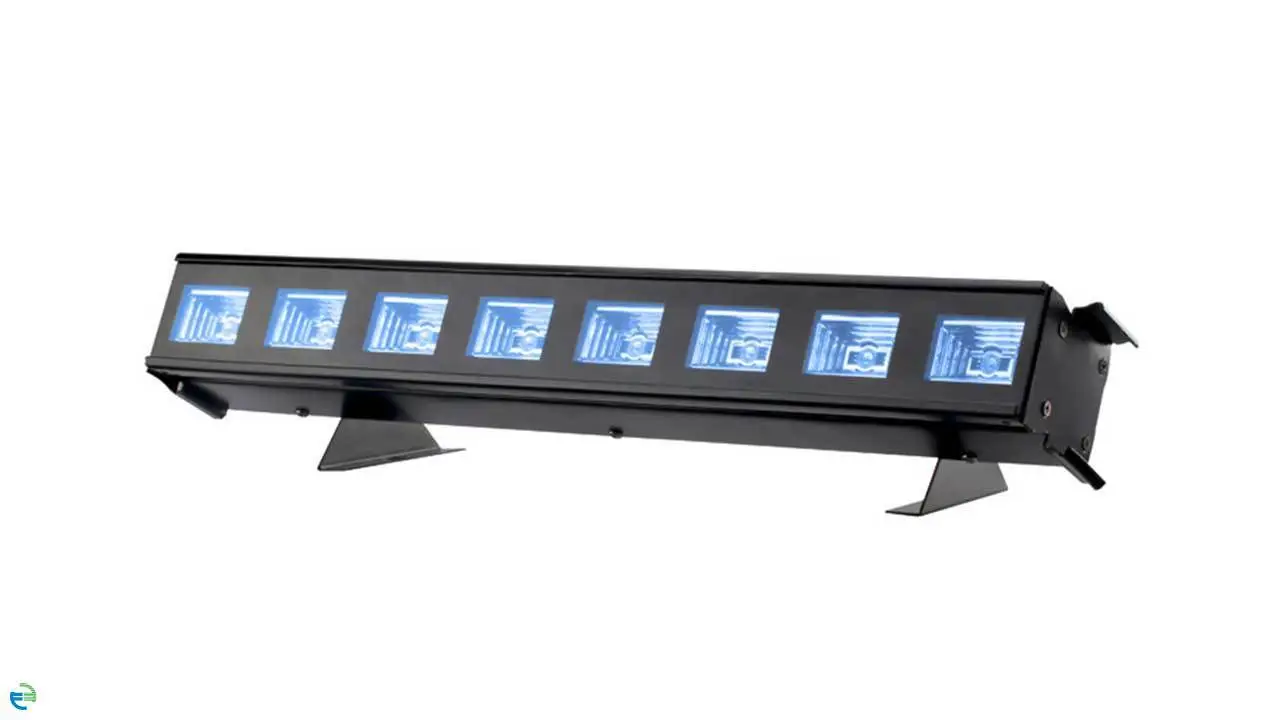

It is 8pcs *3W mini bar light with RGB 3 in 1 led , we also can do another version with rainbow color effect by using this same case. It is very compact ,only 42cm long and it is not heavy,only 0.75kg. The beam angle for this one is 110 degree reflector.We also can do 3W 9pcs RGB single color, cool white color and UV color.By the way, it can be connected one by one to meet your requests on length.
The original restaurant only has a chandelier. Can you install a fan without a fan? It is recommended to buy fan lights. if you have led light bar for home chandelier now, there is no place to install one fan. Second, if it is still under construction, you can cast a reinforced concrete strip in the place where the lamps are pre-installed, and reserve the lamp switch box pipeline there.It is the same as the rubber top, but the hollow board cannot be equipped with a heavy Yellow River chandelier. If you don't have anything to do, just enjoy the safe days at home! This is also a way to charge! Yellow River lamp is a piece of paper for the Eastern generation of white, illuminating the West Road of the deceased. Hanging at the gate.You have good luck. A piece of paper for white things, illuminating the West Road of the deceased. Hanging at the gate.When it comes to brighter and low energy consumption lights, this product is the choice. Freeing people of replacing bulbs and cutting cost in electricity bills, it is certainly a cost-effective lighting product.
MINI LED BAR 8x3W is a LED Wall Wash Light, which uses 8 pieces of 3W three-color LED lamps. Its voltage reaches AC100~240V 50/60HZ and its power reaches 25W. Three-color LED lamps can meet the customer's demand for red, green and blue color effects. Its mini appearance takes up less space and makes it easier to place and install. Connectability is the unique feature of this lamp. The lamp can be connected in multiple ways to achieve a wider range of wash effects. With its wide beam angle of 110°, this wash light is also ideal for use in bars and KTV rooms. The case of the lamp is made by an engineered aluminum profile and the top of the bead is protected by tempered glass, which can protect this lamp from damage caused by violent collision. MINI LED BAR 8x3W can achieve stroboscopic effect and has five stroboscopic modes. Its strobe frequency reaches 0-20 HZ. It has two control channels 4CH and 9CH for users to switch. Its powerful wash effect can meet the bar, banquet hall and other different places to use.
llumination diagram:
Product Parameters:
| Electrical | voltage | 110V ~ 240V | |
| power consumption | 25W | ||
| Light source | LED | 8x3W(RGB 3in 1) | |
| Color | RGB 3in 1 | ||
| Control mode | DMX512 | 9/4ch(switchable) | |
| Master/slave | √ | ||
| Manual control | √ | ||
| Sound Active | √ | ||
| auto | √ | ||
| Optical system | Beam Angle | 110° reflector | |
| Dimmer | 0~100% line dimmer | ||
| Strobe | 0-20Hz | ||
| Physical | Machine size | see following diagrammatic drawing | |
| Machine weight | 0.75kg | ||
| Environment& safty | Stock | dry and clean place | |
| Running temp. | under 40°C | ||
| 9CH MODE | 4CH MODE | ||
| CH 1 | DIMMER | CH 1 | DIMMER |
| CH 2 | R DIMMER | CH 2 | R DIMMER |
| CH 3 | G DIMMER | CH 3 | G DIMMER |
| CH 4 | B DIMMER | CH 4 | B DIMMER |
| CH 5 | STROBE | ||
| CH 6 | BUILT IN-COLOR | ||
| CH 7 | AUTO/Sound Active | ||
| CH 8 | AUTO SPEED | ||
| CH 9 | DIMMER MODE | ||
Light Effect:
Product Appearance And Size:
Work Shop:
