What to pay attention to when buying a living room chandelier 1. transparency. If the purchaser has requirements for transparency, then pay attention to the material of the crystal Yellow River lamp when purchasing. When buying, you should take a look at whether there are cracks, bubbles, water ripples and impurities in the crystal ball. The average family will use a ceiling lamp as the main lamp in each bedroom, and then use one in the toilet and kitchen. in this way, the usage rate of ceiling lamps is relatively high.Yellow River Ceiling Lamp is installed inside the room, because the upper part of the lamp is flat, it is installed close to the roof, like adsorption on the roof, so it is called ceiling lamp. Finally, when cleaning and maintenance, pay attention not to change the structure of the Hybrid Moving Head lamp, nor to replace the parts of the lamp casually. after the cleaning and maintenance, the lamp should be installed as is, do not leak or misfit parts of lamps and lanterns.The product features high-efficiency thermal management that is the important factor for its longevity. Thus, it has stable performance compared to other lighting products.

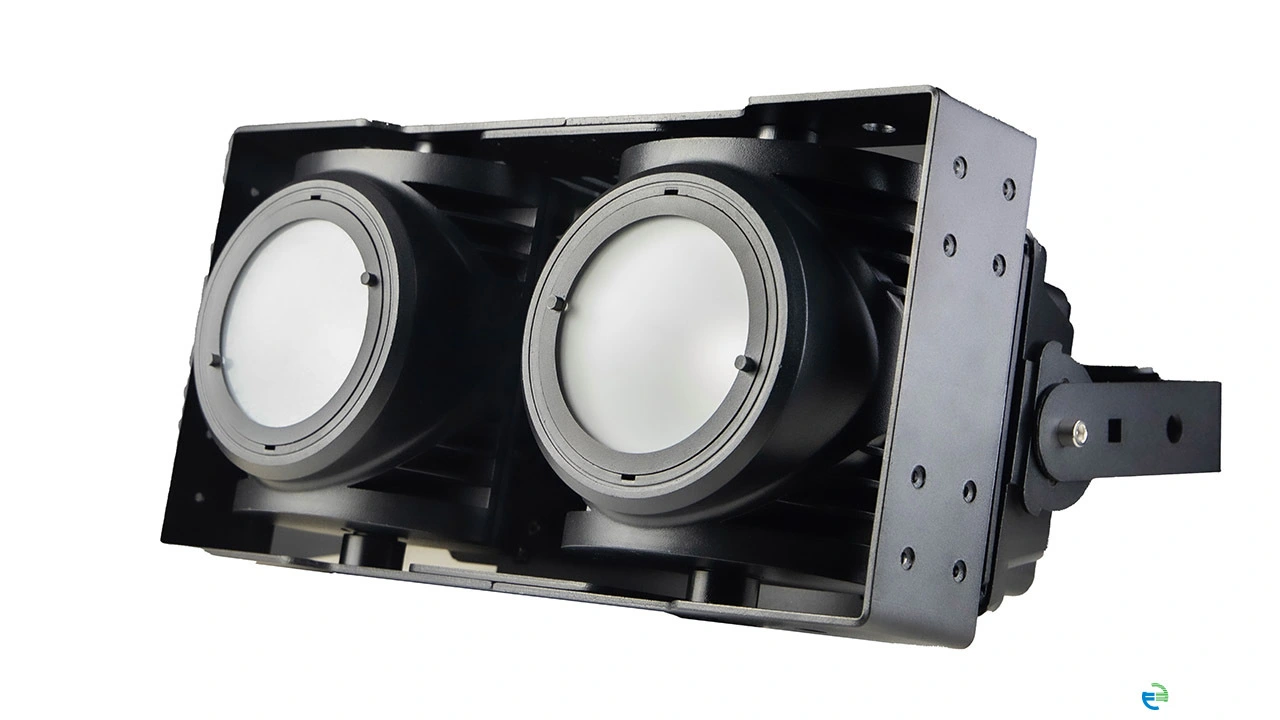

The LED Blinder is a lighting fixture that utilizes high-intensity LEDs to produce eye-catching and dynamic visual effects. It's a powerful way to accentuate live performances, concerts, special events, and even film sets. The unit comprises several small yet extremely bright LED lights that are programmed to flash or strobe at various speeds and intensities. These effects create an extraordinary visual impact while also enhancing the mood of any space with their dramatic illumination. The compact design of the LED blinder allows for versatile setup options such as mounting on stands or rigging in trusses. With its energy-efficient operation, ease of use, and flexibility in terms of control options - including YR-DIPE100QX2 - this innovative tool continues to captivate audiences around the world by providing stunning light shows like never before!
Product Parameters
| Electrical | Voltage | 110V ~ 240V | |
| power consumption | 250W | ||
| Light source | LED | 2 PCS 100W 4-in-1 LED | |
| Color | Red, green, blue, warm white | ||
| Control mode | DMX512 | 12CH /8CH/6CH/4CH optional | |
| Master/slave | √ | ||
| Voice control | √ | ||
| Auto | √ | ||
| Optical system | Spot Angle | 50° | |
| Dimmer | 0-100 linear | ||
| Strobe | strobe 1-25Hz | ||
| Material | Aluminum | ||
| Machine weight | 8.5kg | ||
| Packing Size | 49*31*33cm | ||
| Environment& safety | Store condition | dry and clean place | |
| Cooling method | Heat dissipation itself | ||
| Heat dissipation control | motherboard intelligent temperature control system, automatic overtemperature protection | ||
| Running temp. | -20°~40° | ||
| IP rate | IP65 | ||
| Channels(12CH): | ||||
| CH | function | decription | ||
| CH1 | DIMMER | Total dimmer,linear dimmer, from dark to bright | ||
| CH2 | STROBE | Total strobe，from slow to fast | ||
| CH3 | FUNCTION SELECTION | 0—5:empty; 6－100:jump change;101—150: gradual change; 151—200:pulse change;201—256:sound | ||
| CH4 | SPEED OF FUNCTION | Speed of function，from slow to fast | ||
| CH5 | R1 dimmer | Red 1 0-100% | ||
| CH6 | G1 dimmer | G1 0-100% | ||
| CH7 | B1 dimmer | B1 0-100% | ||
| CH8 | WW1 dimmer | WW1 0-100% | ||
| CH9 | R2 dimmer | R2 0-100% | ||
| CH10 | G2 dimmer | G2 0-100% | ||
| CH11 | B2 dimmer | B2 0-100% | ||
| CH12 | WW2 dimmer | WW2 0-100% | ||
| Channels(8CH): | ||||
| CH | function | decription | ||
| CH1 | DIMMER | Total dimmer,linear dimmer, from dark to bright | ||
| CH2 | STROBE | Total strobe，from slow to fast | ||
| CH3 | FUNCTION SELECTION | 0—10:empty; 11－100:jump change;101—150: gradual change; 151—200:pulse change;201—255:sound | ||
| CH4 | SPEED OF FUNCTION | Speed of function，from slow to fast | ||
| CH5 | R dimmer | linear dimmer,from dark to bright | ||
| CH6 | G dimmer | linear dimmer,from dark to bright | ||
| CH7 | B dimmer | linear dimmer,from dark to bright | ||
| CH8 | WW dimmer | linear dimmer,from dark to bright | ||
| Channels(6CH): | ||||
| CH | function | decription | ||
| CH1 | R dimmer | Red 0-100% | ||
| CH2 | G dimmer | Green 0-100% | ||
| CH3 | B dimmer | Blue 0-100% | ||
| CH4 | WW dimmer | Warm white 0-100% | ||
| CH5 | Master dimmer | Total brightness 0-100% | ||
| CH6 | Strobe effect | 000 – 000 No function,001 – 005 Sound control color change 006 – 010 No function,011 – 255 Strobe with increasing speed 0-100% | ||
| Channels(4CH): | ||||
| CH | function | decription | ||
| CH1 | R dimmer | linear dimmer,from dark to bright | ||
| CH2 | G dimmer | linear dimmer,from dark to bright | ||
| CH3 | B dimmer | linear dimmer,from dark to bright | ||
| CH4 | WW dimmer | linear dimmer,from dark to bright | ||
Products
LED blinder typically consists of an array of high-powered LEDs that can produce a very bright, concentrated beam of light. Stage blinder lights are often used to create dramatic, strobe-like effects, or to illuminate a large area of the stage or venue. They can be controlled using a DMX controller or other lighting control system, and can be programmed to display a wide range of colors, patterns, and effects.
