Custom small led light bar wholesale Manufacturer | Yellow River

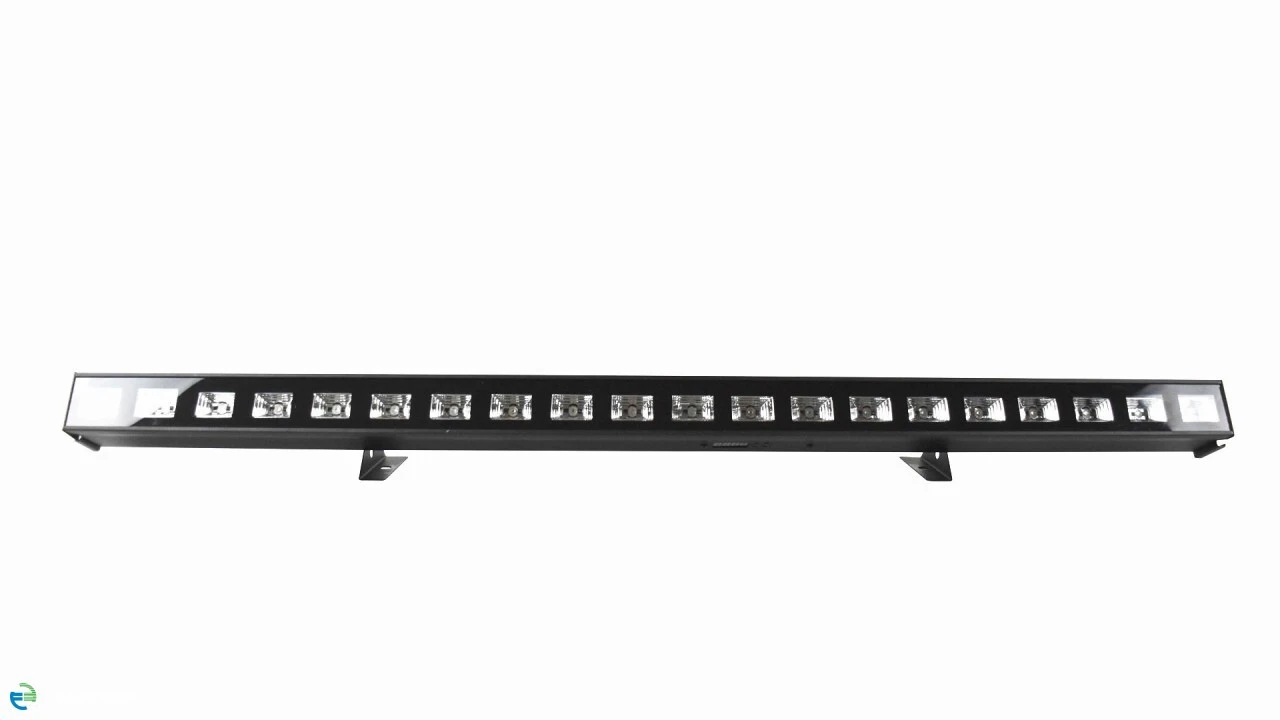

YR-L0320S Silm LED BAR with 20*3W 4 in 1 color. It is led bar without fan, especially apply to noise pollution demanding places, such as buildings, hospitals, office space, and so on. They can be assemble one by one to creat effect what you want, this design enable the light to be very stable and can ensure long life span as well as convenient installation. Moreover, it is very portable and cost effective.
Do you have any feng shui taboos for the installation of all copper small led light bar chandeliers in the living room? According to Chinese tradition, home feng shui is often an important topic that people care about. if the whole copper chandelier is not installed correctly, there will even be a risk of breaking money. And outdoor party A is basically the general package to Party B, because it involves the installation problem. Party B must control the profit in their piece, so report it to Party A at a high price, take some general goods and install it. The Landscape lamps have no technical content except the shape. I understand.First of all, it is necessary to determine that there are several levels of ceiling: the 'first and second level' here does not refer to the level of ceiling, but refers to the shape, like a gradient, and another layer is added under a ceiling, called the second level. The third level is to do another layer on the basis of the second level. The product has a longer life span, reducing the requirement for frequent replacements and carbon emissions.
MINI LED BAR 20x3W is a LED Wall Washer Light, which uses 5 pieces of 3W LED red light, 5 pieces of 3W LED green light, 5 pieces of 3W LED blue light and 5 pieces of 3W LED amber light. MINI LED BAR 20x3W (RGBA) can meet the customer's demand for red, green, blue and amber color effects. Its voltage reaches AC110~240V 50/60HZ and its power reaches 65W. With its wide beam angle of 110°, this LED Bar Light can meet the needs of customers for a wider range of light. It will also come with reflector cup for you. Its dimming has 1 standard method and 4 kinds of different dimmer methods for you to use. Its powerful wash effect can be perfectly used in the bar, banquet hall and other places. The case of the light is made by an engineered aluminum profile and the top of the bead is protected by tempered glass, which can protect this lamp from damage caused by violent collision. MINI LED BAR can achieve stroboscopic effect and has five stroboscopic modes. Its strobe frequency reaches 0-20 HZ. MINI LED BAR 20x3W has no internal fan and dissipates heat naturally.
YR-L0320S illumination diagram:
Product Parameters:
| Electrical | voltage | AC100V-240V | |
| power consumption | 65W | ||
| Light source | LED | 20x3W(R/G/B/A 4) | |
| Color | R/G/B/A | ||
| Control mode | DMX512 | 5/10CH (switchable) | |
| Master/slave | √ | ||
| Manual control | √ | ||
| Sound Active | √ | ||
| auto | √ | ||
| Optical system | Beam Angle | 110° (with reflector cup) | |
| Dimmer | 0~100% line dimmer | ||
| Strobe | 0-20Hz | ||
| Physical | Machine size | 101.5*5.7*11.7CM | |
| Machine weight | 2.0KG | ||
| Environment& safty | Stock | dry and clean place | |
| Running temp. | under 40°C | ||
| 10CH MODE | 5CH MODE | |||
| CH 1 | Dimmer | CH 1 | Dimmer | |
| CH 2 | Red dimmer | CH 2 | Red dimmer | |
| CH 3 | Green dimmer | CH 3 | Green dimmer | |
| CH 4 | Blue dimmer | CH 4 | Blue dimmer | |
| CH 5 | Amber dimmer | CH 5 | Amber dimmer | |
| CH 6 | Strobe | |||
| CH 7 | Color Preset | |||
| CH 8 | Auto & Sound Active | |||
| CH 9 | Auto Speed | |||
| CH 10 | Dimmer Curve | |||
Light Effect:
Product Appearance:
Work shop:
