Do you have any feng shui taboos for the installation of all copper stage par lights chandeliers in the living room? According to Chinese tradition, home feng shui is often an important topic that people care about. if the whole copper chandelier is not installed correctly, there will even be a risk of breaking money. That is, according to the entire space size of the living room and the power of the lamp to determine how many lights your living room needs to make the living room bright. The darker corner of the living room can be considered to use the floor stage par lights lamp or wall lamp to decorate the effect. Like the chandelier, it is also the main lighting equipment in the room. it is a lamp often used in various places such as home, office, entertainment, etc., and the ceiling lamp is very helpful for indoor decoration, so people love it.Yellow River has to undergo the drop test to check whether its inner components are firmly attached and its sturdiness, so as to avoid damage during transportation.
The stage PAR light with ring effect is designed for stages and theatres, it features a compact yet powerful LED lamp enclosed within a sleek circular frame. With its ability to produce vibrant colors and generate stunning visual effects, the stage par light illuminates any performance space with an unparalleled brilliance. The added ring effect further adds depth and dimension to the lighting design, allowing for captivating illusions and mesmerizing scenes on stage. Its versatility knows no bounds, as it can be easily controlled through DMX or operated in standalone mode using its user-friendly interface. Whether used individually or seamlessly synchronized with other lights, this remarkable stage par light creates an immersive ambiance that captivates audiences and elevates any live production to new heights of artistry.
Product Parameters
Electrical | voltage | 110V ~ 240V | ||
power consumption | 150W | |||
Light source | LED | 10W*12pcs | ||
Color | 12x10W(4 in 1RGBW )+96*0.2W(3 in 1RGB) | |||
Control mode | DMX512 | 5/9/12/56ch | ||
Master/slave | √ | |||
Manual control | √ | |||
Sound Active | √ | |||
auto | √ | |||
Optical system | Beam Angle | 25° | ||
Dimmer | 0~100% line dimmer | |||
Strobe | 0-20Hz | |||
Noise | Noise mode | Intelligent temperature, active heat dissipation,silent below 40 degrees, fan begin to work when temperature above 40 degrees. maximum noise is 43.0dBA from 1 meter away (close to ambient noise),you can choose to turn off fan and use silent mode without any noise , but power will reduce according to temperature to keep led lamp safe when temperature above 80 degree. | ||
Physical | Machine size | 28.2x13.9x25.3cm(excluding hook) | ||
Machine weight | 3kg | |||
Environment& safty | Stock | dry and clean place | ||
Running temp. | 40°C Max |
CHANNEL CHART | CH5 MODE | CH9 MODE | CH12 MODE | CH56 MODE |
CH 1 | Dimmer | Ring and coloring options | Ring and coloring options | Ring and coloring options |
CH 2 | RED | Dimmer | Dimmer | Dimmer |
CH 3 | GREEN | Strobe | Strobe | RED Wash |
CH 4 | BLUE | RED | RED Wash | GREEN Wash |
CH 5 | WHITE | GREEN | GREEN Wash | BLUE Wash |
CH 6 | BLUE | BLUE Wash | WHITE Wash | |
CH 7 | WHITE | WHITE Wash | Ring Section 1 RED | |
CH 8 | Static Color mixing + Auto | RED Ring | Ring Section1 GREEN | |
CH 9 | GREEN Ring | Ring Section1 BLUE | ||
CH 10 | BLUE Ring | ....... | ||
CH 11 | Static Color mixing + Auto | Ring Section16 RED | ||
CH 12 | Auto Speed | Ring Section16 GREEN | ||
Ring Section16 BLUE | ||||
Static Color mixing + Auto | ||||
Auto Speed |

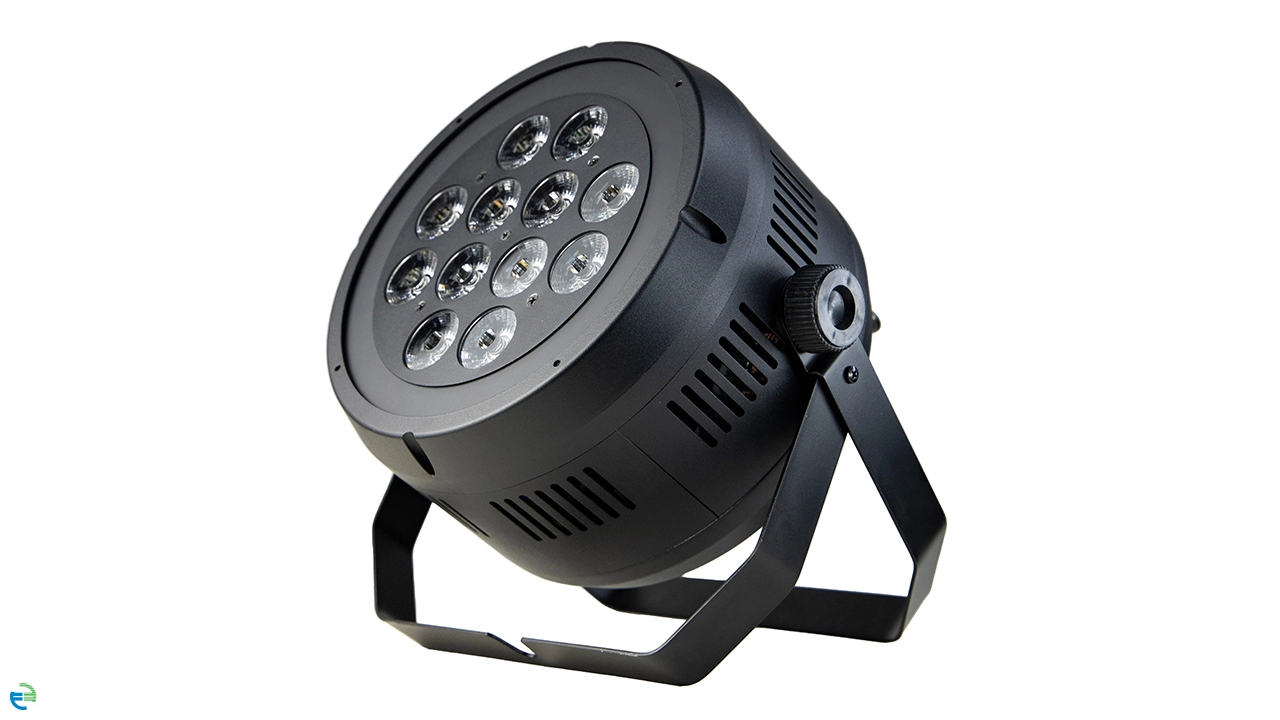

YR-N12A is a LED Indoor Par Light WITH RING EFFECT. The Light sources of its are 12pcs x10W(4-in-1 RGBW) and 96pcs x0.2W(3-in-1 RGB) in the ring , Light source life up to 50,000 hours. The control signal including DMX512(Digital MultipleX 512) and RDM, in line with the international standard light control transmission protocol, support console set address code, support DMX interface upgrade software. And it has different operation mode: Console, manual, master/slave, optional WIFI+ mobile APP control. What’s more, the fan is silent when it is turned off below 40 degrees, and the fan starts to rotate when it is above 40 degrees. Operating voltage of YR-N12A is AC100V-240V (50/60HZ),Rated total power is 150W, and Power factor is 0.56. Ambient temperature should lower than 40 ° C. The Case material of YR-N12A are Engineering aluminum alloy (high temperature resistance), fine sand paint (high-end wear-resistant). And it has Display that is LED highlighting red digital tube +4 mechanical buttons, supporting 30 seconds off screen and continuous bright screen dual mode. Its Handles are Limit double handle, flat anti-slip. The power interface are twisted crisp head, one blue (in) and one white (out). Signal interface: signal socket 3 core male + female, can plug DMX512 wireless signal receiver. And the IP rate is IP20.
Inner Carton Packing | Weight (1 unit) | 4KG | ||
size (1 unit) | 29.5*29.5*32.5CM | |||
Master Carton Pcking | Weight (4 unit) | 16.8KG | ||
size (4 unit) | 60*60*32.5CM | |||
Accessary | 1 signal cable & 1 power cable |
Advantages
1. A stage lighting enterprise that gathers research, production, marketing, and after-sales as integral whole.
2.Top ten Brand enterprises of Stage lighting in China, national intellectual property standard enterprise, Guangdong Province contract abiding enterprise, China Quality credit AAA+ enterprise, etc.
3.More then fifty kinds of goods have been granted“CE” certification.
4.Our goods are popular in Europe and America, Southeast Asia, Russia., etc., more than 60 countries and regions.
About Yellow River
Yellow River lighting -- focusing on stage lighting for 21 years, it is a national high-tech enterprise which provides integrated service of R&D, design, production, marketing and after sales service.Top ten Brand enterprises of Stage lighting in China, national intellectual property standard enterprise, Guangdong Province contract abiding enterprise, China Quality credit AAA+ enterprise, etc. The company has passed ISO9001 quality management system, occupational health and safety management system, environmental management system and other certifications.The products have passed the CE RoHS certification and obtained dozens of patents. More then fifty kinds of goods have been granted “CE” certification. Established in 1999, the staff in Yellow River always take the responsibility “Let the world dance” upon ourself.The senior management team is mostly composed of 6-21 years of senior industry personnel. At present, the company has three R & D centers and three brands: Yellow River Lighting, Yagelai and Yagesi. We have seven offices in China and We have more than 2000 global brand agents and project contractors; Is the preferred manufacturers for your culture and art center, tourism performance, multi-function hall, hotel banquet hall, auditorium, night tour, urban landscape lighting and other projects.
