Yellow River Lighting Since 1999, professional lighting manufacture focusing on Moving head light and Led light!
High-quality led beam moving head wholesale | Yellow River

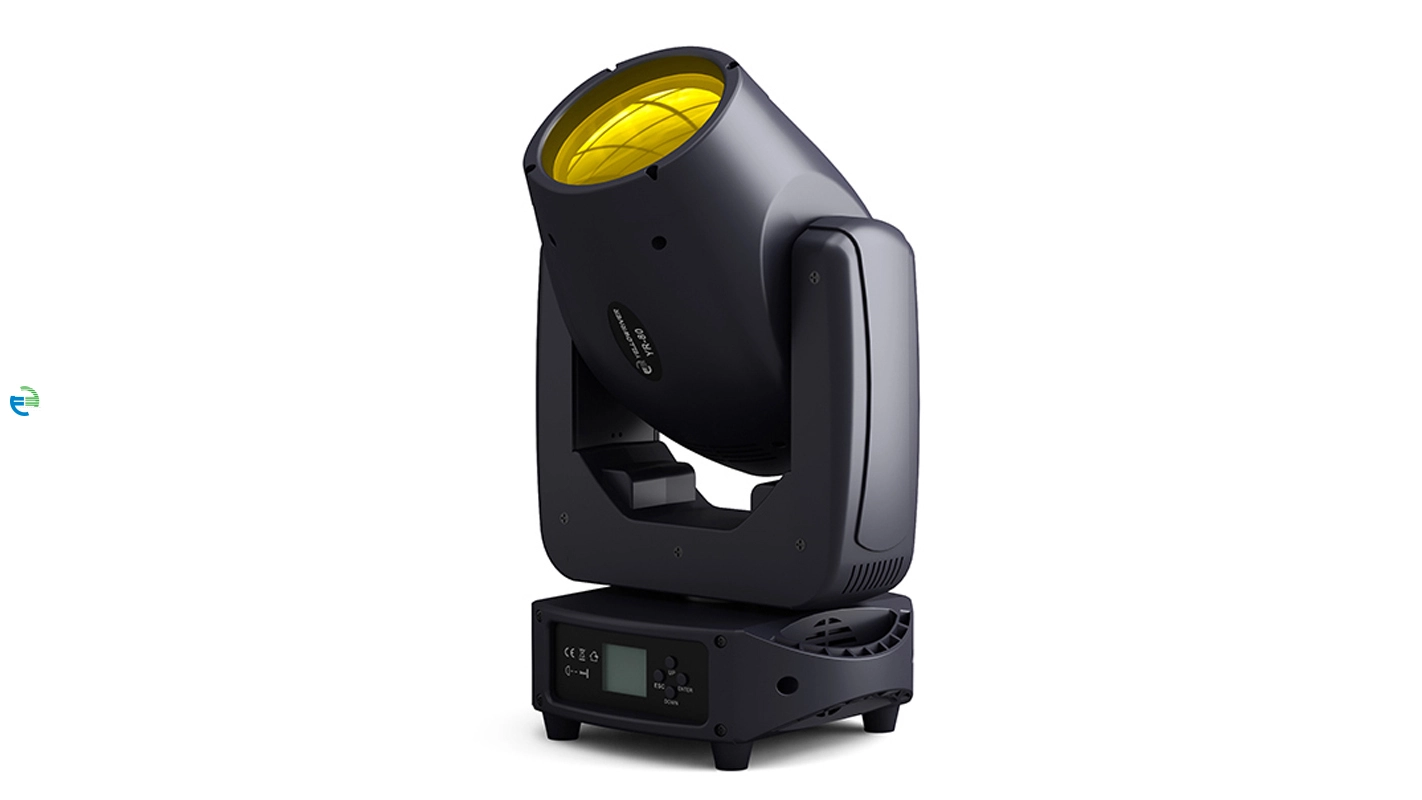

The most attractive point of the 80W led moving head beam is the brightness, although the power is 80W, its brightness can reach 72000 lux@5 meters, it is with long lifespan LED source and not to be very hot while working.
It has two color wheels, 1 color wheel includes: 11pcs colors + CTO+ 1pc CTB + White which can create semi-color effect, bi-direction flow effect. 1 pcs 6-color wheel which can create a rainbow effect with prism.
For the gobo wheels, it has 9 gobos + 2 different size beam holes+ White open +
Yellow River Best 80W LED Moving head beam Factory Price - Yellow River,More then fifty kinds of goods have been granted“CE”certification.
gobo shake + bi-direction flow effect. The prism is 1 pcs 8 facet prism plus 1pcs 16 facet prism. The beam angle is 0.85 degrees, pan movement is 1.8s, tilt movement is 0.9s, widely used in KTV rooms, bars, ballrooms, or some small events.
The layout of the real estate The Hybrid Moving Head home is a villa designed in the 1990s S. the exterior wall is pasted with magnetic chips and has a modern style, but the lintel hangs a complete Tibetan antelope head, yak head and Panyang head, the interior decoration is also an absolute specimen of Chinese classical style. Generally, the price of living room LED Moving Head lamps and lanterns is now available in hundreds to tens of thousands, mainly depending on how to choose! Next, let's talk about how to choose!First of all, safety: you can't blindly covet cheap when choosing lamps and lanterns, but you should first look at their quality and check whether the warranty and certificate are complete. Different lamps should be selected according to different room functions.The LED Moving Head lamps and lanterns mainly include ceiling lamps, ceiling lamps, floor lamps, crystal lamps, wall lamps, etc. The main features of various lighting are as follows:Chandelier: generally, it is a lamp hanging on the ceiling.Yellow River led beam moving head has passed the heat resistance test and is verified that it can work normally and stably under a relatively high-temperature condition.
Illumination diagram:
Product Parameters:
| Electrical | Voltage | 100V ~240V,50-60HZ | |
| Power consumption | 230W | ||
| Light Source | LED | 80W White LED @5000lm/72000lux@5m | |
| LED lifespan | 50000 hours | ||
| Control Mode | DMX512 | √ | |
| Master/slave | √ | ||
| Auto | √ | ||
| RDM protocol | √ | ||
| Channel | standard mode 16CH/ extended mode 20 CH | ||
| Optical System | Strobe | 1~30t/s | |
| CCT | 9800K | ||
| Color wheel | 2 color wheels, 1color wheel includes: 11pcs color plates + CTO+ 1pc CTB plate + White open,semi-color effect, bi-direction flow effect. 1 pcs 6-color plate which can create a rainbow effect with prism. | ||
| Fixed Gobo Wheel | 9 gobos + 2 different size beam holes+ White open+gobo shake + bi-direction flow effect | ||
| Scan | Scan:3-phase motor, Pan 540°/1.8s, Tilt 270°/0.9s, with photoelectric auto-reset and correction | ||
| Prism | 1 pc 8-facet prism 1 pc 16-facet prism, rotate independently, stackable to be 24 facets, bilateral rotation, bi-direction flow effect. | ||
| Angle | Angle: beam 0.85°; with frost | ||
| Display | 1.4 -inch LCD color screen, can set the channel mode (standard model, extended mode), horizontal vertical inversion, screen reversible, signal hint, switchable in both Chinese and English, the automatic screen turn off / long last for display power on, display the channel number, source temperature, fan speed, record the power-on time, power on times, fault prosecution, manual control channel data memory, the software version information, restore factory Settings, the scanning, and the effect correction result. | ||
| Cooling system | Cooling system: intelligent-temperature-control fan, fan stop when under 40℃, fan goes faster when over 40℃, every cooling board is made with mold, so it's accurate, efficient ventilation and noiseless. | ||
| safety protection | the power will be cut off automatically when the fixture is overheating or with a system error | ||
| Light source opening mode | support instant blackout and lights on | ||
| Light body | 1pc LCD display, 4pc buttons power interface:1 in;1 out power; signal interface: 3 pin + network/ 3pin+5 pin | ||
| Featured Effect | 1. High-efficiency cooling system, whole-process temperature monitoring. 2.2 color wheels, 1 pc 8-facet prism +1 pc 16-facet prismsemi-color effect, bi-direction flow effect. 3. intelligent temperature-control fan, timely display rotation speed. | ||
| Machine N.W | 11.4KG | ||
| Machine Size | 298*231*473mm | ||
| Environment& safety | Level of Protection | IP20 | |
| Stock | Clean and dry place | ||
| Running temp. | -10°C~40°C | ||
Color Wheel & Gobo Wheel：
Light Effect:
Product Appearance:
Workshop：
