For market demand we released thisLED Zoom Moving head with the latest technology. Zoom angle:9°-44°,the pixel LED control and overall LED control present more pattens to meet the customer application. Especially the smooth motor was used , it can rotate fast with no noise. sharpy beam shooted out from the ultra led 40W(7 QUAD) bring the audience stunning feeling that never experienced from other mini beams. High efficiency cooling system and Intelligent speed control fan enables the unit working safely. and environmentally friendly. we see it a new increasing point in the bar, club and disco market.
Will the living room ceiling lamp shake after too long? The living room ceiling lamp should not be directly mounted on the ceiling, especially the heavier lamp. even if the mini led spot moving head light ceiling will have certain bearing capacity, I think it will definitely affect the ceiling after a long time. This shows that the problem is not from the ballast. Generally, the wires buried in the floor or in the junction box above the LED Moving Head lights have leakage. After going to bed at night, try to turn off the main gate and see if there is any fever the next day. If the switch is still turned off, it is not a problem with your home line; otherwise, it will be carefully checked. Woodworking first makes the top of the shape, and then the painter batches the white again, looking for people who make plaster lines to make flowers.Hanging a rectangular glass top1. do mini led spot moving head light ceiling around the living room, do not do ceiling in the middle. This kind of ceiling can be shaped by wood splints and designed into various shapes. it is equipped with spotlights or downlights, and is not equipped with novel ceiling lamps in the middle of the ceiling.It is a better option for those who are looking for energy conservation. Because it does not need to replace as often.
7*40W LED Moving Head Light is one of the products belonging to the Moving Head Beam+Wash Series, which has beam and wash 2 in 1 effects. LED Moving Head Light uses 7 pieces of 40W RGBW 4 in 1 OSRAM. Its voltage reaches AC100~240V 50/60HZ and its power reaches 350W. According to the user's requirements for different light and beam sensation, 7*40W LED Moving Head Light can provide user to choose from 9 degrees to 44 degrees of beam Angle. 7*40W LED Moving Head Light has powerful color mixing system. It can achieve pixel control and a single LED light flashing. The light will be more concentrated and the sensation of the beam will be enhanced. 7*40W LED Moving Head Light can achieve circle control and circle flashing from the middle to the periphery. LED Moving Head Light can achieve rainbow effect, which can be individually controlled with different colors for flashing. 7*40W LED Moving Head Light has intelligent temperature control, muting below 40°C, starting heat dissipation above 40°C. It also can achieve automatic temperature adjustmentand whole-process temperature monitoring. LED Moving Head Light can be tilted up to 540 degrees horizontally and 270 degrees vertically and equipped with photoelectric reset and correction. The whole field will be illuminated by the beam and wash effects.
YR-M4007Q Illumination Diagram:
Product Parameters:
| Electrical | Voltage | 100V-240V 50-60Hz | |
| Amperage： | 2.5A | ||
| Power consumption | 350W | ||
| Light source | LED lifespan | 50000 hours | |
| LED | 7pcsX40W Osram | ||
| Color | RGBW 4in1 | ||
| Control channels | standard mode 17CH/ extended mode 38 CH/pattern mode 18CH/ HSI mode 11CH | ||
| DMX512 | √ | ||
| Master/slave | √ | ||
| Network function | Support RDM and DMX softwar upgrade,Artnet,Klingnet,SACN networking protocol optional | ||
| Optical system | LCD colorful Display | 2.0 inch LCD color screen, can set the channel mode (standard/extended/pattern/HSI) horizontal vertical inversion, back screen, signal hint, switch in both Chinese and English, automatic screen off/lasting bright screen, display channel mode,light source temperature, fan speed, record boot time, and times of start,fault inspection, manual control channel data memory, the software version information, restore factory Settings, scan and color correction | |
| Beam angle( scan type) | 9°-44°/0.8s | ||
| Dimmer | 0-100%（16bit） | ||
| CCT | 2800K-8500K | ||
| Zoom: | using highly mute motor; accurate zoom, stable beam without shaking | ||
| X/Y scan | Pan 540°,Tilt:270° | ||
| Strobe | 1-20Hz | ||
| features: | 1.High efficiency cooling system, whole-process temperature monitoring. 2.Automatic temperature adjustment and protection when temperature is too high, no risk of LED lamp damage. 3.Intelligent speed control fan(SUNON FAN), timely display rotation speed. | ||
| Physical | Machine size | 29*22.5*38cm | |
| Machine N.W. | 8.9kg | ||
| Housing | Flame-retardant plastic | ||
| Environment& safety | Store condition | dry and clean place | |
| Running temp. | 0-40°C | ||
| IP rate | IP20 | ||
Feature: | ◎beam angle:9°-44° |
| ◎Intelligent speed control fan (SUNON FAN) | |
| ◎Zoom | |
| ◎Pixel LED control | |
| ◎Support RDM and Artnet (optional) | |
| ◎High efficiency cooling system |
Light Effect:

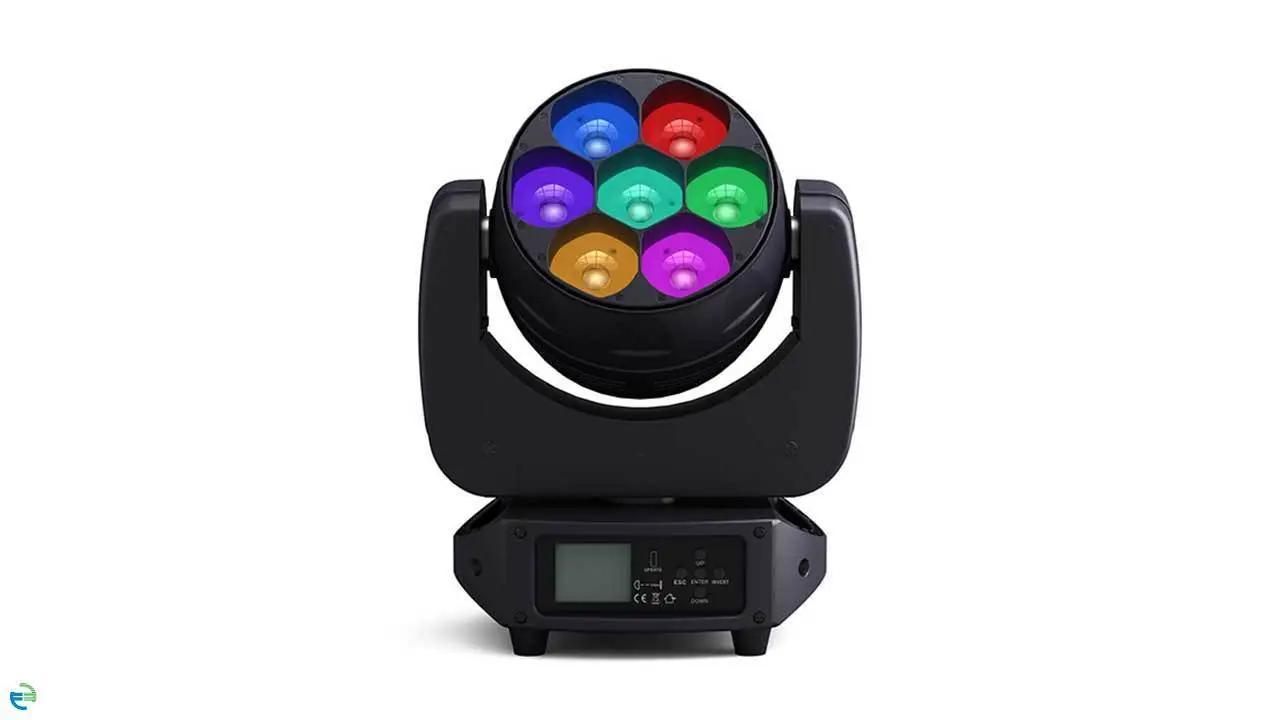

Product Appearance of 7*40W LED Moving Head Beam+Wash:
Size of 7*40W LED Moving Head Beam+Wash:
