High-quality moving head wash lights suppliers | Yellow River
We used Citizen brand LED 200W with a life span of 20000H and CCT：5600K
This item supports RDM, its Color wheel including 4 colors (R,G,B,Y) + white, semi-color effect +bi-direction flow effect.
Its beam angle is 14-60 degrees.
And Pan movement 540°/2.1 seconds, tilt movement 270° /1.1 seconds
The location of our guest room moving head wash lights lights, upstairs floor heating It will not be a ballast problem. The floor is at least 10 centimeters thick. if the heat can be transmitted to it, the ballast will smoke long ago. Besides, you turn off the lights at night. The ballast stopped working early and still felt hot. For example, the upstairs is a guest room and the downstairs is a living room, this design not only makes the living room itself have good LED Moving Head lighting, but also ensures that the lighting and ventilation of the bedroom are as good.2. reasonable design of hollow living room. Because the hollow living room is separated, the downstairs is the living room, and the area upstairs is not very large, so we leave the upstairs bedroom to the elders. With the kind of small hook that can suck into a vacuum, the front suction is plastic, and it is pressed on the surface of the buckle or lampshade. There may be screws in the LED Moving Head lampshade, suck the buckle next to it first.Yellow River is finely developed with a circuit board which is arranged on a heat sink to control too much heat produced.
Illumination diagram:
Product Parameters:
| Electrical | Voltage | 110V ~ 240V 50/60Hz | |
| power consumption | 250W | ||
| Light source | LED | 200W COB Citizen LED | |
| Color | RGBY+White open | ||
| Control mode | DMX512 | 10 DMX channels | |
| Master/slave | √ | ||
| Sound active | √ | ||
| RDM | √ | ||
| Auto | √ | ||
| Optical system | Beam angle | 14-60 degrees | |
| Dimmer | 0~100% dimmer | ||
| Strobe | 1-20 times/s | ||
| LCD Display | 1.4 inch LCD display ,horizontal vertical inversion,display inversion ,English-Chinese language switchable, auto-screen extinguishing, fault inspection, control channel manually , display channel mode, available for Factory data reset,scan and effect correction | ||
| Physical | Machine size | 296(L)*230(W)*440(H)mm | |
| Net weight | 8.2kg | ||
| Environment& safety | Store condition | dry and clean place | |
| Running temp. | 0°~40° | ||
| IP rate | IP20 | ||
| LUX | 5300lux@5m | ||
| Channels: | |
| CH | Function |
| CH1 | Pan |
| CH2 | Pan Fine |
| CH3 | Tilt |
| CH4 | Tilt Fine |
| CH5 | Pan/Tilt Speed |
| CH6 | Dimmer |
| CH7 | Strobe |
| CH8 | Color Wheel |
| CH9 | Zoom |
| CH10 | Reset |
Light Effect:

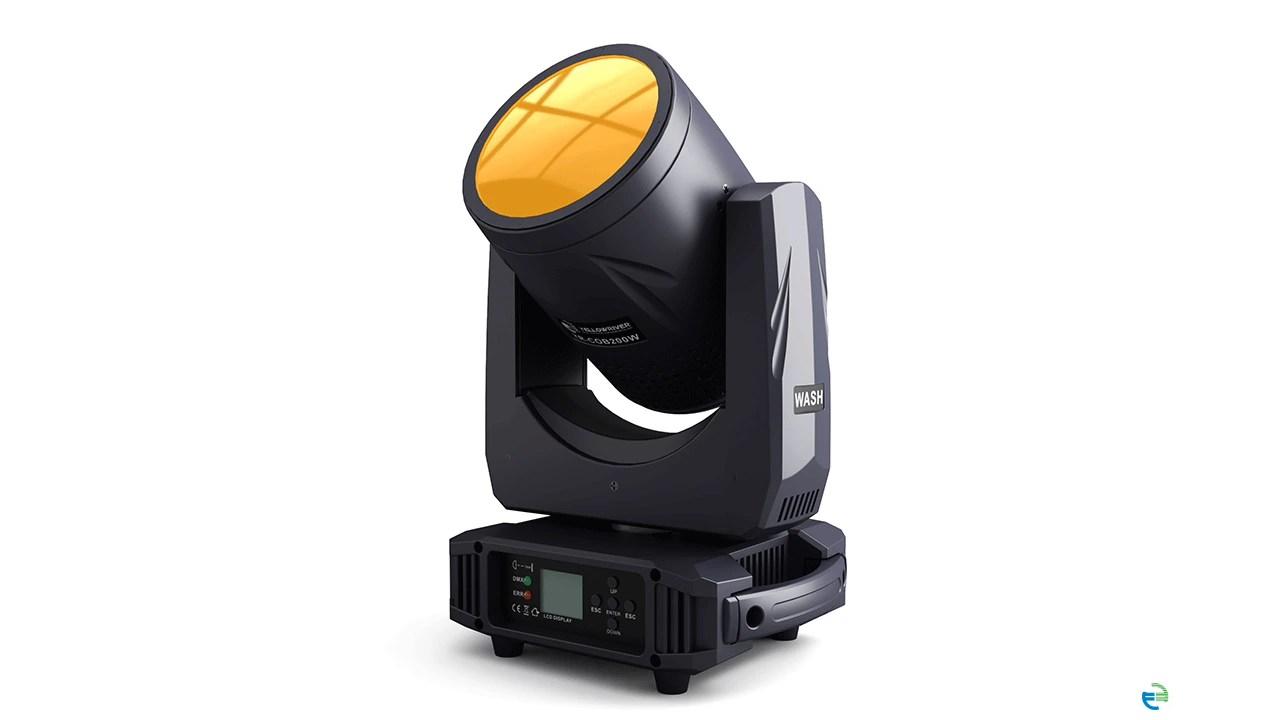

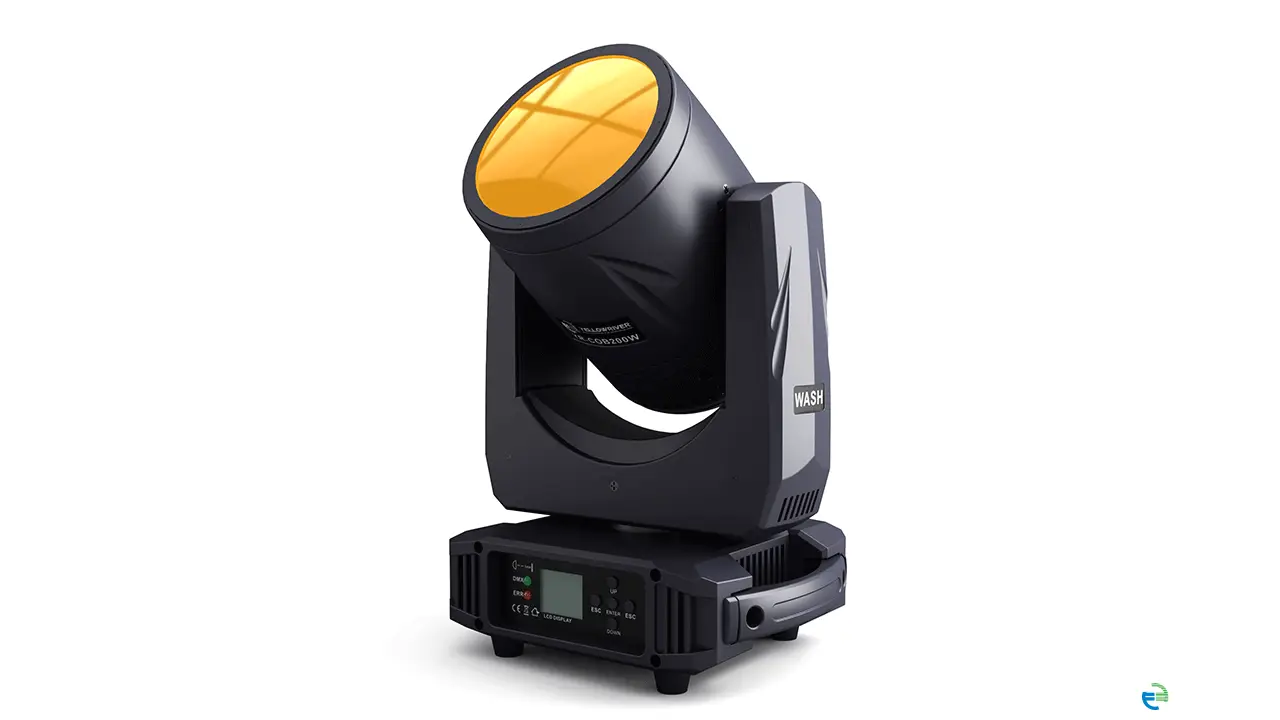

Product Appearance:
Workshop:
FAQ
Advantages:
