Latest led theatre lights bulk production | Yellow River
For market demand we released thisLED Zoom Moving head with the latest technology. Zoom angle:9°-44°,the pixel LED control and overall LED control present more pattens to meet the customer application. Especially the smooth motor was used , it can rotate fast with no noise. sharpy beam shooted out from the ultra led 40W(7 QUAD) bring the audience stunning feeling that never experienced from other mini beams. High efficiency cooling system and Intelligent speed control fan enables the unit working safely. and environmentally friendly. we see it a new increasing point in the bar, club and disco market.
Living room rectangular crystal ceiling lamp with what kind of dining room lamp? Dining room can have a chandelierN \ n dining room can be equipped with a small PRODUCTS chandelier. The power consumption of the optical fiber system is only about 50% of the same Yellow River light source, which fully achieves the purpose of saving energy. it can not only save a lot of construction costs, but also avoid cumbersome maintenance work in the future. These questions are some basic led theatre lights knowledge. When the customer asks you, you can answer the question correctly, the customer will feel that you are very professional and will recognize you for the company, naturally.Yellow River has undergone a thermal shock test and is verified that it performs well in the rapid change of temperature, which means the product can work well in hard temperature condition.
7*40W LED Moving Head Light is one of the products belonging to the Moving Head Beam+Wash Series, which has beam and wash 2 in 1 effects. LED Moving Head Light uses 7 pieces of 40W RGBW 4 in 1 OSRAM. Its voltage reaches AC100~240V 50/60HZ and its power reaches 350W. According to the user's requirements for different light and beam sensation, 7*40W LED Moving Head Light can provide user to choose from 9 degrees to 44 degrees of beam Angle. 7*40W LED Moving Head Light has powerful color mixing system. It can achieve pixel control and a single LED light flashing. The light will be more concentrated and the sensation of the beam will be enhanced. 7*40W LED Moving Head Light can achieve circle control and circle flashing from the middle to the periphery. LED Moving Head Light can achieve rainbow effect, which can be individually controlled with different colors for flashing. 7*40W LED Moving Head Light has intelligent temperature control, muting below 40°C, starting heat dissipation above 40°C. It also can achieve automatic temperature adjustmentand whole-process temperature monitoring. LED Moving Head Light can be tilted up to 540 degrees horizontally and 270 degrees vertically and equipped with photoelectric reset and correction. The whole field will be illuminated by the beam and wash effects.
YR-M4007Q Illumination Diagram:
Product Parameters:
| Electrical | Voltage | 100V-240V 50-60Hz | |
| Amperage： | 2.5A | ||
| Power consumption | 350W | ||
| Light source | LED lifespan | 50000 hours | |
| LED | 7pcsX40W Osram | ||
| Color | RGBW 4in1 | ||
| Control channels | standard mode 17CH/ extended mode 38 CH/pattern mode 18CH/ HSI mode 11CH | ||
| DMX512 | √ | ||
| Master/slave | √ | ||
| Network function | Support RDM and DMX softwar upgrade,Artnet,Klingnet,SACN networking protocol optional | ||
| Optical system | LCD colorful Display | 2.0 inch LCD color screen, can set the channel mode (standard/extended/pattern/HSI) horizontal vertical inversion, back screen, signal hint, switch in both Chinese and English, automatic screen off/lasting bright screen, display channel mode,light source temperature, fan speed, record boot time, and times of start,fault inspection, manual control channel data memory, the software version information, restore factory Settings, scan and color correction | |
| Beam angle( scan type) | 9°-44°/0.8s | ||
| Dimmer | 0-100%（16bit） | ||
| CCT | 2800K-8500K | ||
| Zoom: | using highly mute motor; accurate zoom, stable beam without shaking | ||
| X/Y scan | Pan 540°,Tilt:270° | ||
| Strobe | 1-20Hz | ||
| features: | 1.High efficiency cooling system, whole-process temperature monitoring. 2.Automatic temperature adjustment and protection when temperature is too high, no risk of LED lamp damage. 3.Intelligent speed control fan(SUNON FAN), timely display rotation speed. | ||
| Physical | Machine size | 29*22.5*38cm | |
| Machine N.W. | 8.9kg | ||
| Housing | Flame-retardant plastic | ||
| Environment& safety | Store condition | dry and clean place | |
| Running temp. | 0-40°C | ||
| IP rate | IP20 | ||
Feature: | ◎beam angle:9°-44° |
| ◎Intelligent speed control fan (SUNON FAN) | |
| ◎Zoom | |
| ◎Pixel LED control | |
| ◎Support RDM and Artnet (optional) | |
| ◎High efficiency cooling system |
Light Effect:

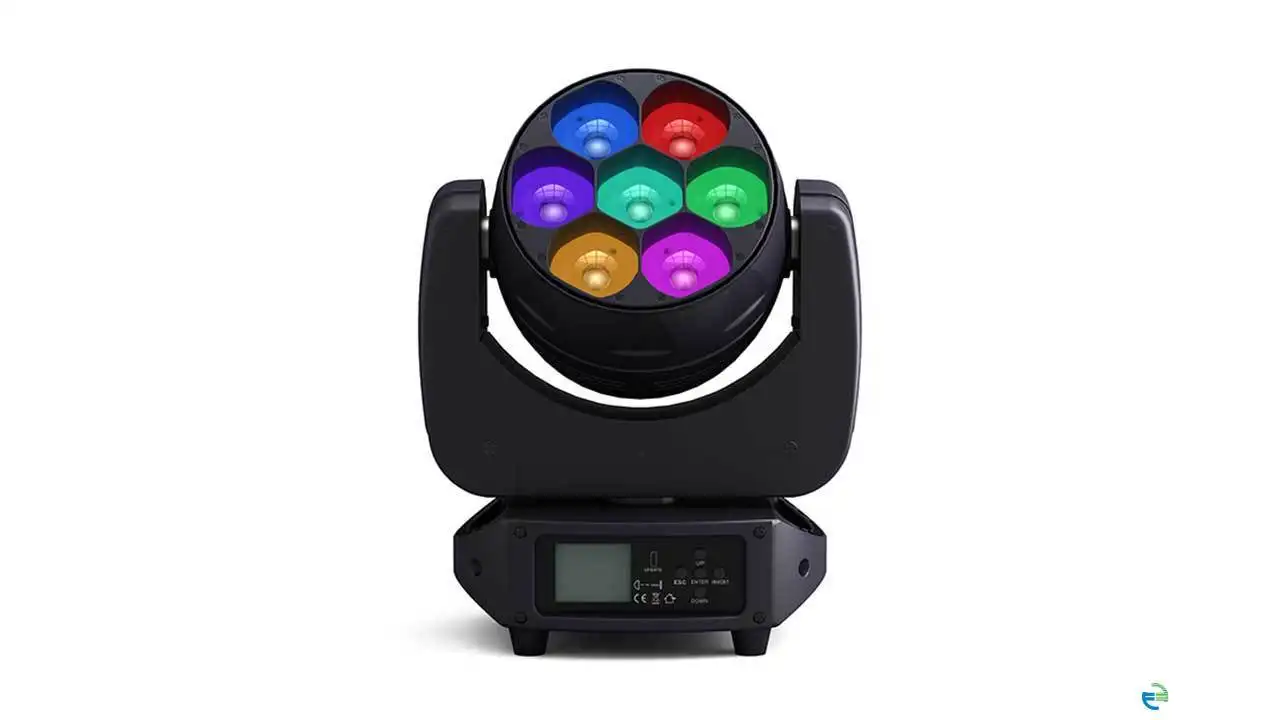

Product Appearance of 7*40W LED Moving Head Beam+Wash:
Size of 7*40W LED Moving Head Beam+Wash:
Yellow River Lighting Workshop:
