New mini led mini moving head wholesale | Yellow River
The most attractive point of the 80W led moving head beam is the brightness, although the power is 80W, its brightness can reach 72000 lux@5 meters, it is with long lifespan LED source and not to be very hot while working.
It has two color wheels, 1 color wheel includes: 11pcs colors + CTO+ 1pc CTB + White which can create semi-color effect, bi-direction flow effect. 1 pcs 6-color wheel which can create a rainbow effect with prism.
For the gobo wheels, it has 9 gobos + 2 different size beam holes+ White open +
Yellow River Best 80W LED Moving head beam Factory Price - Yellow River,More then fifty kinds of goods have been granted“CE”certification.
gobo shake + bi-direction flow effect. The prism is 1 pcs 8 facet prism plus 1pcs 16 facet prism. The beam angle is 0.85 degrees, pan movement is 1.8s, tilt movement is 0.9s, widely used in KTV rooms, bars, ballrooms, or some small events.
The decoration of the living room dining room on the second floor of my family leveled the ground with cement, causing water leakage downstairs, watermark on the mini led mini moving head ceiling downstairs, and the cause of water leakage is temporarily unknown. I suspect it is downstairs. Hello, the reason is upstairs. The bathroom usually uses bright and soft light. the Yellow River lamps and lanterns should be moisture-proof, preferably made of plastic or glass, and the lampshade should also be sealed.Let's talk about the selection experience of various indoor lamps and lanterns:Generally, there are living rooms, bedrooms, kitchens and bathrooms in residential buildings. due to their different functions, the required lamps and lanterns are also different. Like the chandelier, it is also the main lighting equipment in the room. it is a lamp often used in various places such as home, office, entertainment, etc., and the ceiling lamp is very helpful for indoor decoration, so people love it.Because of the high levels of heat produced by Yellow River the aluminum PCB board that contains a thin layer of dielectric that allows quicker heat dissipation is attached to printed boards.
Illumination diagram:
Product Parameters:
| Electrical | Voltage | 100V ~240V,50-60HZ | |
| Power consumption | 230W | ||
| Light Source | LED | 80W White LED @5000lm/72000lux@5m | |
| LED lifespan | 50000 hours | ||
| Control Mode | DMX512 | √ | |
| Master/slave | √ | ||
| Auto | √ | ||
| RDM protocol | √ | ||
| Channel | standard mode 16CH/ extended mode 20 CH | ||
| Optical System | Strobe | 1~30t/s | |
| CCT | 9800K | ||
| Color wheel | 2 color wheels, 1color wheel includes: 11pcs color plates + CTO+ 1pc CTB plate + White open,semi-color effect, bi-direction flow effect. 1 pcs 6-color plate which can create a rainbow effect with prism. | ||
| Fixed Gobo Wheel | 9 gobos + 2 different size beam holes+ White open+gobo shake + bi-direction flow effect | ||
| Scan | Scan:3-phase motor, Pan 540°/1.8s, Tilt 270°/0.9s, with photoelectric auto-reset and correction | ||
| Prism | 1 pc 8-facet prism 1 pc 16-facet prism, rotate independently, stackable to be 24 facets, bilateral rotation, bi-direction flow effect. | ||
| Angle | Angle: beam 0.85°; with frost | ||
| Display | 1.4 -inch LCD color screen, can set the channel mode (standard model, extended mode), horizontal vertical inversion, screen reversible, signal hint, switchable in both Chinese and English, the automatic screen turn off / long last for display power on, display the channel number, source temperature, fan speed, record the power-on time, power on times, fault prosecution, manual control channel data memory, the software version information, restore factory Settings, the scanning, and the effect correction result. | ||
| Cooling system | Cooling system: intelligent-temperature-control fan, fan stop when under 40℃, fan goes faster when over 40℃, every cooling board is made with mold, so it's accurate, efficient ventilation and noiseless. | ||
| safety protection | the power will be cut off automatically when the fixture is overheating or with a system error | ||
| Light source opening mode | support instant blackout and lights on | ||
| Light body | 1pc LCD display, 4pc buttons power interface:1 in;1 out power; signal interface: 3 pin + network/ 3pin+5 pin | ||
| Featured Effect | 1. High-efficiency cooling system, whole-process temperature monitoring. 2.2 color wheels, 1 pc 8-facet prism +1 pc 16-facet prismsemi-color effect, bi-direction flow effect. 3. intelligent temperature-control fan, timely display rotation speed. | ||
| Machine N.W | 11.4KG | ||
| Machine Size | 298*231*473mm | ||
| Environment& safety | Level of Protection | IP20 | |
| Stock | Clean and dry place | ||
| Running temp. | -10°C~40°C | ||
Color Wheel & Gobo Wheel：
Light Effect:

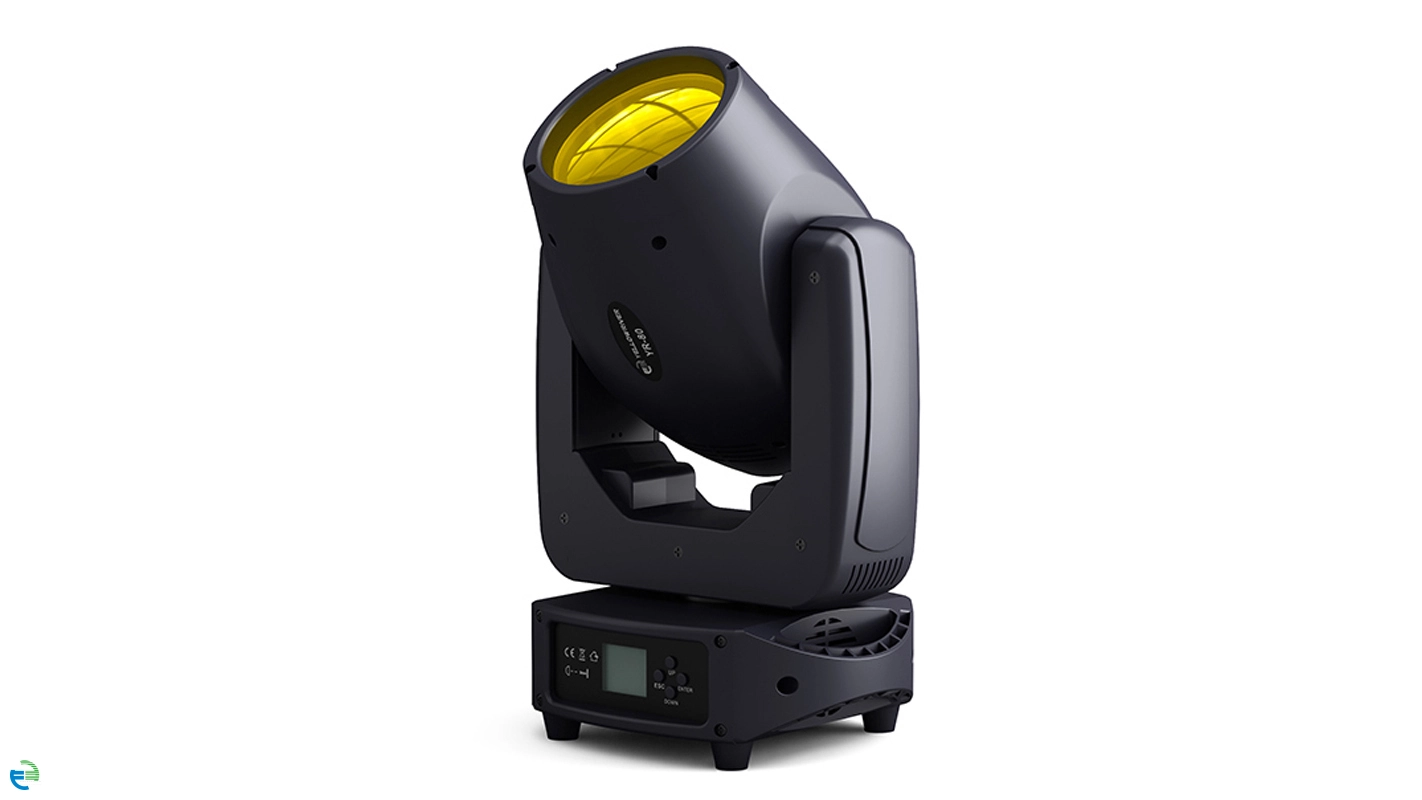

Product Appearance:
Workshop：
