Yellow River Lighting Since 1999, professional lighting manufacture focusing on Moving head light and Led light!
Popular par lighting for stage factory | Yellow River
It is 8pcs *3W mini bar light with RGB 3 in 1 led , we also can do another version with rainbow color effect by using this same case. It is very compact ,only 42cm long and it is not heavy,only 0.75kg. The beam angle for this one is 110 degree reflector.We also can do 3W 9pcs RGB single color, cool white color and UV color.By the way, it can be connected one by one to meet your requests on length.
Size specification of chandelier. The size of the par lighting for stage chandelier is 60 CM in diameter, 80 CM in diameter, 100CM in diameter and larger. it depends on your needs. The selection of LED BAR Light ceiling lamps is determined by the area and height of the living room. if the area is only more than ten square meters and the shape of the living room is irregular, it is best to choose ceiling lamps. if the living room is high and large, the chandelier can be selected according to the owner's age, culture and hobbies, the views and standards of comfort and warmth, and the requirements for lighting style. These questions are some basic par lighting for stage knowledge. When the customer asks you, you can answer the question correctly, the customer will feel that you are very professional and will recognize you for the company, naturally.The encapsulation of Yellow River par lighting for stage is user-friendly, protective and optical, which has good light extraction efficiency and heat dissipation.

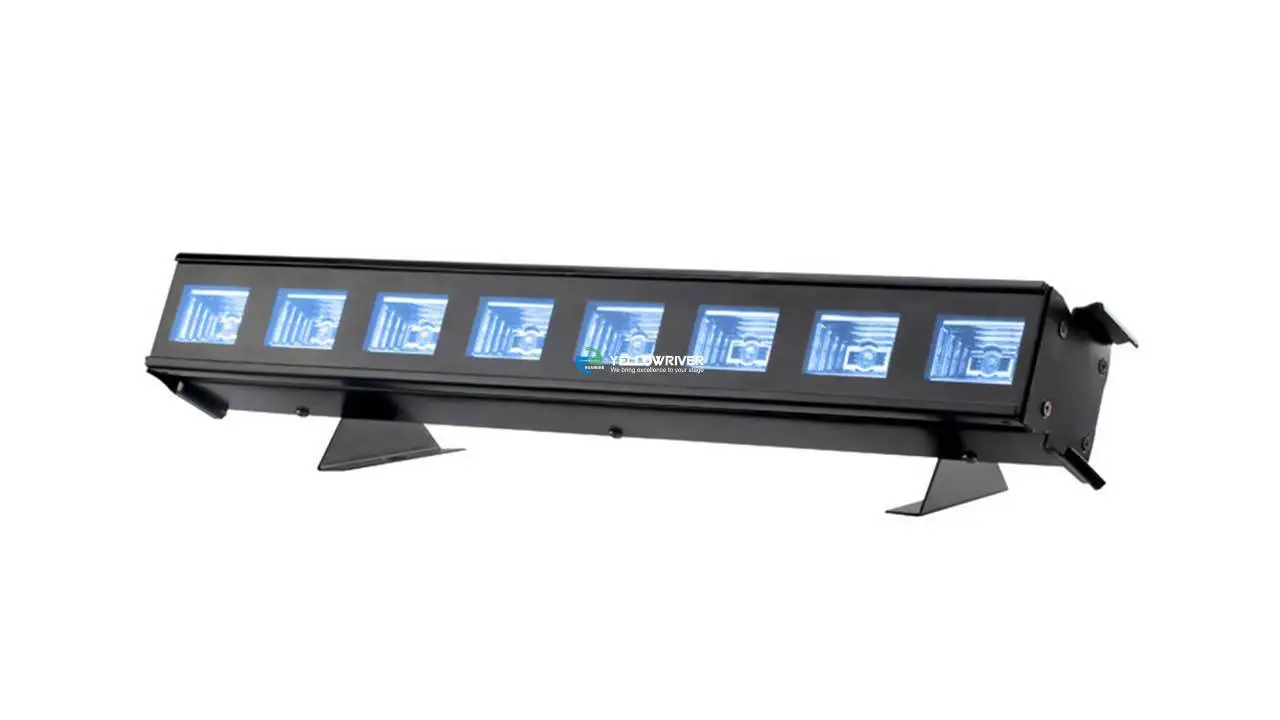

MINI LED BAR 8x3W is a LED Wall Wash Light, which uses 8 pieces of 3W three-color LED lamps. Its voltage reaches AC100~240V 50/60HZ and its power reaches 25W. Three-color LED lamps can meet the customer's demand for red, green and blue color effects. Its mini appearance takes up less space and makes it easier to place and install. Connectability is the unique feature of this lamp. The lamp can be connected in multiple ways to achieve a wider range of wash effects. With its wide beam angle of 110°, this wash light is also ideal for use in bars and KTV rooms. The case of the lamp is made by an engineered aluminum profile and the top of the bead is protected by tempered glass, which can protect this lamp from damage caused by violent collision. MINI LED BAR 8x3W can achieve stroboscopic effect and has five stroboscopic modes. Its strobe frequency reaches 0-20 HZ. It has two control channels 4CH and 9CH for users to switch. Its powerful wash effect can meet the bar, banquet hall and other different places to use.
llumination diagram:
Product Parameters:
| Electrical | voltage | 110V ~ 240V | |
| power consumption | 25W | ||
| Light source | LED | 8x3W(RGB 3in 1) | |
| Color | RGB 3in 1 | ||
| Control mode | DMX512 | 9/4ch(switchable) | |
| Master/slave | √ | ||
| Manual control | √ | ||
| Sound Active | √ | ||
| auto | √ | ||
| Optical system | Beam Angle | 110° reflector | |
| Dimmer | 0~100% line dimmer | ||
| Strobe | 0-20Hz | ||
| Physical | Machine size | see following diagrammatic drawing | |
| Machine weight | 0.75kg | ||
| Environment& safty | Stock | dry and clean place | |
| Running temp. | under 40°C | ||
| 9CH MODE | 4CH MODE | ||
| CH 1 | DIMMER | CH 1 | DIMMER |
| CH 2 | R DIMMER | CH 2 | R DIMMER |
| CH 3 | G DIMMER | CH 3 | G DIMMER |
| CH 4 | B DIMMER | CH 4 | B DIMMER |
| CH 5 | STROBE | ||
| CH 6 | BUILT IN-COLOR | ||
| CH 7 | AUTO/Sound Active | ||
| CH 8 | AUTO SPEED | ||
| CH 9 | DIMMER MODE | ||
Light Effect:
Product Appearance And Size:
Work Shop:
FAQ
1.How to make sure your quality?
We have very clear and strict testing procedures ,and we also have advaced testing equipment.The most important thing is that we use all good quality materials and never tried low quality raw materials.
2.Can you do ODM ,OEM?
Yes ,sure.
3.Is it OK to print my logo on stage light product?
Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Advantages
1. A stage lighting enterprise that gathers research, production, marketing, and after-sales as integral whole.
2.Top ten Brand enterprises of Stage lighting in China, national intellectual property standard enterprise, Guangdong Province contract abiding enterprise, China Quality credit AAA+ enterprise, etc.
3.More then fifty kinds of goods have been granted“CE” certification.
4.Our goods are popular in Europe and America, Southeast Asia, Russia., etc., more then 60 countries and regions
