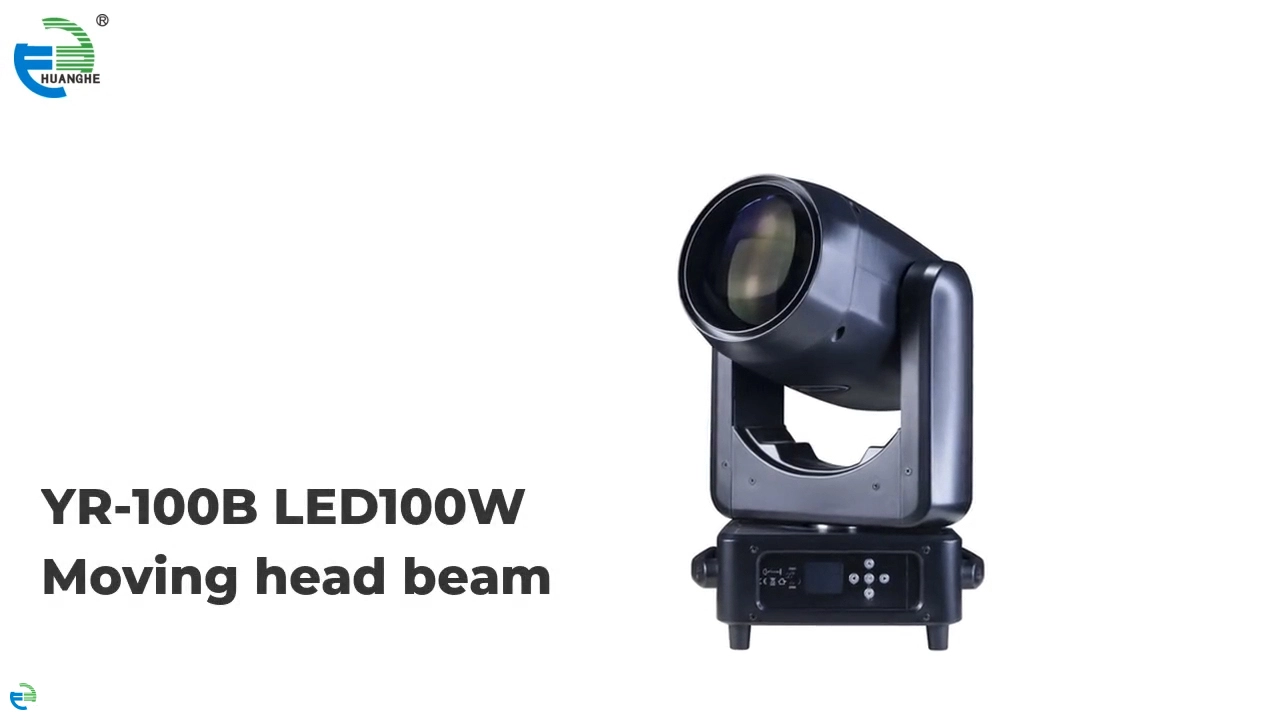

Quality mini led mini moving head bulk production | Yellow River
100W LED light source , This item is considered to be used in touring concert, big events, pageants and so on. High level qualification ensures perfect cooling system, which ensure longer life span of the bulb. Moreover ,this light has RDM function which is convenient to set address code through big and professtional controller.
Feature:
◎ Improved cooling system
◎ 1 color wheel: 14 colors + white, with double rainbow effect
◎ 1 pc 16 facet prism + 1 pc 8+16+24 three-layer honeycomb prism, they can be overlapped to get 24+32+40 three-layer prism effect, independently rotable.
◎ Pan 540° 1.7s /cycle, tilt:270° 0.8s/cycle
◎ LCD display , Beam Angel: 0.8 degrees
What kind of mini led mini moving head ceiling lamp with style in living room ceiling lamp looks good. The ceiling style of the living room does not affect the configuration of the light belt. This shows that the problem is not from the ballast. Generally, the wires buried in the floor or in the junction box above the LED Moving Head lights have leakage. After going to bed at night, try to turn off the main gate and see if there is any fever the next day. If the switch is still turned off, it is not a problem with your home line; otherwise, it will be carefully checked. I am in charge of selling outdoor advertising lighting fixtures to advertising companies over the phone (with outdoor cannons, large billboards on the floor... then professional salespeople will make a survey of their customer mini led mini moving head products and company size and development form.Made of premium metal material, the product features excellent shock resistance so as to allow it to work even in bad conditions.
100W LED light source , This item is considered to be used in touring concert, big events, pageants and so on. High level qualification ensures perfect cooling system, which ensure longer life span of the bulb. Moreover ,this light has RDM function which is convenient to set address code through big and professtional controller. The beam angle of optical lens is 0.8°, beam is sharp and strong. And electric strobe 1~30t/s,Support pulse strobe + effect strobe + standard strobe. Support DMX512/Manual/Master&Slave Control mode. And it has cooling System: 2pcs big power Fan.
Color: 1 pcs color wheel: 14 colors + white, with semi-color effect
Color: 1pcs 7 colors rainbow glass
Gobo: 1 metal gobo wheel: 13 gobos + white, with shaking, flowing effect
Prism: 1pc 16 facet prism+1pcs 8+16+24 three layers honeycomb prism, overlapped into 24+32+40 three layer prism, with independent rotation effect
Frost: 1 independent frost filter.
About scanning:pan movement 540 degrees 1.7S/cycle, tilt movement 270 degrees 0.8S/cycle, three-phase motor, double-precision reset with photoelectric reset + Hall correction, making the positioning more accurate, with automatic error correction function,light can come back to original movement position automatically. What’s more, display function with LCD screen, reversible screen, Chinese-English switchable, it can display the working time of lighting, fault detection and control, and can be restored to factory settings
| Electrical | Voltage | AC100V~240V, 50/60hz | |
| Power consumption | 230W | ||
| Light Source | Lamp | 100W led | |
| Color temperature | 9000K | ||
| Control Mode | DMX512 | 16CH | |
| Master/slave | √ | ||
| Manual | √ | ||
| RDM | √ | ||
| Optical System | Color wheel： | 1 color wheel: 14 colors + white, with double rainbow effect | |
| Gobo wheel | 1 metal gobo wheel: 13 gobos + white, with shake & flow effect | ||
| Prism Wheel1 | 1 pc 16 facet prism + 1 pc 8+16+24 three-layer honeycomb prism, they can be overlapped to get 24+32+40 three-layer prism effect, independently rotable. | ||
| Atomization | 1 independent atomizing glass. | ||
| Strobe | 1-30Hz | ||
| Dimmer | Linear Dimming | ||
| Beam angle | 0.8° | ||
| Featured Effect | 1 color wheel: 14 colors + white, with double rainbow effect 1 metal gobo wheel: 13 gobos + white, with shake & flow effect 1 pc 16 facet prism + 1 pc 8+16+24 three-layer honeycomb prism, they can be overlapped to get 24+32+40 three-layer prism effect, independently rotable. 1 independent atomizing glass. | ||
| LCD Screen Display | LCD screen, the screen can be reversed, Chinese & English switchable, it can display working time for the bright led, with fault detection and control function, and factory settings can be restored. | ||
| Satety Protection | automatically cut off the power when the machine overheats or system fails | ||
| Machine W. Size | 29.5*20.5*50.5cm | ||
| Net Weight | 12KG | ||
