Yellow River Lighting Since 1999, professional lighting manufacture focusing on Moving head light and Led light!
Quality mini led moving head light suppliers | Yellow River

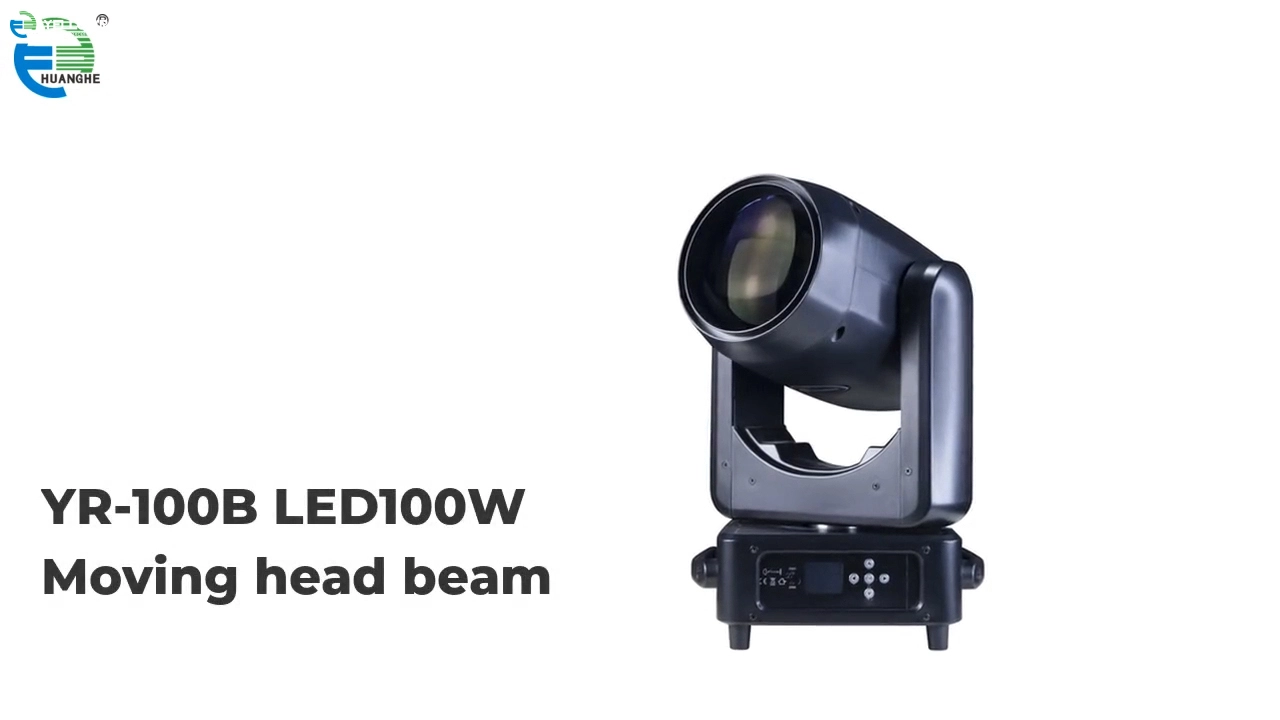

100W LED light source , This item is considered to be used in touring concert, big events, pageants and so on. High level qualification ensures perfect cooling system, which ensure longer life span of the bulb. Moreover ,this light has RDM function which is convenient to set address code through big and professtional controller.
Feature:
◎ Improved cooling system
◎ 1 color wheel: 14 colors + white, with double rainbow effect
◎ 1 pc 16 facet prism + 1 pc 8+16+24 three-layer honeycomb prism, they can be overlapped to get 24+32+40 three-layer prism effect, independently rotable.
◎ Pan 540° 1.7s /cycle, tilt:270° 0.8s/cycle
◎ LCD display , Beam Angel: 0.8 degrees
The decoration of the living room dining room on the second floor of my family leveled the ground with cement, causing water leakage downstairs, watermark on the mini led moving head light ceiling downstairs, and the cause of water leakage is temporarily unknown. I suspect it is downstairs. Hello, the reason is upstairs. Then look for the person who makes the plaster line, use the flat line in the middle of the ceiling to make a diamond-shaped flower, and make the 8-cent Yangxian strip on the edge. The diamond-shaped mosaic is one square in 200 yuan, and the Yangxian is one meter in 10 yuan. It is easy to penetrate downstairs. we Yellow River lighting and audio limited. have encountered this situation before. there is no way to compensate or repair the downstairs.No need to worry. I have also encountered it. I can't be responsible for compensation or maintenance downstairs.The product performs well at the cold temperature - its performance increases as operating temperatures drop. It does not require high voltage to start.
100W LED light source , This item is considered to be used in touring concert, big events, pageants and so on. High level qualification ensures perfect cooling system, which ensure longer life span of the bulb. Moreover ,this light has RDM function which is convenient to set address code through big and professtional controller. The beam angle of optical lens is 0.8°, beam is sharp and strong. And electric strobe 1~30t/s,Support pulse strobe + effect strobe + standard strobe. Support DMX512/Manual/Master&Slave Control mode. And it has cooling System: 2pcs big power Fan.
Color: 1 pcs color wheel: 14 colors + white, with semi-color effect
Color: 1pcs 7 colors rainbow glass
Gobo: 1 metal gobo wheel: 13 gobos + white, with shaking, flowing effect
Prism: 1pc 16 facet prism+1pcs 8+16+24 three layers honeycomb prism, overlapped into 24+32+40 three layer prism, with independent rotation effect
Frost: 1 independent frost filter.
About scanning:pan movement 540 degrees 1.7S/cycle, tilt movement 270 degrees 0.8S/cycle, three-phase motor, double-precision reset with photoelectric reset + Hall correction, making the positioning more accurate, with automatic error correction function,light can come back to original movement position automatically. What’s more, display function with LCD screen, reversible screen, Chinese-English switchable, it can display the working time of lighting, fault detection and control, and can be restored to factory settings
| Electrical | Voltage | AC100V~240V, 50/60hz | |
| Power consumption | 230W | ||
| Light Source | Lamp | 100W led | |
| Color temperature | 9000K | ||
| Control Mode | DMX512 | 16CH | |
| Master/slave | √ | ||
| Manual | √ | ||
| RDM | √ | ||
| Optical System | Color wheel： | 1 color wheel: 14 colors + white, with double rainbow effect | |
| Gobo wheel | 1 metal gobo wheel: 13 gobos + white, with shake & flow effect | ||
| Prism Wheel1 | 1 pc 16 facet prism + 1 pc 8+16+24 three-layer honeycomb prism, they can be overlapped to get 24+32+40 three-layer prism effect, independently rotable. | ||
| Atomization | 1 independent atomizing glass. | ||
| Strobe | 1-30Hz | ||
| Dimmer | Linear Dimming | ||
| Beam angle | 0.8° | ||
| Featured Effect | 1 color wheel: 14 colors + white, with double rainbow effect 1 metal gobo wheel: 13 gobos + white, with shake & flow effect 1 pc 16 facet prism + 1 pc 8+16+24 three-layer honeycomb prism, they can be overlapped to get 24+32+40 three-layer prism effect, independently rotable. 1 independent atomizing glass. | ||
| LCD Screen Display | LCD screen, the screen can be reversed, Chinese & English switchable, it can display working time for the bright led, with fault detection and control function, and factory settings can be restored. | ||
| Satety Protection | automatically cut off the power when the machine overheats or system fails | ||
| Machine W. Size | 29.5*20.5*50.5cm | ||
| Net Weight | 12KG | ||
Work Shop:
FAQ
1.How to make sure your quality?
We have very clear and strict testing procedures, and we also have advaced testing equipment. The most important thing is that we use all good quality materials and never tried low quality raw materials.
2.Can you do ODM ,OEM?
Yes ,sure.
3.Is it OK to print my logo on stage light product?
Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Advantages
1. A stage lighting enterprise that gathers research, production, marketing, and after-sales as integral whole.
2.Top ten Brand enterprises of Stage lighting in China, national intellectual property standard enterprise, Guangdong Province contract abiding enterprise, China Quality credit AAA+ enterprise, etc.
3.More then fifty kinds of goods have been granted“CE” certification.
4.Our goods are popular in Europe and America, Southeast Asia, Russia., etc., more than 60 countries and regions.
About Yellow River
Yellow River lighting -- focusing on stage lighting for 21 years, it is a national high-tech enterprise which provides integrated service of R&D, design, production, marketing and after sales service.Top ten Brand enterprises of Stage lighting in China, national intellectual property standard enterprise, Guangdong Province contract abiding enterprise, China Quality credit AAA+ enterprise, etc. The company has passed ISO9001 quality management system, occupational health and safety management system, environmental management system and other certifications.The products have passed the CE RoHS certification and obtained dozens of patents. More then fifty kinds of goods have been granted “CE” certification. Established in 1999, the staff in Yellow River always take the responsibility “Let the world dance” upon ourself.The senior management team is mostly composed of 6-21 years of senior industry personnel. At present, the company has three R & D centers and three brands: Yellow River Lighting, Yagelai and Yagesi. We have seven offices in China and We have more than 2000 global brand agents and project contractors; Is the preferred manufacturers for your culture and art center, tourism performance, multi-function hall, hotel banquet hall, auditorium, night tour, urban landscape lighting and other projects.
