How to enter the design of moving head par light lamps? You are a major in landscape design. if you want to do lighting design, it can be said that it is a small use. if you have art skills, it will be easier to get started. the threshold for lighting design is relatively low, as long as you learn to use Autocad and mechanical drawing, you can go to the lighting factory to start with the draftsman. The average family will use a ceiling lamp as the main lamp in each bedroom, and then use one in the toilet and kitchen. in this way, the usage rate of LED BAR Light ceiling lamps is relatively high.Ceiling Lamp is installed inside the room, because the upper part of the lamp is flat, it is installed close to the roof, like adsorption on the roof, so it is called ceiling lamp. There are many kinds of lighting in the restaurant, and the lower and bright Yellow River chandeliers and ceiling inlaid lamps should be hung on the dining table ..The kitchen and bathroom have large water vapor and more dust and oil, so lamps with simple appearance and easy cleaning should be adopted. generally, ceiling lamps should be decorated.It features a high-efficient energy transformation. Only 10% power consumed by an incandescent bulb is transformed to luminous energy, while over 90% power consumed by the product is transformed to luminous energy.
The stage PAR light with ring effect is designed for stages and theatres, it features a compact yet powerful LED lamp enclosed within a sleek circular frame. With its ability to produce vibrant colors and generate stunning visual effects, the stage par light illuminates any performance space with an unparalleled brilliance. The added ring effect further adds depth and dimension to the lighting design, allowing for captivating illusions and mesmerizing scenes on stage. Its versatility knows no bounds, as it can be easily controlled through DMX or operated in standalone mode using its user-friendly interface. Whether used individually or seamlessly synchronized with other lights, this remarkable stage par light creates an immersive ambiance that captivates audiences and elevates any live production to new heights of artistry.
Product Parameters
Electrical | voltage | 110V ~ 240V | ||
power consumption | 150W | |||
Light source | LED | 10W*12pcs | ||
Color | 12x10W(4 in 1RGBW )+96*0.2W(3 in 1RGB) | |||
Control mode | DMX512 | 5/9/12/56ch | ||
Master/slave | √ | |||
Manual control | √ | |||
Sound Active | √ | |||
auto | √ | |||
Optical system | Beam Angle | 25° | ||
Dimmer | 0~100% line dimmer | |||
Strobe | 0-20Hz | |||
Noise | Noise mode | Intelligent temperature, active heat dissipation,silent below 40 degrees, fan begin to work when temperature above 40 degrees. maximum noise is 43.0dBA from 1 meter away (close to ambient noise),you can choose to turn off fan and use silent mode without any noise , but power will reduce according to temperature to keep led lamp safe when temperature above 80 degree. | ||
Physical | Machine size | 28.2x13.9x25.3cm(excluding hook) | ||
Machine weight | 3kg | |||
Environment& safty | Stock | dry and clean place | ||
Running temp. | 40°C Max |
CHANNEL CHART | CH5 MODE | CH9 MODE | CH12 MODE | CH56 MODE |
CH 1 | Dimmer | Ring and coloring options | Ring and coloring options | Ring and coloring options |
CH 2 | RED | Dimmer | Dimmer | Dimmer |
CH 3 | GREEN | Strobe | Strobe | RED Wash |
CH 4 | BLUE | RED | RED Wash | GREEN Wash |
CH 5 | WHITE | GREEN | GREEN Wash | BLUE Wash |
CH 6 | BLUE | BLUE Wash | WHITE Wash | |
CH 7 | WHITE | WHITE Wash | Ring Section 1 RED | |
CH 8 | Static Color mixing + Auto | RED Ring | Ring Section1 GREEN | |
CH 9 | GREEN Ring | Ring Section1 BLUE | ||
CH 10 | BLUE Ring | ....... | ||
CH 11 | Static Color mixing + Auto | Ring Section16 RED | ||
CH 12 | Auto Speed | Ring Section16 GREEN | ||
Ring Section16 BLUE | ||||
Static Color mixing + Auto | ||||
Auto Speed |

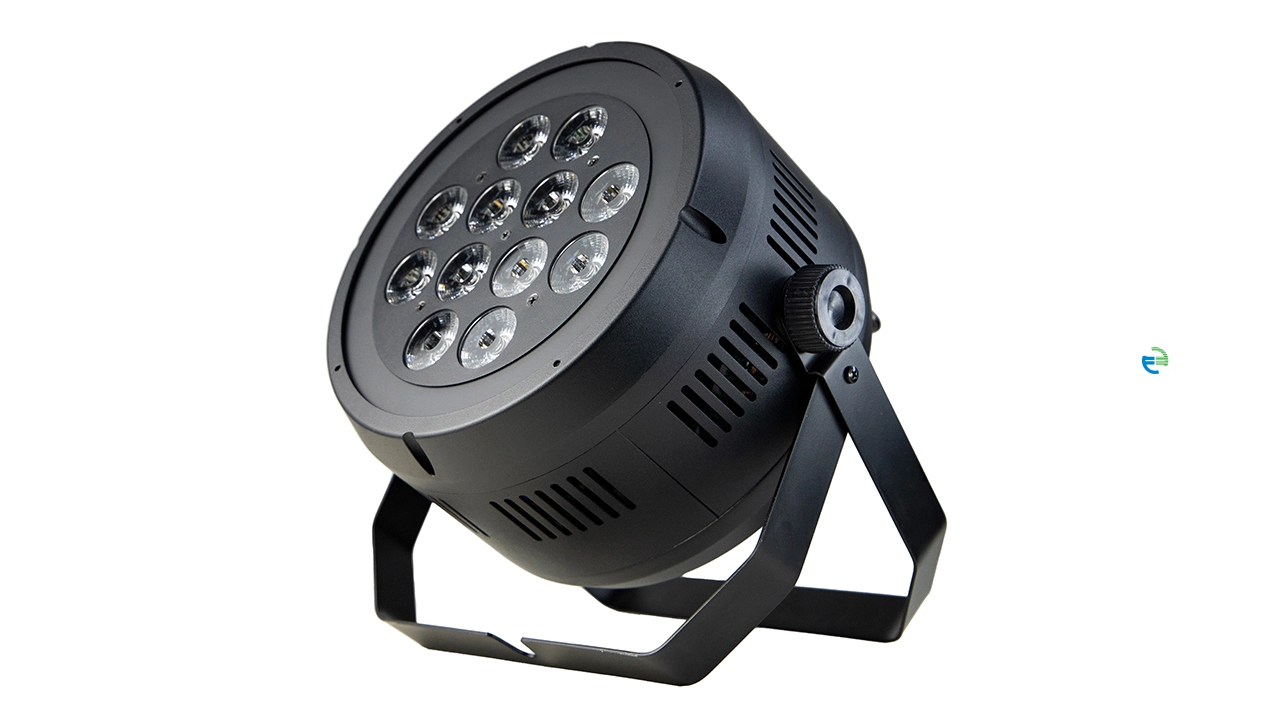

YR-N12A is a LED Indoor Par Light WITH RING EFFECT. The Light sources of its are 12pcs x10W(4-in-1 RGBW) and 96pcs x0.2W(3-in-1 RGB) in the ring , Light source life up to 50,000 hours. The control signal including DMX512(Digital MultipleX 512) and RDM, in line with the international standard light control transmission protocol, support console set address code, support DMX interface upgrade software. And it has different operation mode: Console, manual, master/slave, optional WIFI+ mobile APP control. What’s more, the fan is silent when it is turned off below 40 degrees, and the fan starts to rotate when it is above 40 degrees. Operating voltage of YR-N12A is AC100V-240V (50/60HZ),Rated total power is 150W, and Power factor is 0.56. Ambient temperature should lower than 40 ° C. The Case material of YR-N12A are Engineering aluminum alloy (high temperature resistance), fine sand paint (high-end wear-resistant). And it has Display that is LED highlighting red digital tube +4 mechanical buttons, supporting 30 seconds off screen and continuous bright screen dual mode. Its Handles are Limit double handle, flat anti-slip. The power interface are twisted crisp head, one blue (in) and one white (out). Signal interface: signal socket 3 core male + female, can plug DMX512 wireless signal receiver. And the IP rate is IP20.
Inner Carton Packing | Weight (1 unit) | 4KG | ||
size (1 unit) | 29.5*29.5*32.5CM | |||
Master Carton Pcking | Weight (4 unit) | 16.8KG | ||
size (4 unit) | 60*60*32.5CM | |||
Accessary | 1 signal cable & 1 power cable |
