Yellow River Lighting Since 1999, professional lighting manufacture focusing on Moving head light and Led light!
Yellow River | High-quality moving head stage light for business
For market demand we released thisLED Zoom Moving head with the latest technology. Zoom angle:9°-44°,the pixel LED control and overall LED control present more pattens to meet the customer application. Especially the smooth motor was used , it can rotate fast with no noise. sharpy beam shooted out from the ultra led 40W(7 QUAD) bring the audience stunning feeling that never experienced from other mini beams. High efficiency cooling system and Intelligent speed control fan enables the unit working safely. and environmentally friendly. we see it a new increasing point in the bar, club and disco market.
Do you have any feng shui taboos for the installation of all copper moving head stage light chandeliers in the living room? According to Chinese tradition, home feng shui is often an important topic that people care about. if the whole copper chandelier is not installed correctly, there will even be a risk of breaking money. The lighting of the restaurant must be softer in order to increase the warm atmosphere of the meal and strengthen the emotional communication between family members. The lighting of the restaurant should be based on incandescent lamps, and use Moving Head Beam light switches that can adjust the brightness of the lights to keep the lights flexible. It can be tested by disconnecting each switch in turn in the total unpacking. if it is normal to disconnect the switch, it is that the loop controlled by this switch has a problem.It's rectifier heating! If you don't trust, you can change the rectifier! Is your home a Yellow River chandelier or ceiling lamp! Crystal lights?It produces no noise when operating. Thanks to its good electromagnetic compatibility(EMC), the product is free of the magnetic influence of other electronic products.
7*40W LED Moving Head Light is one of the products belonging to the Moving Head Beam+Wash Series, which has beam and wash 2 in 1 effects. LED Moving Head Light uses 7 pieces of 40W RGBW 4 in 1 OSRAM. Its voltage reaches AC100~240V 50/60HZ and its power reaches 350W. According to the user's requirements for different light and beam sensation, 7*40W LED Moving Head Light can provide user to choose from 9 degrees to 44 degrees of beam Angle. 7*40W LED Moving Head Light has powerful color mixing system. It can achieve pixel control and a single LED light flashing. The light will be more concentrated and the sensation of the beam will be enhanced. 7*40W LED Moving Head Light can achieve circle control and circle flashing from the middle to the periphery. LED Moving Head Light can achieve rainbow effect, which can be individually controlled with different colors for flashing. 7*40W LED Moving Head Light has intelligent temperature control, muting below 40°C, starting heat dissipation above 40°C. It also can achieve automatic temperature adjustmentand whole-process temperature monitoring. LED Moving Head Light can be tilted up to 540 degrees horizontally and 270 degrees vertically and equipped with photoelectric reset and correction. The whole field will be illuminated by the beam and wash effects.
YR-M4007Q Illumination Diagram:
Product Parameters:
| Electrical | Voltage | 100V-240V 50-60Hz | |
| Amperage： | 2.5A | ||
| Power consumption | 350W | ||
| Light source | LED lifespan | 50000 hours | |
| LED | 7pcsX40W Osram | ||
| Color | RGBW 4in1 | ||
| Control channels | standard mode 17CH/ extended mode 38 CH/pattern mode 18CH/ HSI mode 11CH | ||
| DMX512 | √ | ||
| Master/slave | √ | ||
| Network function | Support RDM and DMX softwar upgrade,Artnet,Klingnet,SACN networking protocol optional | ||
| Optical system | LCD colorful Display | 2.0 inch LCD color screen, can set the channel mode (standard/extended/pattern/HSI) horizontal vertical inversion, back screen, signal hint, switch in both Chinese and English, automatic screen off/lasting bright screen, display channel mode,light source temperature, fan speed, record boot time, and times of start,fault inspection, manual control channel data memory, the software version information, restore factory Settings, scan and color correction | |
| Beam angle( scan type) | 9°-44°/0.8s | ||
| Dimmer | 0-100%（16bit） | ||
| CCT | 2800K-8500K | ||
| Zoom: | using highly mute motor; accurate zoom, stable beam without shaking | ||
| X/Y scan | Pan 540°,Tilt:270° | ||
| Strobe | 1-20Hz | ||
| features: | 1.High efficiency cooling system, whole-process temperature monitoring. 2.Automatic temperature adjustment and protection when temperature is too high, no risk of LED lamp damage. 3.Intelligent speed control fan(SUNON FAN), timely display rotation speed. | ||
| Physical | Machine size | 29*22.5*38cm | |
| Machine N.W. | 8.9kg | ||
| Housing | Flame-retardant plastic | ||
| Environment& safety | Store condition | dry and clean place | |
| Running temp. | 0-40°C | ||
| IP rate | IP20 | ||
Feature: | ◎beam angle:9°-44° |
| ◎Intelligent speed control fan (SUNON FAN) | |
| ◎Zoom | |
| ◎Pixel LED control | |
| ◎Support RDM and Artnet (optional) | |
| ◎High efficiency cooling system |
Light Effect:

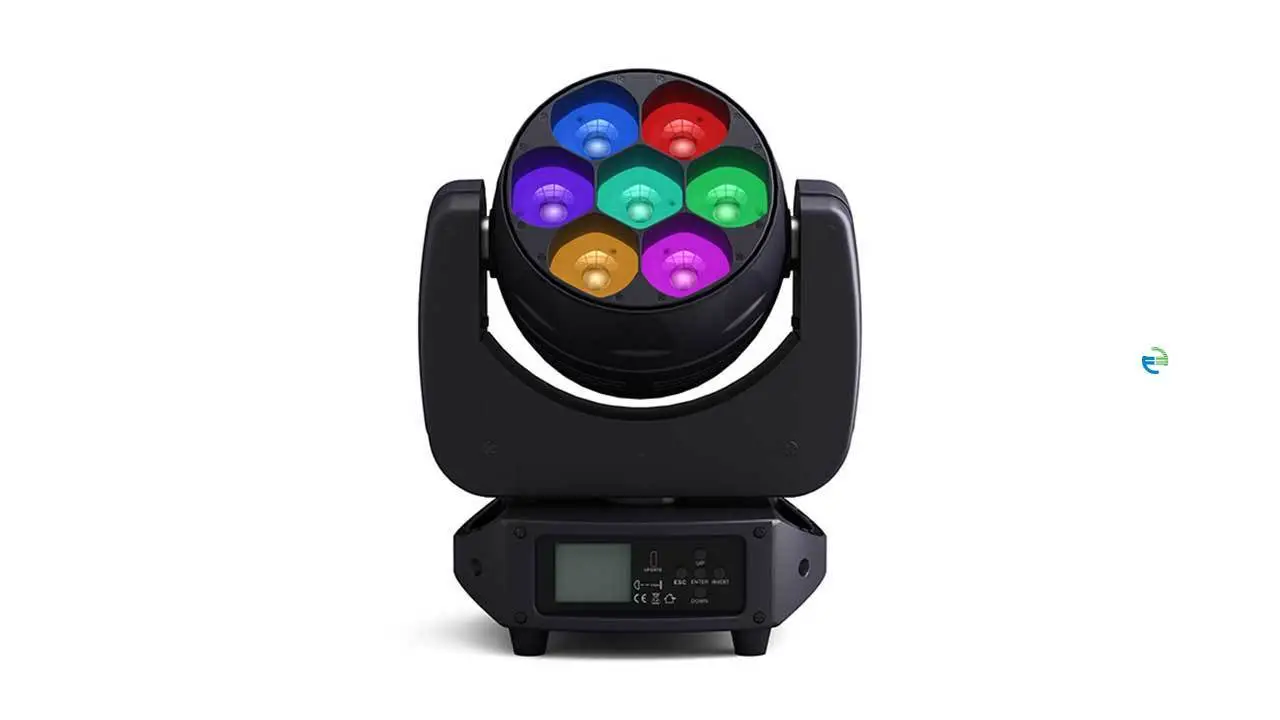

Product Appearance of 7*40W LED Moving Head Beam+Wash:
Size of 7*40W LED Moving Head Beam+Wash:
Yellow River Lighting Workshop:
FAQ
1.Are you a factory or trading company?
We are a factory.
2.Can I pay T/T ,Paypal and Western Union?
Yes, of course.
3.How to make sure your quality?
We have very clear and strict testing procedures ,and we also have advaced testing equipment.The most important thing is that we use all good quality materials and never tried low quality raw materials.
Advantages
1.Top ten Brand enterprises of Stage lighting in China, national intellectual property standard enterprise, Guangdong Province contract abiding enterprise, China Quality credit AAA+ enterprise, etc.
2.We has seven offices in China and We have more than 2000 global brand agents and project contractors.
3.The products have passed the CE RoHS certification and obtained dozens of patents.
4.Yellow River lighting established in 1999,focusing on stage lighting for 21 years.
About Yellow River
Yellow River lighting -- focusing on stage lighting for 21 years, it is a national high-tech enterprise which provides integrated service of R&D, design, production, marketing and after sales service.Top ten Brand enterprises of Stage lighting in China, national intellectual property standard enterprise, Guangdong Province contract abiding enterprise, China Quality credit AAA+ enterprise, etc. The company has passed ISO9001 quality management system, occupational health and safety management system, environmental management system and other certifications.The products have passed the CE RoHS certification and obtained dozens of patents. More then fifty kinds of goods have been granted “CE” certification. Established in 1999, the staff in Yellow River always take the responsibility “Let the world dance” upon ourself.The senior management team is mostly composed of 6-21 years of senior industry personnel. At present, the company has three R & D centers and three brands: Yellow River Lighting, Yagelai and Yagesi. We have seven offices in China and We have more than 2000 global brand agents and project contractors; Is the preferred manufacturers for your culture and art center, tourism performance, multi-function hall, hotel banquet hall, auditorium, night tour, urban landscape lighting and other projects.
