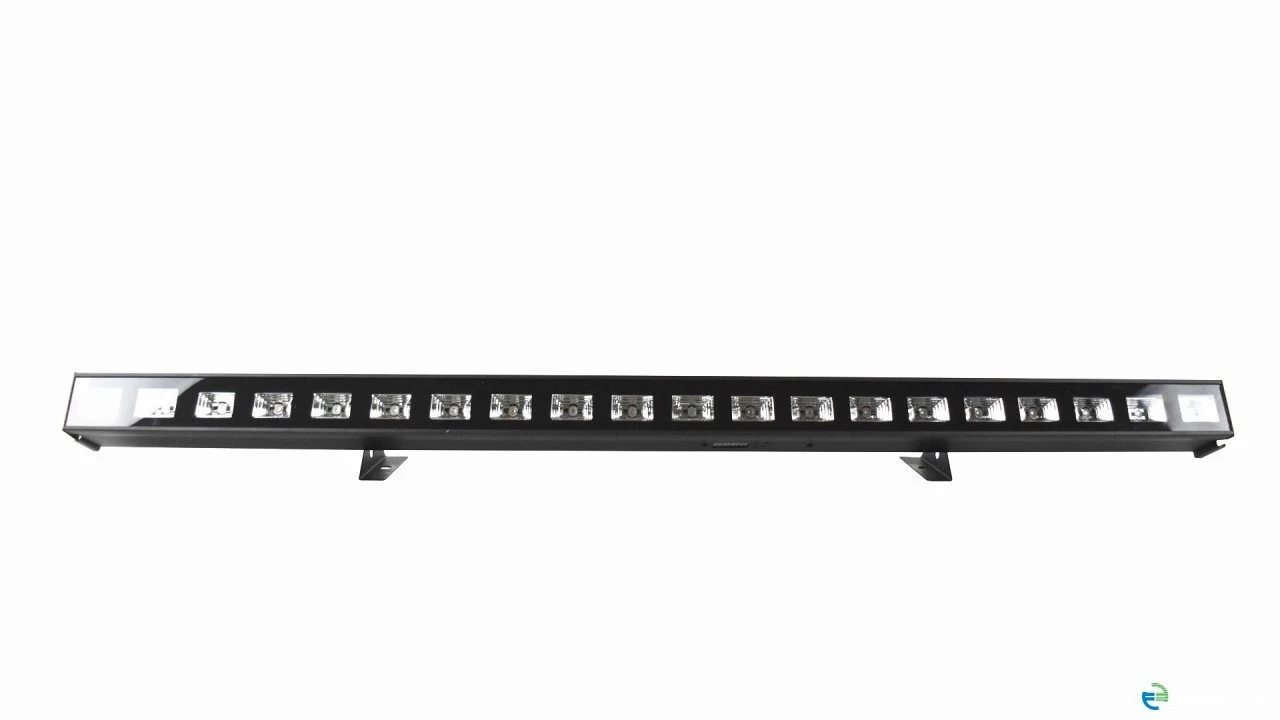

YR-L0320S Silm LED BAR with 20*3W 4 in 1 color. It is led bar without fan, especially apply to noise pollution demanding places, such as buildings, hospitals, office space, and so on. They can be assemble one by one to creat effect what you want, this design enable the light to be very stable and can ensure long life span as well as convenient installation. Moreover, it is very portable and cost effective.
What is the height of the living room chandelier? The current building design is designed according to the 2.8-meter-high design. after laying the bricks, there will be 2.6-2.7. is the chandelier designed to be sold to the villa or the countryside! Besides, there are several best mini light bars chandeliers in the countryside. The living room generally needs to be equipped with ceiling lamp spotlights (ceiling lamps), and the above picture is clear at a glance.Select the living room ceiling lamp note: The living room ceiling lamp is a lamp that plays the role of the main lighting. don't pick too fancy ceiling lamps. Although the surface is good, it is more troublesome to take care of and the practicality is not strong, it is recommended to choose a simple and generous Yellow River ceiling lamp. I understand.First of all, it is necessary to determine that there are several levels of ceiling: the 'first and second level' here does not refer to the level of ceiling, but refers to the shape, like a gradient, and another layer is added under a ceiling, called the second level. The third level is to do another layer on the basis of the second level. The product produces extremely low UV and IR, which helps to protect both the surroundings and the human body.
MINI LED BAR 20x3W is a LED Wall Washer Light, which uses 5 pieces of 3W LED red light, 5 pieces of 3W LED green light, 5 pieces of 3W LED blue light and 5 pieces of 3W LED amber light. MINI LED BAR 20x3W (RGBA) can meet the customer's demand for red, green, blue and amber color effects. Its voltage reaches AC110~240V 50/60HZ and its power reaches 65W. With its wide beam angle of 110°, this LED Bar Light can meet the needs of customers for a wider range of light. It will also come with reflector cup for you. Its dimming has 1 standard method and 4 kinds of different dimmer methods for you to use. Its powerful wash effect can be perfectly used in the bar, banquet hall and other places. The case of the light is made by an engineered aluminum profile and the top of the bead is protected by tempered glass, which can protect this lamp from damage caused by violent collision. MINI LED BAR can achieve stroboscopic effect and has five stroboscopic modes. Its strobe frequency reaches 0-20 HZ. MINI LED BAR 20x3W has no internal fan and dissipates heat naturally.
YR-L0320S illumination diagram:
Product Parameters:
| Electrical | voltage | AC100V-240V | |
| power consumption | 65W | ||
| Light source | LED | 20x3W(R/G/B/A 4) | |
| Color | R/G/B/A | ||
| Control mode | DMX512 | 5/10CH (switchable) | |
| Master/slave | √ | ||
| Manual control | √ | ||
| Sound Active | √ | ||
| auto | √ | ||
| Optical system | Beam Angle | 110° (with reflector cup) | |
| Dimmer | 0~100% line dimmer | ||
| Strobe | 0-20Hz | ||
| Physical | Machine size | 101.5*5.7*11.7CM | |
| Machine weight | 2.0KG | ||
| Environment& safty | Stock | dry and clean place | |
| Running temp. | under 40°C | ||
| 10CH MODE | 5CH MODE | |||
| CH 1 | Dimmer | CH 1 | Dimmer | |
| CH 2 | Red dimmer | CH 2 | Red dimmer | |
| CH 3 | Green dimmer | CH 3 | Green dimmer | |
| CH 4 | Blue dimmer | CH 4 | Blue dimmer | |
| CH 5 | Amber dimmer | CH 5 | Amber dimmer | |
| CH 6 | Strobe | |||
| CH 7 | Color Preset | |||
| CH 8 | Auto & Sound Active | |||
| CH 9 | Auto Speed | |||
| CH 10 | Dimmer Curve | |||
Light Effect:
Product Appearance:
