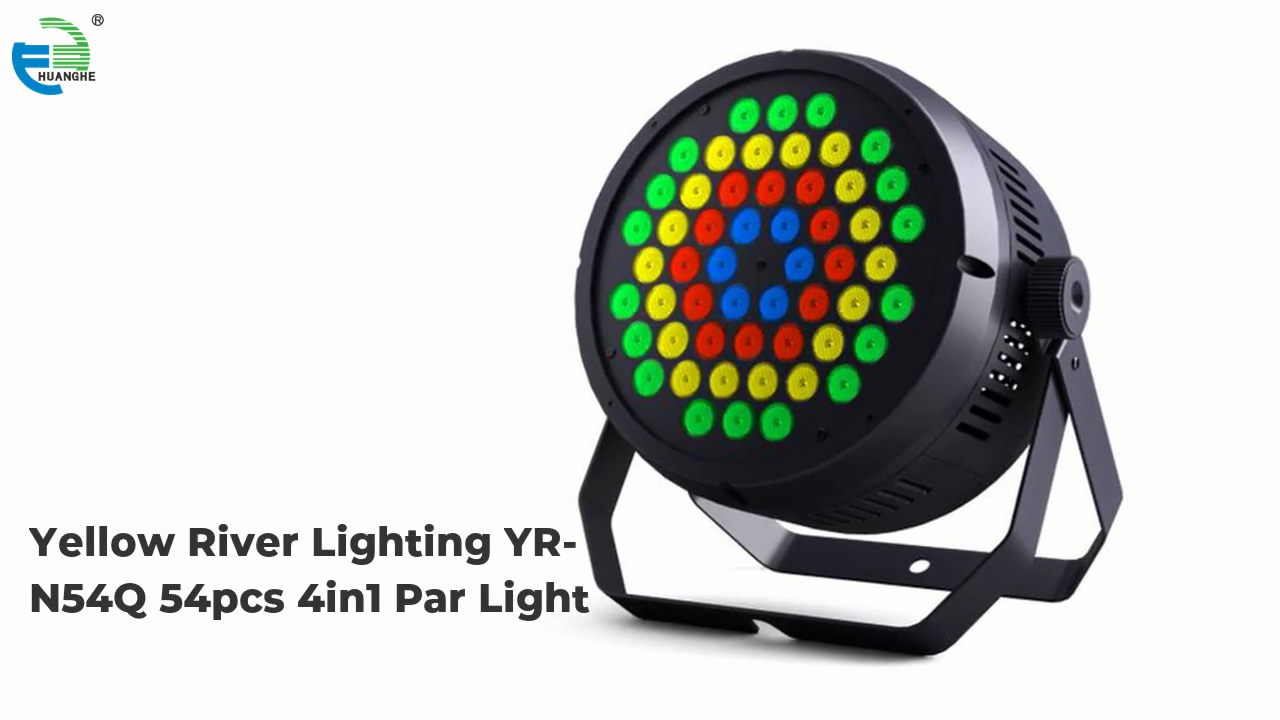

Yellow River Lighting YR-N54Q 54pcs 4in1 Par Light
This is our latest design for the par light in 2021, and it enjoys favorable market feedback due to the following advantages:
*aluminum shell +fine sand wear-resistant spray paint +round appearance and unique bottom shell design.
*all-directional ventilating system, the mainboard, the light source is heated evenly.
* Intelligent temperature control fan for active heat dissipation: silent below 40 degree, and fan starts working smoothly when above 40 degree. The fan can be turned off optionally with intelligent power reduction.
* Maximum noise is 43.0dBA from 1 meter away (close to ambient noise), you can choose to turn off fan and use silent mode without any noise. Power will reduce according to temperature to keep led lamp safe when temperature above 80 degree.
*linear dimming for smooth color switch.
* We can produce different types of this led par by changing quantities of led lamp and power at the same time keeping same case design.
This LED par light is based on our classic top-rated par light (YR-1190), so its quality has been well tested and received public recognition. It supports RDM protocol. Its new design, together with consistent high quality will surely gain a larger market share.
LED Indoor Par Light with circle control is one of popular products belonging to LED Par Light Series, which uses 54 pieces of 4W RGBW 4 in 1 LED lights. RGBW 4 in 1 LED Lights can meet the customer's demand for red, green, blue and white color effects. With its wide beam angle of 25°, this can meet the needs of customers for a wider range of wash effects. Its built-in programming has 3 stroboscopic effects, 8 static mixed color, 13 auto and circle control. This causes the bead to blink in a programmed manner. Circle control is one of the advantage of LED Indoor Par Light, which can make the light beads in the marked area flash successively. RDM control mode is one of the advantages of LED Indoor Par Light. Through the RDM control mode, users can operate remotely from the console. The LED Par Light is designed with an onmi-directional ventilation system. The design of onmi-directional ventilation system effectively ensures that the inlet and outlet wind surface is large, the noise is low and the air path is smooth. LED Indoor Par Light has three kinds of intelligent temperature control of fan for heat dissipation, muting below 40°C, starting heat dissipation above 40°C. Users can choose to keep the fan on. When the high temperature reaches 80°C, the power will automatically decrease. Users can also choose to turn off fan and use silent mode without any noise , but power will reduce to keep LED light safe when temperature above 80°C.
LUX
Product Parameters :
| Electrical | voltage | 110V ~ 240V | ||
| power consumption | 220W | |||
| Light source | LED | 4W*54pcs | ||
| Color | RGBW | |||
| Control mode | DMX512 | 21/13/9/6ch | ||
| RDM | √ | |||
| Master/slave | √ | |||
| Manual control | √ | |||
| Sound Active | √ | |||
| auto | √ | |||
| Optical system | Beam Angle | 25° | ||
| Dimmer | 0~100% line dimmer | |||
| Strobe | 0-20Hz | |||
| Noise | Noise mode | Intelligent temperature, active heat dissipation,silent below 40 degrees, fan begin to work when temperature above 40 degrees. maximum noise is 43.0dBA from 1 meter away (close to ambient noise),you can choose to turn off fan and use silent mode without any noise , but power will reduce according to temperature to keep led lamp safe when temperature above 80 degree. |
||
| Physical | Machine size | 28.2x13.9x25.3cm(excluding hook) | ||
| Machine weight | 2.7kg | |||
| Environment& safty | Stock | dry and clean place | ||
| Running temp. | 40°C Max | |||
| CHANNEL Chart | 21 CH MODE | 13 CH MODE | 9 CH MODE | 6 CH MODE |
| CH 1 | Dimmer | Dimmer | Dimmer | Dimmer |
| CH 2 | Inner circle red | red | red | red |
| CH 3 | Inner circle green | green | green | green |
| CH 4 | Inner circle blue | blue | blue | blue |
| CH 5 | Inner circle white | white | white | white |
| CH 6 | Second circle red | strobe | strobe | strobe |
| CH 7 | Second circle green | Color preset | Color preset | |
| CH 8 | Second circle blue | Static mixing + Auto | Static mixing + Auto | |
| CH 9 | Second circle white | Speed of Auto | Speed of Auto | |
| CH 10 | Third circle red | bias light red | ||
| CH 11 | Third circle green | bias light green | ||
| CH 12 | Third circle blue | bias light blue | ||
| CH 13 | Third circle white | bias light white | ||
| CH 14 | outside circle red | |||
| CH 15 | outside circle green | |||
| CH 16 | outside circle blue | |||
| CH 17 | outside circle white | |||
| CH 18 | Strobe | |||
| CH 19 | Color preset | |||
| CH 20 | Static mixing + Auto | |||
| CH 21 | Speed of Auto |
Light Effect:
Product Appearance And Size :
