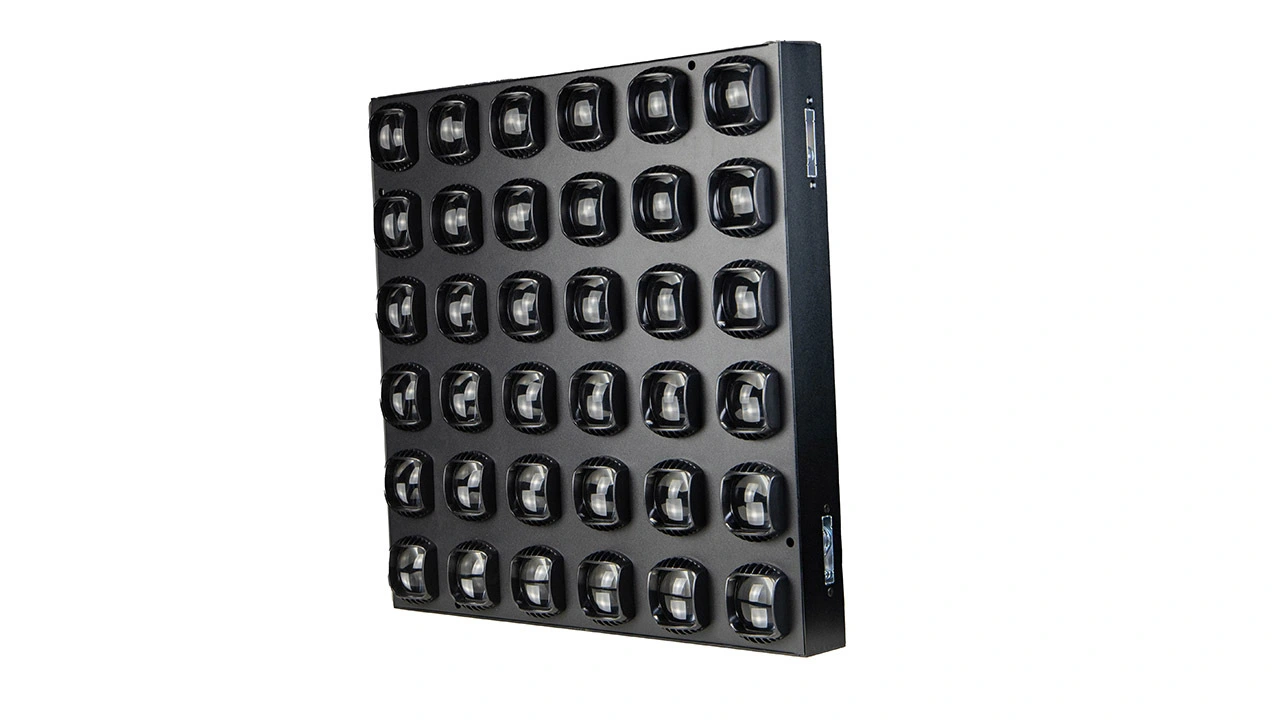

Matrix LED Wash Light YR-B36Q Four-color LED lamps
The matrix led wash light is an innovative lighting fixture that offers a wide range of possibilities for creating stunning visual effects. This type of led wash light features multiple rows of tiny lights arranged in a grid-like pattern, which can be individually controlled to produce a myriad of color combinations and patterns. The advantage of using this kind of lighting fixture lies in its capacity to create both intense beams and gentle color blends, making it ideal for illuminating live performances, stages, or nightclubs. Additionally, the matrix led wash light utilizes energy-efficient bulbs that consume less power than traditional lighting systems while providing superior performance.
Feature:
◎ beam+ flash+numbers+other effect
◎ Newest design
◎ Standard linear dimming
SILENT MATRIX LIGHT 6X6 is a LED Wash light, which uses 36 pieces of 15W four-color LED lamps. Its voltage reaches AC100~240V 50/60HZ and its power reaches 500W. Four-color LED lamps can meet the customer's demand for red, blue, green, and white color effects. In ensuring sufficient illumination, LED lamps have low energy consumption and long lifespan. The long lifespan of LED lamps can reach 50000 hours. SILENT MATRIX LIGHT 6X6 has no internal fan and dissipates heat naturally. It can be perfectly used in theatres, multi-functional halls, auditoriums, banquet halls and other places because of extremely low noise operation. Its dimming can achieve 32bit 0~100% linear dimming. This feature allows for a wider range of wash effects and meets the needs of customers for wash effects. SILENT MATRIX LIGHT 6X6 can achieve stroboscopic effect. Its strobe frequency reaches 1-30 HZ. Its matrix appearance takes up less space and makes it easier to place and install. RDM control mode is one of the advantages of SILENT MATRIX LIGHT 6X6. Through the RDM control mode, users can operate remotely from the console. Since the lamp has no internal fan and natural heat dissipation, it can operate with extremely low noise.
Product Parameters
| Electrical | voltage | AC100~240V 50/60HZ | |
| power consumption | 500w | ||
| Light source | LED light source | 15W | |
| Number of leds | 36(RGBW) 4 in 1 | ||
| Control mode | DMX 512 | 4/12/144ch | |
| Master/slave | √ | ||
| RDM | √ | ||
| Voice control | √ | ||
| AUTO | √ | ||
| Optical system | Dimmer | 0-100% | |
| Connection mode | DMX512 input and output / power input and output | ||
| Strobe | 1~30t/s | ||
| Environment& safty | Stock | clean place | |
| Running temp. | -30℃~50℃ | ||
| Protection level | IP20 | ||
| Physical | Appearance | Black | |
| Shell | Metal | ||
| Size/weight | Light size(with handles) | 50.5*50.5*17cm | |
| Net weight | 10kg | ||
| CHANNEL Chart | 4 CH | CHANNEL Chart | 12CH | CHANNEL Chart | 144CH |
| CH 1 | R red light linear dimming | CH 1 | total dimming | CH 1 | The first red light linear dimming |
| CH 2 | G green light linear dimming | CH 2 | strobe | CH 2 | The first green light linear dimming |
| CH 3 | B blue light linear dimming | CH 3 | R red light linear dimming | CH 3 | The first blue light linear dimming |
| CH 4 | W white light linear dimming | CH 4 | G green light linear dimming | CH 4 | The first white light linear dimming |
| CH 5 | B blue light linear dimming | ... | ... | ||
| CH 6 | W white light linear dimming | CH 141 | The 36th red light linear dimming | ||
| CH 7 | macro color | CH 142 | The 36th green light linear dimming | ||
| CH 8 | model | CH 143 | The 36th blue light linear dimming | ||
| CH 9 | speed | CH 144 | The 36th white light linear dimming | ||
| CH 10 | direction | ||||
| CH 11 | background color | ||||
| CH 12 | background tone light |
FAQ
1. How to make sure your quality?
We have very clear and strict testing procedures, and we also have advaced testing equipment. The most important thing is that we use all good quality materials and never tried low quality raw materials.
2. Can you do ODM ,OEM?
Yes ,sure.
3. Is it OK to print my logo on stage light product?
Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
