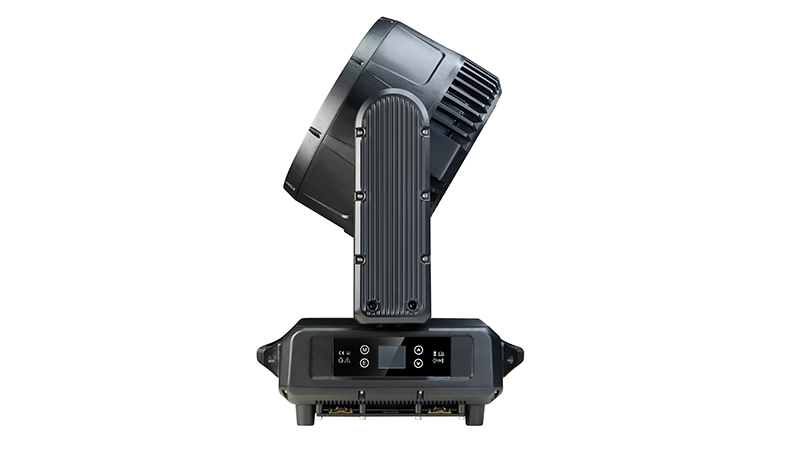

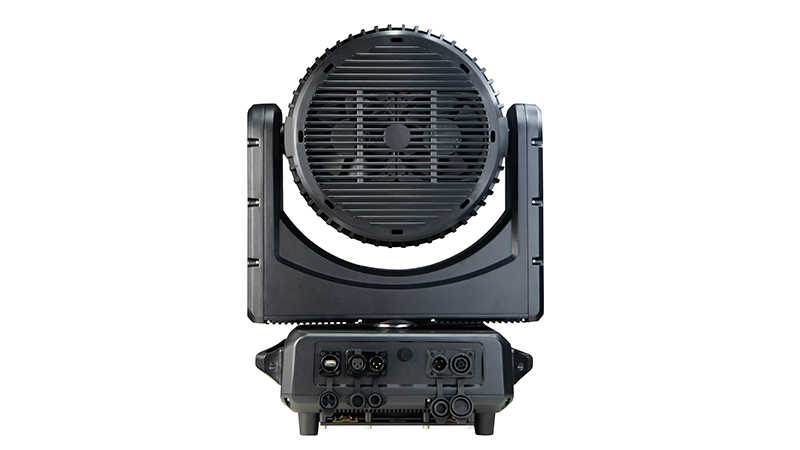

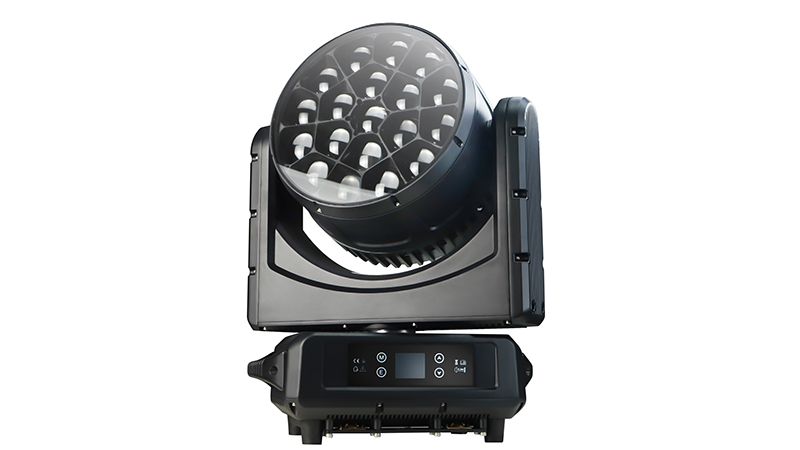

YR-IP4019 is 19pcs* 40W waterproof focus wash light. It is our new waterproof product designed in 2024. The light source usesOSRAM 19pcs*40W(RGBW). And the lifespan is up tp 50,000 hours. What's more, it has multiple control channels that including CH 22/35/79/98. This 380W waterproof moving head stage light is a powerful and stable stage lighting equipment. It not only has excellent waterproof performance and high brightness LED light source, but also has moving head function and a variety of lighting effects, which can meet the needs of various stage performances. Whether it is a large concert, concert or small theatrical performance, it can bring a shocking visual experience to the audience. In terms of appearance, this stage light uses a stylish metal shell design, smooth lines and a modern sense.
Feature:
◎ OSRAM 19pcs*40W(RGBW)
◎ CH 22/35/79/98
◎ IP65
YR-IP4019 is 19pcs* 40W waterproof focus wash light. It is our new waterproof product designed in 2024. The light source usesOSRAM 19pcs*40W(RGBW). And the lifespan is up tp 50,000 hours. What's more, it has multiple control channels that including CH 22/35/79/98
Product Parameters
Light source | Light source | 19pcs*40W(RGBW) |
Lifespan | 50,000 hours | |
Antistatic | up to 2000V HBM | |
Control parameters | Stroboscopic | 0-30Hz, standard stroboscopic + pulse stroboscopic + random stroboscopic |
Dimming mode | 0-100% linear dimming modes | |
Control signal: | DMX512(Digital MultipleX 512)+RDM, in line with international standard light control transmission protocol | |
Control channels | CH 22/35/79/98 | |
Built-in effect | static Chase color + self-walking, with single point control, circle control, rainbow, vortex, kaleidoscope, small waist effectOperation mode: console, manual, master-slave, optional WIFI+ mobile APP control | |
Front mirror disk | bidirectional fast/slow endless rotation | |

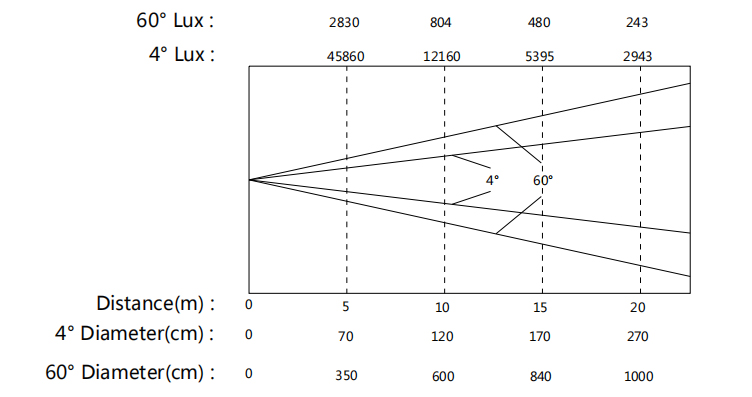

ZOOM and light Angle | electronic reset, 4 degrees --60 degrees /1.7 seconds | |
Scanning | horizontal 540 degrees 3.2S/ cycle, vertical 270 degrees 1.2S/ cycle, three-phase motor, photoelectric reset, automatic error correction at the same time, with automatic return function, smooth subdivision technology runs more smoothly | |
Working parameters | Operating voltage | AC100V-240V (50/60HZ) |
Total rated power | 1000W | |
Power factor | 0.98 | |
Maximum ambient temperature | 4.6A | |
Ambient temperature | <40 degrees | |
Light parameters | IP rate | IP65 |
Net weight | 22.5KG |
CH22 | CH35 | CH79 | CH98 | Function | DMX vaule | Description |
1 | 1 | 1 | 1 | red. | 0-255 | The red is dimmed linearly from dark to light |
2 | 2 | 2 | 2 | Red trim | 0-255 | Red trim |
3 | 3 | 3 | 3 | green. | 0-255 | Green is dimmed linearly from dark to light |
4 | 4 | 4 | 4 | Green trim | 0-255 | Green trim |
5 | 5 | 5 | 5 | blue. | 0-255 | Blue is dimmed linearly from dark to light |
6 | 6 | 6 | 6 | Blue trim | 0-255 | Blue trim |
7 | 7 | 7 | 7 | white. | 0-255 | White from dark to light for linear dimming |
8 | 8 | 8 | 8 | White trim | 0-255 | White trim |
9 | 9 | 9 | 9 | Color temperature control | 0-255 | Linear color temperature control |
10 | 10 | 10 | 10 | Color macro | 0-255 | Built-in color gradient |
11 | 11 | 11 | 11 | stroboscopic | 0-3 | Light off |
4-103 | Synchronous stroboscopic speed from slow to fast (1HZ-25HZ) | |||||
104-107 | Light up | |||||
108-207 | Bisecting strobe speed from slow to fast (1HZ-25HZ) | |||||
208-212 | Light up | |||||
213-225 | Low speed random stroboscopic | |||||
226-238 | Medium-speed random stroboscopic | |||||
239-251 | High-speed random stroboscopic | |||||
252-255 | Light up | |||||
12 | 12 | 12 | 12 | Total dimmer | 0-255 | Linear dimming from dark to light |
13 | 13 | 13 | 13 | Total dimming fine tuning | 0-255 | Total dimming fine-tuning control |
14 | 14 | 14 | 14 | X-axis | 0-255 | Horizontal control |
15 | 15 | 15 | 15 | X-axis trim | 0-255 | Horizontal fine-tuning control |
16 | 16 | 16 | 16 | Y-axis | 0-255 | Vertical control |
17 | 17 | 17 | 17 | Y-axis fine-tuning | 0-255 | Vertical fine-tuning control |
18 | 18 | 18 | 18 | macro | 0-255 | reserve |
19 | 19 | 19 | 19 | resetting | 0-25 | non-function |
26-76 | The lamp holder is valid for 5s reset | |||||
77-127 | XY reset is valid for 5s | |||||
128-255 | All resets are valid for 5 seconds | |||||
20 | 20 | 20 | 20 | focusing | 0-255 | focusing |
21 | 21 | 21 | 21 | Rotating mirror | 0-127 | 0-60 degrees |
128-188 | Counterclockwise from fast to slow stepless | |||||
189-193 | stop | |||||
194-255 | Clockwise from slow to fast stepless | |||||
22 | 36 | 22 | 22 | frequency | 0-255 | Lamp frequency (1-10K) |
/ | 23 | / | / | Built-in effect | 0-7 | There is no |
(with effect color) | ||||||
8 | Static effects 1 | |||||
9 | Static effects 2 | |||||
10 | Static effect 3 | |||||
11 | There is no | |||||
12 | Static effects 4 | |||||
13 | Static effects 5 | |||||
14 | There is no | |||||
15 | Dynamic effect 1 | |||||
16 | Dynamic Effects 2 | |||||
17 | Dynamic effect 3 | |||||
18 | Dynamic Effects 4 | |||||
/ | 23 | / | / | Built-in effect | 19 | Monochromatic random |
(with effect color) | ||||||
20 | Full color random | |||||
21 | Rainbow Effect 1 | |||||
22 | Rainbow Effect 2 | |||||
23 | Dynamic Effect 5 | |||||
24 | Dynamic effect 6 | |||||
25 | Dynamic Effects 7 | |||||
26 | Dynamic effect 8 | |||||
27 | Dynamic effect 9 | |||||
28 | Dynamic effect 10 | |||||
29 | Dynamic Effects 11 | |||||
30 | Dynamic effects 12 | |||||
31 | Dynamic Effects 13 | |||||
32 | Dynamic effect 14 | |||||
33 | Empty | |||||
34 | Empty | |||||
35 | Dynamic Effects 15 | |||||
36 | Dynamic effects 16 | |||||
37 | Dynamic effects 17 | |||||
38 | Dynamic effect 18 | |||||
39 | Dynamic effects 19 | |||||
40 | Dynamic effects 20 | |||||
41 | Empty | |||||
42 | Dynamic effects 21 | |||||
43 | Empty | |||||
44 | Dynamic effects 22 | |||||
45 | Dynamic effects 23 | |||||
46 | Dynamic effects 24 | |||||
47 | Dynamic Effects 25 | |||||
48 | Dynamic Effects 26 | |||||
49 | Dynamic Effects 27 | |||||
50 | Dynamic effects 28 | |||||
51 | Dynamic Effects 29 | |||||
52 | Dynamic Effects 30 | |||||
53 | Dynamic effects 31 | |||||
54 | Dynamic effects 32 | |||||
55 | Dynamic Effects 33 | |||||
56 | Dynamic Effects 34 | |||||
57 | Dynamic Effects 35 | |||||
58 | Dynamic effects 36 | |||||
59 | Dynamic Effects 37 | |||||
60 | Dynamic Effects 38 | |||||
61 | Random position 1 | |||||
62 | Random position 2 | |||||
63 | Random position 3 | |||||
64 | There is no | |||||
65 | Random position 4 | |||||
66 | Random position 5 | |||||
67 | Dynamic Effects 39 | |||||
68 | Dynamic effects 40 | |||||
69 | There is no | |||||
70 | Dynamic Effects 41 | |||||
71-255 | There is no | |||||
23 | Effect speed | 0-63 | Effect static | |||
64-158 | Forward from fast to slow | |||||
159-160 | static | |||||
161-255 | Reverse from slow to fast | |||||
24 | Effect dilution | 0-255 | Dynamic effect dilution | |||
25 | Effect red | 0-255 | Dynamic effect red | |||
26 | Effect green | 0-255 | Dynamic effect green | |||
27 | Effect blue | 0-255 | Dynamic effect blue | |||
28 | Effect white | 0-255 | Dynamic effect white | |||
29 | Effect dimming | 0-255 | Pattern 0-100% dimming | |||
30 | Background dimming | 0-255 | Background 0-100% dimming | |||
31 | Effect transition | 0-255 | Pattern change control | |||
32 | Effect supplement | 0-255 | Pattern translation | |||
33 | Foreground stroboscopic | 0-255 | Foreground stroboscopic | |||
34 | Background stroboscopic | 0-255 | Background stroboscopic (same 11 channel) | |||
35 | Background selection | 0-255 | Background selection | |||
/ | 23 | 23 | R1 LED dimming | 0-255 | R1 LED dimming | |
24 | 24 | G1 LED dimming | 0-255 | G1 LED dimming | ||
25 | 25 | B1 LED dimming | 0-255 | B1 LED dimming | ||
26 | W1 LED dimming | 0-255 | W1 LED dimming | |||
R2 LED dimming | 0-255 | R1 LED dimming | ||||
… | ... | 0-255 | ... | |||
77 | 95 | R19 LED dimming | 0-255 | R19 LED dimming | ||
78 | 96 | G19 LED dimming | 0-255 | G19 LED dimming | ||
79 | 97 | B19 LED dimming | 0-255 | B19 LED dimming | ||
/ | 98 | W19 LED dimming | 0-255 | W19 LED dimming |
