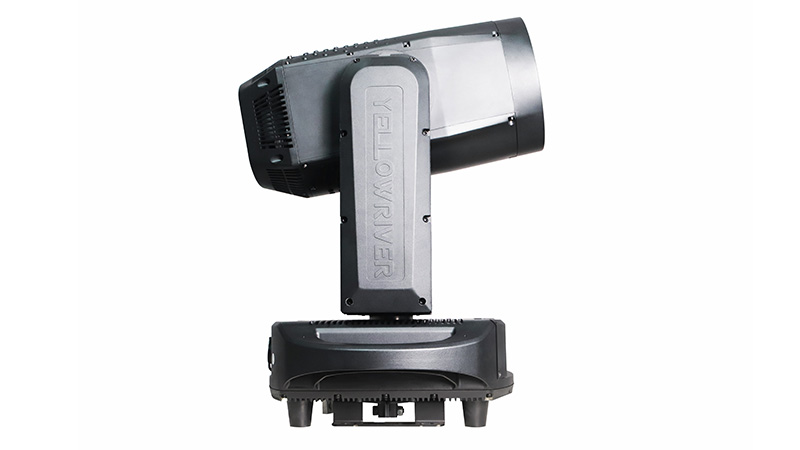

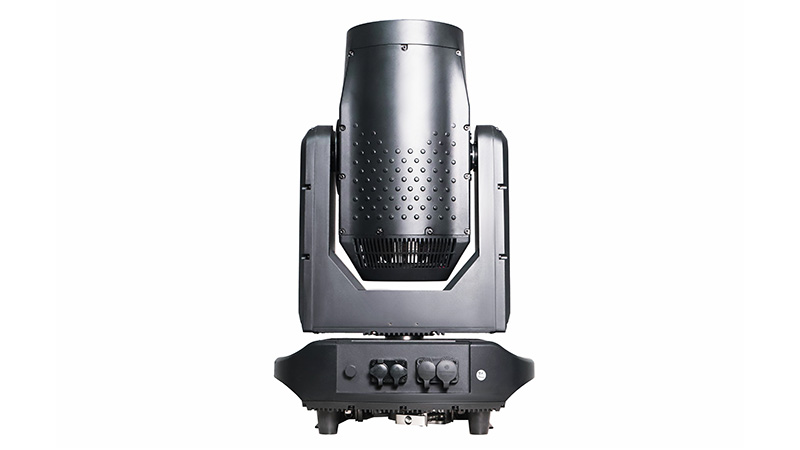

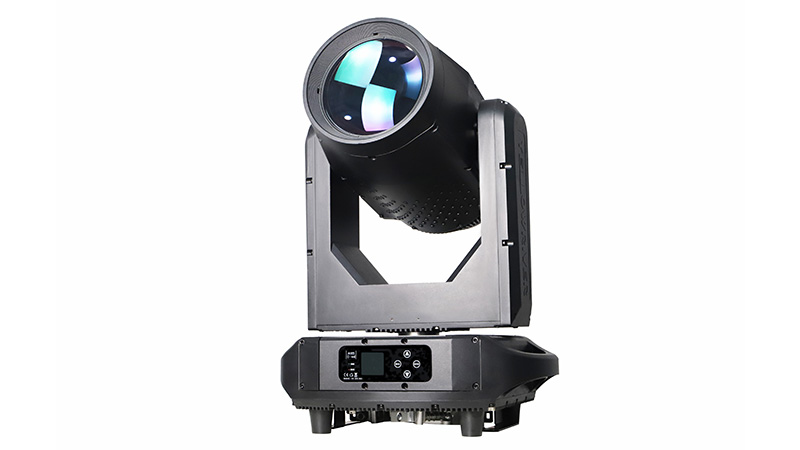

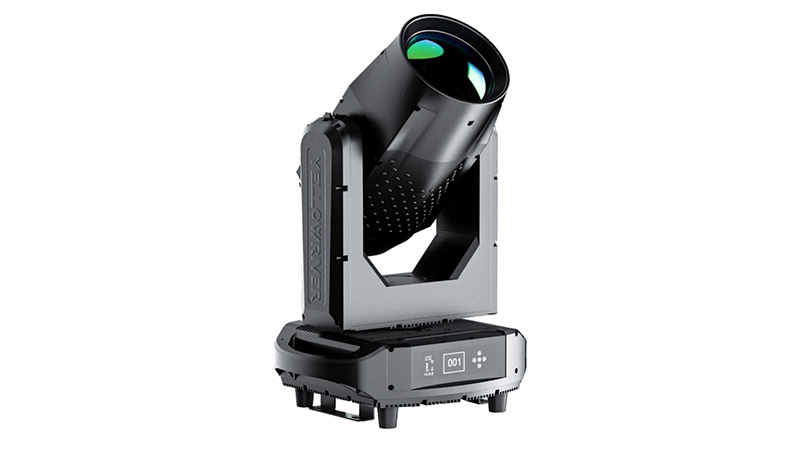

YELLOW RIVER 400W LED Moving Head Light BSW +CMY YR-IP400CMY
The OUTDOOR IP 66 LED Moving Head Light, a high-performance lighting fixture with a robust 400W power source and an impressive service life of 20,000 hours. This light is equipped with a Color Temperature Orange (CTO) feature, allowing for adjustable color temperature ranging from 5700K to 3500K, perfect for various lighting scenarios.
YR-IP400CMY is an outdoor Led Moving Head Light.It has 1 color wheel and 1 metal gobo wheel and 1 glass gobo wheel. And it also has CMY wheels. Outdoor Moving head light is a classics product that is used in stage.
This waterproof IP66 item offers a wide beam angle of 3 to 38 degrees and an advanced strobe system with double-shutter strobe capabilities, supporting pulse strobe, effect strobe, and standard strobe modes. With a 0-100% dimming range and 23 control channels, it provides extensive customization options.
Controlled via DMX512+RDM, this fixture adheres to the international standard lighting control transmission protocol, offering console settings for address code and software upgrade capabilities. The cooling system features two powerful fans for active cooling, ensuring optimal performance.
The color system includes a color wheel with 8 colors and white for semi-color effects, along with a CMY system for color mixing. The CTO glass allows for precise color temperature adjustments, while the prism and gobo wheels offer a variety of effects. The scanning system features pan and tilt movements with precise positioning and automatic error correction. The LCD screen displays working time, fault detection, and control, with a language switch between Chinese and English for ease of use. Safety is paramount, this moving head CMY light equipped with automatic power cut-off for overheating or system failure, ensuring reliable operation and peace of mind.
Product Parameters
| Light source | Light source | 400W LED | |
| Lifespan | 20,000 hours | ||
| CCT | 6800K(CTO:5700K--3500K) | ||

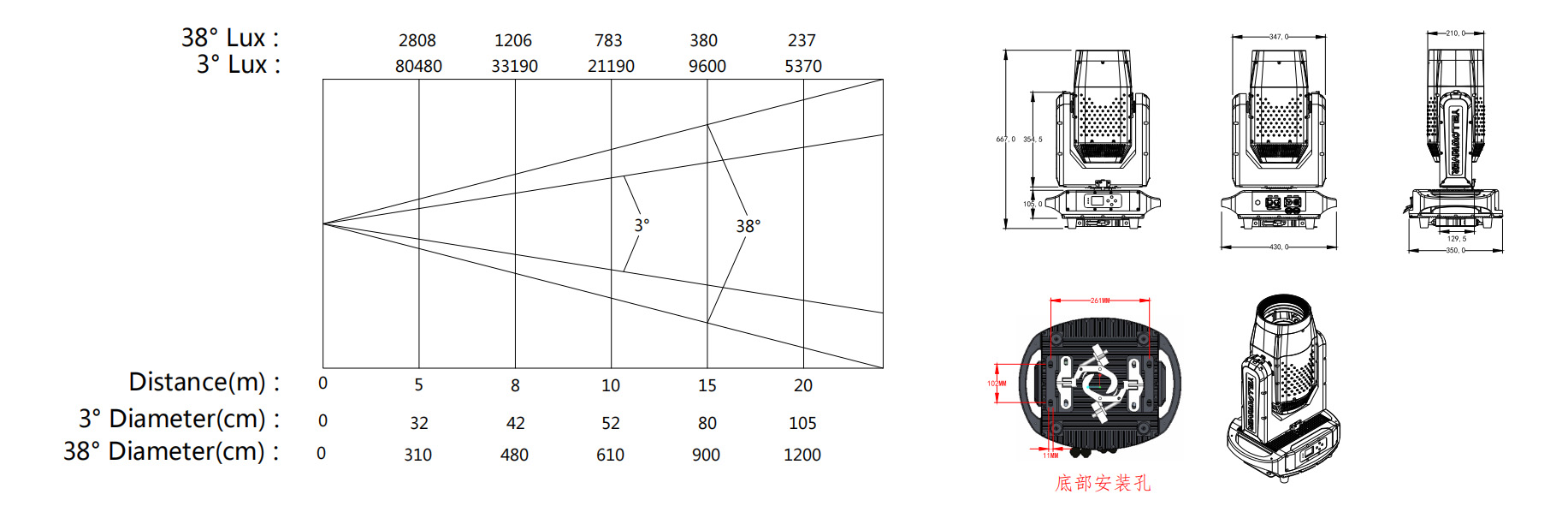

| Control parameters | Optical path lens | 3° to 38° | |
| Strobe | electric strobe 1~30t/s,Support pulse strobe + effect strobe + random strobe | ||
| Dimming | line dimmer | ||
| Control signal | DMX512(Digital MultipleX 512)+RDM | ||
| Control channel | 23CH | ||
| Operation mode | Console, manual, master/slave | ||
| Color | 1pcs color disc: 8pcs colors + white light, with bidirectional variable speed flow effect and rainbow effect | ||
| CMY | 1 PCS C wheel +1 PCS M wheel +1 PCS Y wheel,they can be overlapped to get a color mixing effect | ||
| CTO | 1 piece CTO GLASS with adjustable color temperature: 5700K--3500K | ||
| Gobo | 1 metal gobo wheel: 11 gobos + white, with shaking, flowing effect 1 glass gobo wheel: 7 gobos + white, with shaking, flowing effect | ||
| Prism | 1pc 3 prism,1pc 4 prism ,rotate forward and backwards | ||
| Frost | 1 independent atomizing glass,can convert to a coloring effect | ||
| Scanning | pan movement 540 degrees 3.2S/cycle, tilt movement 270 heat conduction technology, active heat dissipation, to ensure more stable products | ||
| Display function | LCD screen, reversible screen, Chinese-English switchable, it can display the working time of lighting, fault detection and control, and can be restored to factory settings | ||
| Safety protection | Automatically cut off the power supply when the body overheats or the system fails | ||
| Working parameters | Working voltage | AC100V-240V (50/60HZ) | |
| Rated total power | 580W | ||
| Power factor | 0.99 | ||
| Maximum operating temperature | 40 degrees | ||
| Light parameters | Shell | aluminum, waterproof, high-temperature, anti-radiation, anti-messy flower | |
| Wire | high temperature resistant silicone wire is used for high voltage part, 1332 Teflon high temperature wire is used for weak current part | ||
| Display | TFT LCD display +4 touch buttons | ||

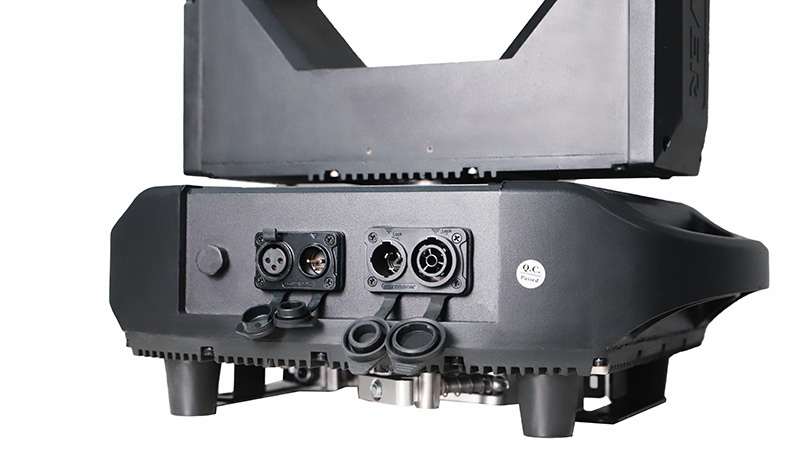

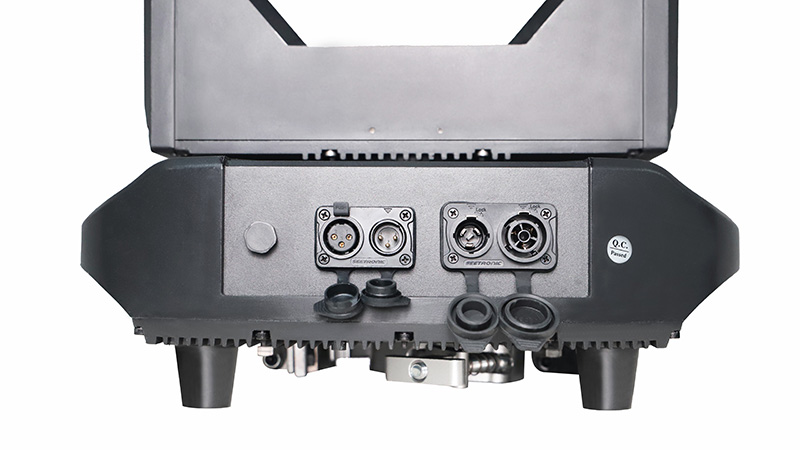

| Power interface | PowerCon, one in (blue) and one out (white) | ||
| Signal interface | 3 pin(male+female) | ||
| IP rate | IP66 | ||
| Net weight | 30.5KG | ||
FAQ
1. How to make sure your quality?
We have very clear and strict testing procedures, and we also have advaced testing equipment. The most important thing is that we use all good quality materials and never tried low quality raw materials.
2. Can you do ODM ,OEM?
Yes ,sure.
3. Is it OK to print my logo on stage light product?
Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
