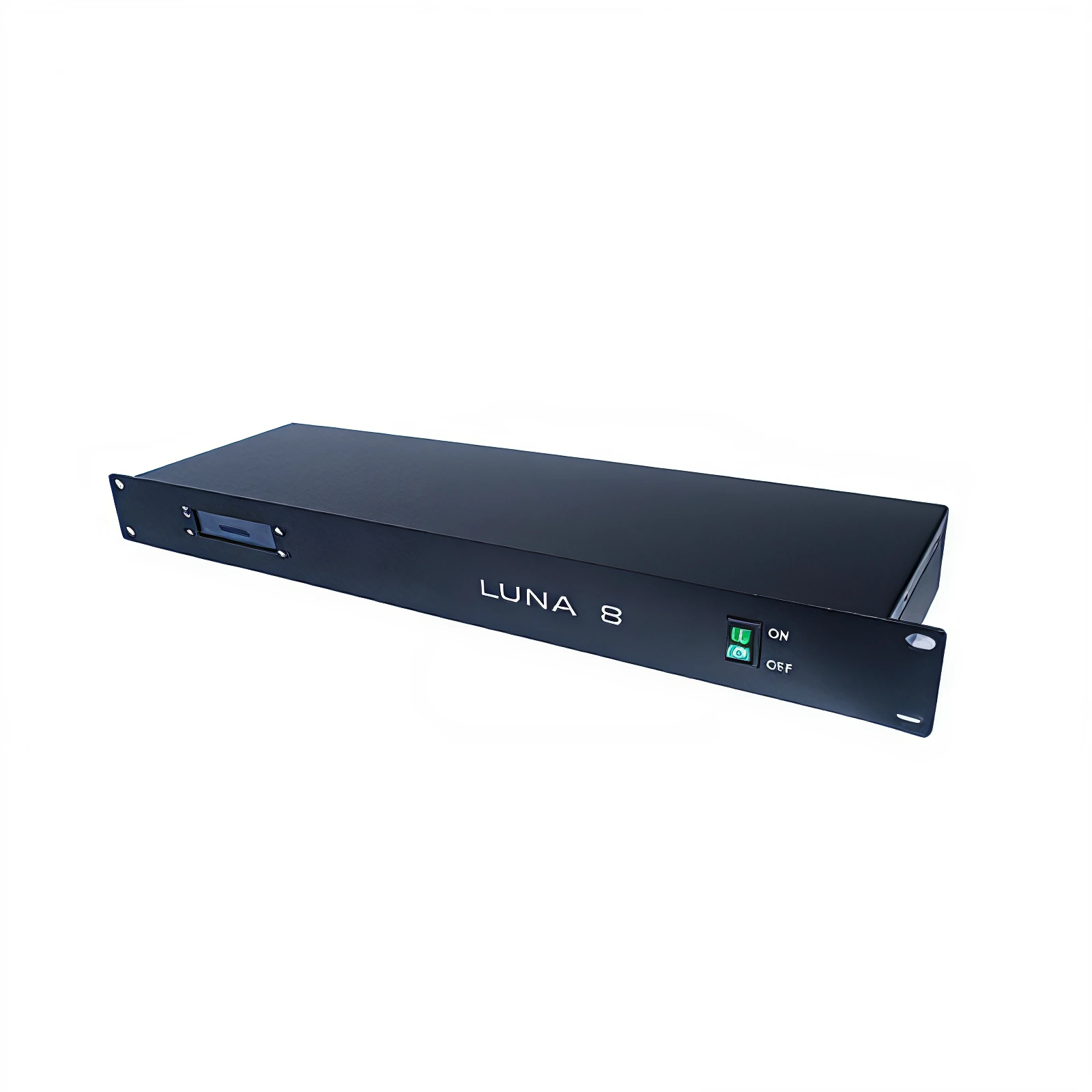

YR-DMX512 ART-NET DMX Converter 4096CH
The ART-NET DMX Converter is a powerful and versatile interface designed for seamless integration of DMX lighting systems with modern networked control solutions. It supports 4096 DMX channels across 8 DMX lines, adhering to the DMX512/1990 standard with a 40Hz refresh rate. This device enables two-way LAN-to-DMX transmission, following the V1.4 Art-Net protocol, and can be configured as a server (input DMX) or node (output DMX).
LAN< -> DMX two-way transmission, following the V1.4 Art-Net protocol
Can be set to server mode (input DMX) or node mode (output DMX) 4096 channels (8 DMX lines,DMX512/1990 standard, 40Hz refresh rate
- Input: 1 x ArtNet, 2 x DMX512
- Output: 8 x DMX512
32-bit ARM Core, built-in high-speed network chip 10/100M adaptive network port 2, cascading
It can modify the IP address, subnet mask, port sequence, and domain
Photoelectric isolation drive signal output, built-in TVS protection circuit
Support Max True love sound and light synchronization software
Compatible with software with ART-NET function, can be used as MA, Tiger and other physical console expander
The use of computer software to control lamps is intuitive and convenient, and there are many kinds of software
Fast programming and music synchronization control via MIDI signal
Support external physical console DMX signal to computer 3D software simulation
(Software with Art-Net input function) (e.g. support: WYSIWYG, EasyView 3D, Lighting Studio, etc.)
With LCD LCD display panel, you can directly change IP, port sorting and other parameters, also support the official website software change
Use Mingwei high stability power supply, all aluminum chassis, 1U size
DMX signal output connector XLR-D3Fx8
Supports 3/5 pole XLR connectors
Net weight: 1.4kg
Gross weight: 2.6kg (including power cord and 8 cannon adapters)
Dimension: 482 × 13 6× 44 (mm)
