Custom led mini bar for business | Yellow River

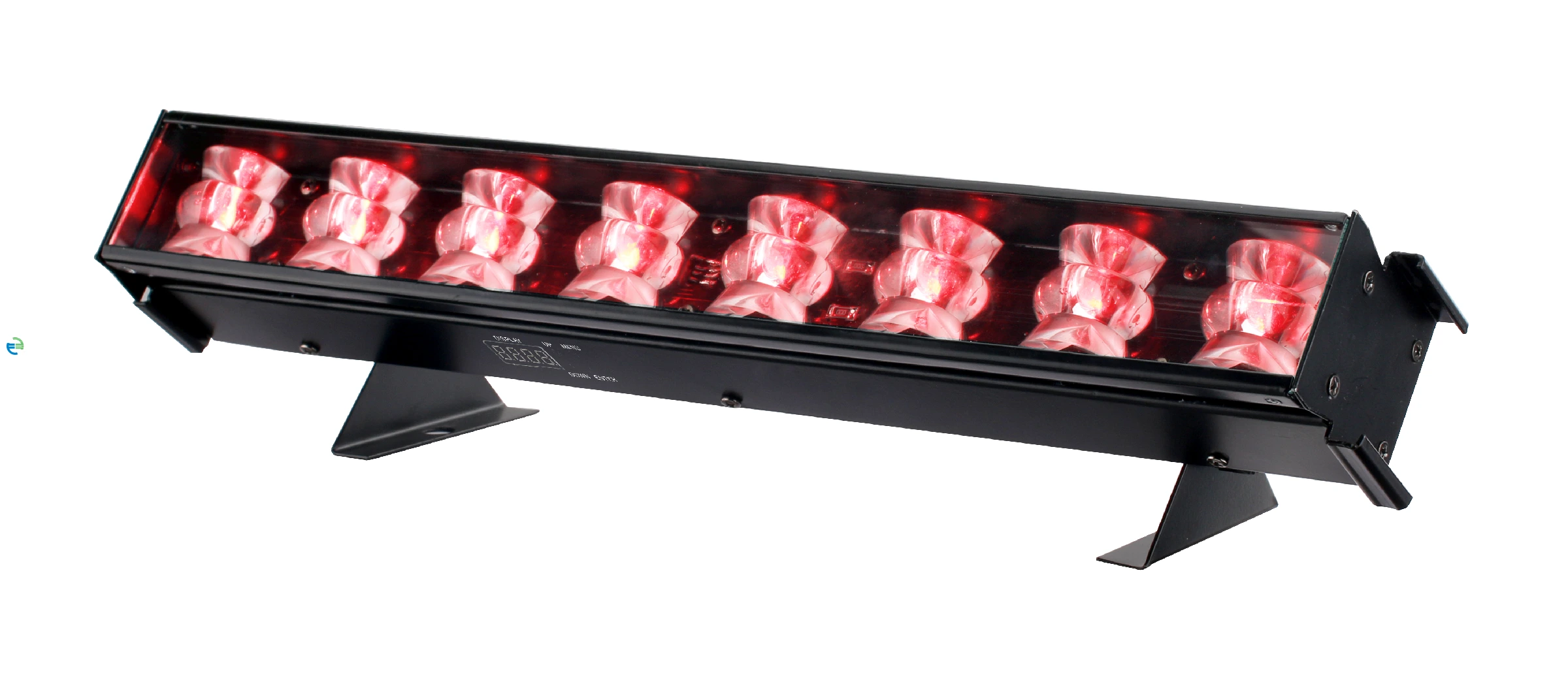

This is our popular mini rainbow effect bar light. It is 8pcs *3W mini bar light with RGB 3 in 1 led , we also can do another version with wash effect by using this same case YR-L0308T). It is very compact, only 42cm long and it is not heavy,only 0.75kg. The beam angle for this one is 160 degree reflector.We also can do 3W 9pcs RGB single color, cool white color and UV color. By the way, it can be connected one by one to meet your requests on length.
If you buy a led mini bar ceiling lamp, choose Minnie or Rex lighting. All right.Ceiling Lamp features ceiling lamp is the most used lamps in home decoration at present. it is simple and generous in style and has the features of good brightness and easy cleaning. So now the pursuit of simple and practical families generally use ceiling lamps. The lighting of the restaurant must be softer in order to increase the warm atmosphere of the meal and strengthen the emotional communication between family members. The lighting of the restaurant should be based on incandescent lamps, and use LED PAR Light light switches that can adjust the brightness of the lights to keep the lights flexible. I understand.First of all, it is necessary to determine that there are several levels of ceiling: the 'first and second level' here does not refer to the level of ceiling, but refers to the shape, like a gradient, and another layer is added under a ceiling, called the second level. The third level is to do another layer on the basis of the second level. Operating silently, the product is less likely to produce annoying humming and buzzing even running for a long time. This means users can enjoy a quiet lighting environment.
YR-L0308TA MINI LED BAR is mini led bar without fan, especially apply to noise pollution demanding places, such as buildings, hospitals, office space, and so on.
They can be assembled one by one to creat the effect you want. This design enables the light to be very stable and can ensure long life span as well as convenient installation. Moreover, it is very portable and cost effective. The butterfly lens (rainbow lens) not only beautify the appearance, but also create spectacular stage effect. It has 5 strobes. The cover is made of aluminum, not only lightweight, but also durable.
Illumination diagram:
Product parameters:
| Electrical | voltage | 110V ~ 240V | |
| power consumption | 25W | ||
| PWM Frequency | 2.4KHz | ||
| Light source | LED | 8x3W(RGB 3in 1) 600mA 50,000 hours life expectancy | |
| Color | RGB 3in 1 | ||
| Control mode | DMX512 | 9/4ch(switchable) | |
| Master/slave | √ | ||
| Manual control | √ | ||
| Sound Active | √ | ||
| auto | √ | ||
| Optical system | Beam Angle | 130°(rainbow effect lens for rainbow effect ) | |
| Field Angle | 160° | ||
| Dimmer | 0~100% line dimmer | ||
| Strobe | 0-20Hz | ||
| Illuminance | 1200 lux@1M full bright | ||
| Physical | Machine size | see following diagrammatic drawing | |
| Machine weight | 0.75kg | ||
| Environment& safty | Power Linking | 20units @ 120 V; 40 units @ 230 V. | |
| Stock | dry and clean place | ||
| Running temp. | under 40°C | ||
Light Effect:
Product Appearance And Size:
Work shop:
FAQ
1.How to make sure your quality?
We have very clear and strict testing procedures, and we also have advaced testing equipment. The most important thing is that we use all good quality materials and never tried low quality raw materials.
2.Can you do ODM ,OEM?
Yes ,sure.
3.Is it OK to print my logo on stage light product?
Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Advantages
1. A stage lighting enterprise that gathers research, production, marketing, and after-sales as integral whole.
2.Top ten Brand enterprises of Stage lighting in China, national intellectual property standard enterprise, Guangdong Province contract abiding enterprise, China Quality credit AAA+ enterprise, etc.
3.More then fifty kinds of goods have been granted“CE” certification.
4.Our goods are popular in Europe and America, Southeast Asia, Russia., etc., more than 60 countries and regions.
