New stage light for business | Yellow River

New stage light for business | Yellow River

Its superior LED chips enable it to distribute light in a more evenly and efficiently way, thus, in this way, nearly every corner of the room can lighten up.
Products Details

How to calculate the size of the stage light chandelier needed in the living room Since it is not clear about the area of your home, you can only give a little reference suggestion:The lights in the living room should be aimed at creating a warm and soft atmosphere and have appropriate lighting to meet the visual requirements. For example, the upstairs is a guest room and the downstairs is a living room, this design not only makes the living room itself have good PRODUCTS lighting, but also ensures that the lighting and ventilation of the bedroom are as good.2. reasonable design of hollow living room. Because the hollow living room is separated, the downstairs is the living room, and the area upstairs is not very large, so we leave the upstairs bedroom to the elders. It is a PRODUCTS lamp often used in various places such as home, office, entertainment, etc., and the ceiling lamp is very helpful for indoor decoration, so people love it.The product does not contain harmful substances like mercury. This means it is far safer for users to apply and can be recycled without damaging the environment.

The LED Blinder is a lighting fixture that utilizes high-intensity LEDs to produce eye-catching and dynamic visual effects. It's a powerful way to accentuate live performances, concerts, special events, and even film sets. The unit comprises several small yet extremely bright LED lights that are programmed to flash or strobe at various speeds and intensities. These effects create an extraordinary visual impact while also enhancing the mood of any space with their dramatic illumination. The compact design of the LED blinder allows for versatile setup options such as mounting on stands or rigging in trusses. With its energy-efficient operation, ease of use, and flexibility in terms of control options - including YR-DIPE100QX2  - this innovative tool continues to captivate audiences around the world by providing stunning light shows like never before!

Product Parameters


ElectricalVoltage110V ~ 240V
power consumption250W
Light sourceLED2 PCS 120W 4-in-1 LED
ColorRed, green, blue, warm white
Control modeDMX51212CH /8CH/6CH/4CH optional
Master/slave
Voice control
Auto
Optical systemSpot Angle50°
Dimmer0-100 linear
Strobestrobe 1-25Hz

MaterialAluminum
Machine weight8.5kg
Packing Size49*31*33cm
Environment& safetyStore conditiondry and clean place
Cooling methodHeat dissipation itself
Heat dissipation controlmotherboard intelligent temperature control system, automatic overtemperature protection
Running temp.-20°~40°
IP rateIP65


Channels(12CH):
CHfunctiondecription
CH1DIMMERTotal dimmer,linear dimmer, from dark to bright
CH2STROBETotal strobe,from slow to fast
CH3FUNCTION SELECTION0—5:empty; 6-100:jump change;101—150:
gradual change;
151—200:pulse change;201—256:sound
CH4SPEED OF FUNCTIONSpeed of function,from slow to fast
CH5R1 dimmerRed 1   0-100%
CH6G1 dimmerG1   0-100%
CH7B1 dimmerB1  0-100%
CH8WW1 dimmerWW1  0-100%
CH9R2 dimmerR2  0-100%
CH10G2 dimmerG2 0-100%
CH11B2 dimmerB2 0-100%
CH12WW2 dimmerWW2 0-100%


Channels(8CH):
CHfunctiondecription
CH1DIMMERTotal dimmer,linear dimmer, from dark to bright
CH2STROBETotal strobe,from slow to fast
CH3FUNCTION SELECTION0—10:empty; 11-100:jump change;101—150:
gradual change;
151—200:pulse change;201—255:sound
CH4SPEED OF FUNCTIONSpeed of function,from slow to fast
CH5R dimmerlinear dimmer,from dark to bright
CH6G dimmerlinear dimmer,from dark to bright
CH7B dimmerlinear dimmer,from dark to bright
CH8WW dimmerlinear dimmer,from dark to bright


Channels(6CH):
CHfunctiondecription
CH1R dimmerRed 0-100%
CH2G dimmerGreen 0-100%
CH3B dimmerBlue 0-100%
CH4WW dimmerWarm white 0-100%
CH5Master dimmerTotal brightness 0-100%
CH6Strobe effect000 – 000  No function,001 – 005   Sound control color change  006 – 010 No function,011 – 255 Strobe with increasing speed 0-100%


Channels(4CH):
CHfunctiondecription
CH1R dimmerlinear dimmer,from dark to bright
CH2G dimmerlinear dimmer,from dark to bright
CH3B dimmerlinear dimmer,from dark to bright
CH4WW dimmerlinear dimmer,from dark to bright

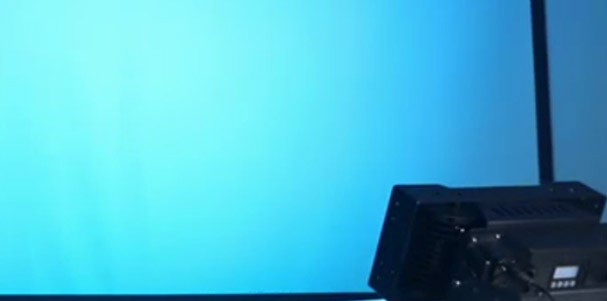

Product display

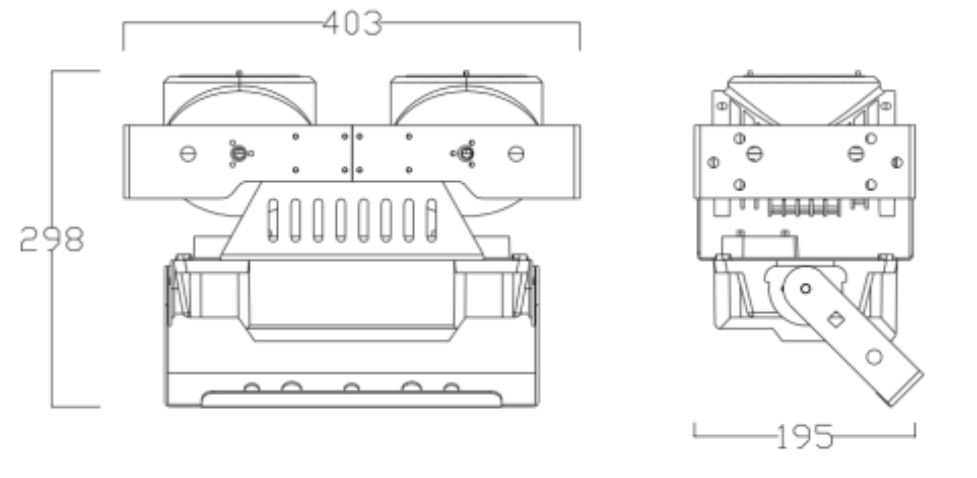

Product Dimensional drawings

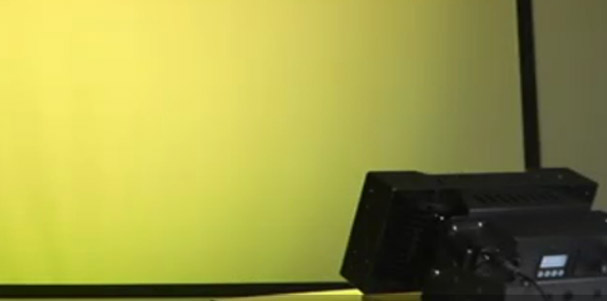

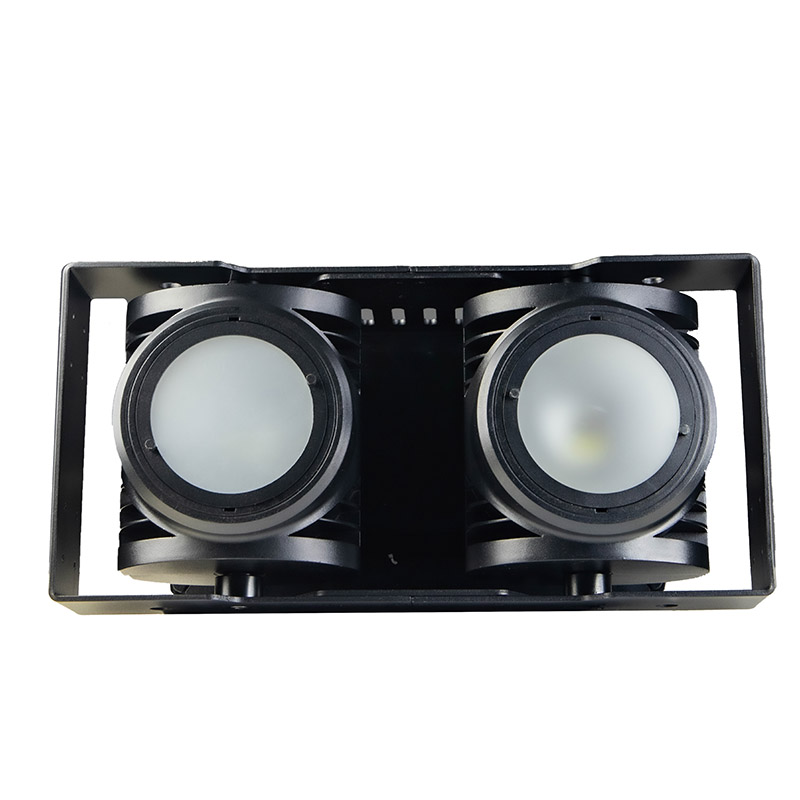

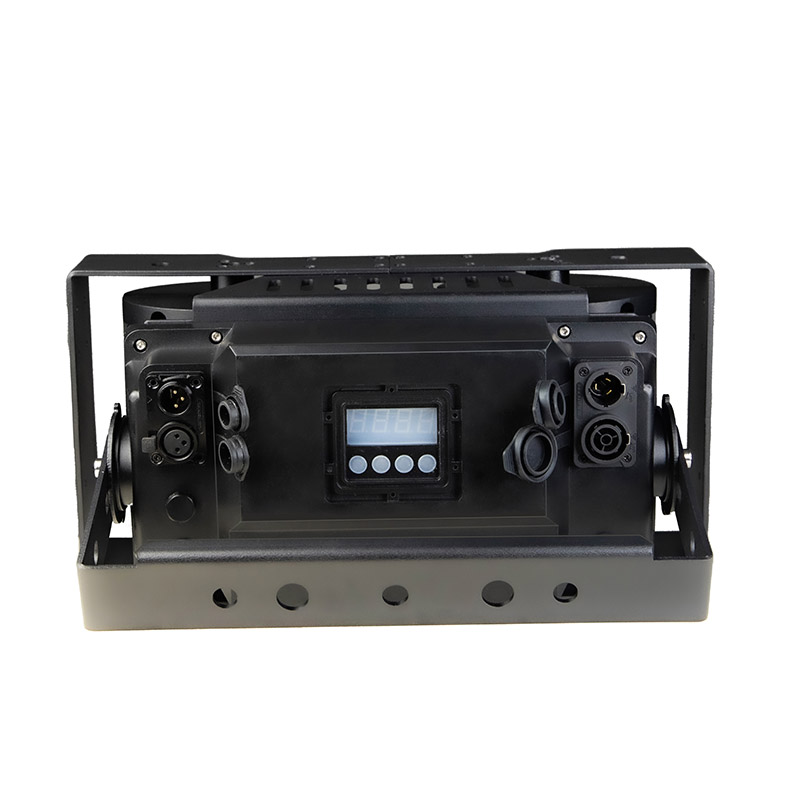

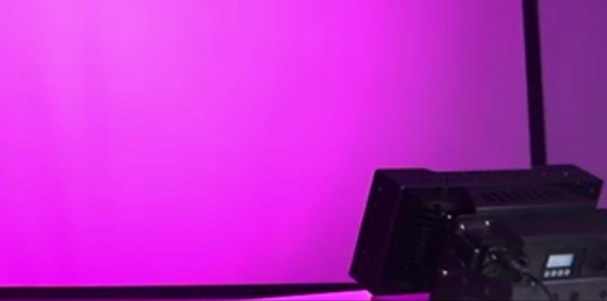

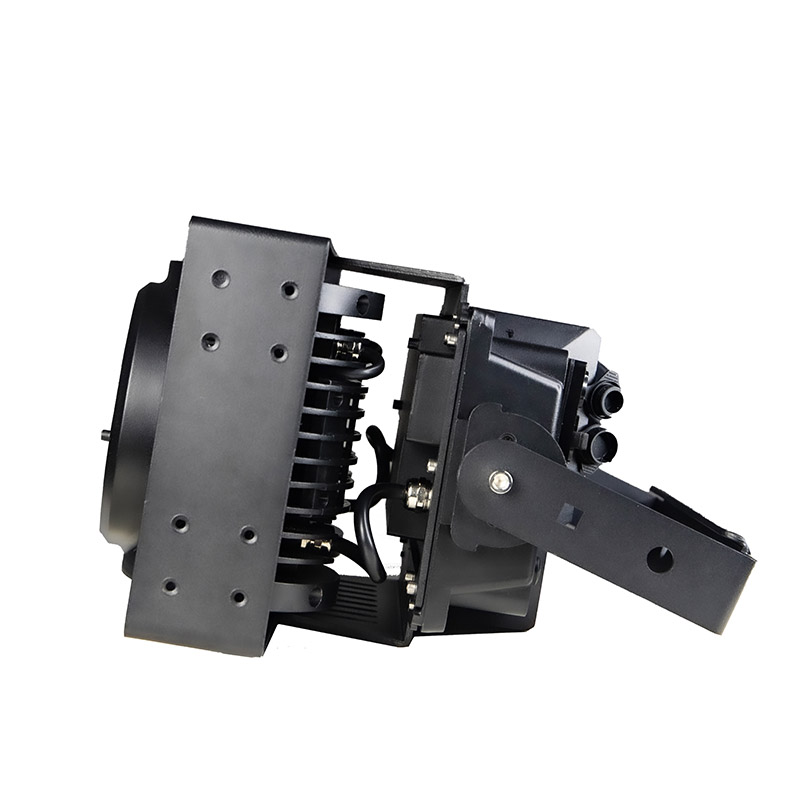

Product display



Work Shop



Products


LED blinder typically consists of an array of high-powered LEDs that can produce a very bright, concentrated beam of light. Stage blinder lights are often used to create dramatic, strobe-like effects, or to illuminate a large area of the stage or venue. They can be controlled using a DMX controller or other lighting control system, and can be programmed to display a wide range of colors, patterns, and effects.


Advantages

1. A stage lighting enterprise that gathers research, production, marketing, and after-sales as integral whole.

2.Top ten Brand enterprises of Stage lighting in China, national intellectual property standard enterprise, Guangdong Province contract abiding enterprise, China Quality credit AAA+ enterprise, etc.

3.More then fifty kinds of goods have been granted“CE” certification.

4.Our goods are popular in Europe and America, Southeast Asia, Russia., etc., more than 60 countries and regions.



About Yellow River

Yellow River lighting -- focusing on stage lighting for 21 years, it is a national high-tech enterprise which provides integrated service of R&D, design, production, marketing and after sales service.Top ten Brand enterprises of Stage lighting in China, national intellectual property standard enterprise, Guangdong Province contract abiding enterprise, China Quality credit AAA+ enterprise, etc. The company has passed ISO9001 quality management system, occupational health and safety management system, environmental management system and other certifications.The products have passed the CE RoHS certification and obtained dozens of patents. More then fifty kinds of goods have been granted “CE” certification. Established in 1999, the staff in Yellow River always take the responsibility “Let the world dance” upon ourself.The senior management team is mostly composed of 6-21 years of senior industry personnel. At present, the company has three R & D centers and three brands: Yellow River Lighting, Yagelai and Yagesi. We have seven offices in China and We have more than 2000 global brand agents and project contractors; Is the preferred manufacturers for your culture and art center, tourism performance, multi-function hall, hotel banquet hall, auditorium, night tour, urban landscape lighting and other projects.
