This is our hot sale 350W/371 W waterproof moving head beam, the IP grade is 55, with 350W /371W Lamp and high-performance waterproof technology. Low consumption and high brightness, energy efficiency, and long life span, combine beam, spot and wash into one, which makes it win the market of the outdoor professional stage.
It has 14 colors+white,semi-color effect, electronic positioning. For the gobo , 4 white holes+10 pcs gobo wheels+1 pcs effect gobo wheel with shaking effect. The prism is 1pcs 32- facet prism & 1pcs 6 linear prism+ 1 pcs bi-layer prism+ 1pcs 16- facet prism & 1pcs 6 linear prism
The beam angle is 4/8 degree, pan movement 540 degrees, tilt 270 degrees.
It also has high efficient cooling system and intelligent speed control fan, which can make the lifespan of the bulb longer.
What do you need to know about LED lamps and lanterns for sales? 30 First understand all the parameters of your product 9r moving head and how to install the application, as well as the situation of competitors, industry conditions, and then understand the needs of customers. Generally, the price of living room Moving Head Beam lamps and lanterns is now available in hundreds to tens of thousands, mainly depending on how to choose! Next, let's talk about how to choose!First of all, safety: you can't blindly covet cheap when choosing lamps and lanterns, but you should first look at their quality and check whether the warranty and certificate are complete. Finally, when cleaning and maintenance, pay attention not to change the structure of the LED PAR Light lamp, nor to replace the parts of the lamp casually. after the cleaning and maintenance, the lamp should be installed as is, do not leak or misfit parts of lamps and lanterns.The product provides instant bright light and no buzzing or flickering to give users the maximum eye comfort.
350W 17R Outdoor moving head beam is a pure beam moving head light designed by YELLOW RIVER for high-end customers. Its beam is very strong . Many different prisms can create prism king effect. The beam angle is 4°/8° switchable, with ultra high illumination, 10 meters illumination reaches 227000lux. Equipped with 14 color plate plus white light, Bi-direction rainbow effect. Bidirectional rotation can reach random color mode. This outdoor moving head beam is very suitable for large-scale performance, Music festival and exhibition and so on. We used this light in many different outdoor projects and its quality is very stable according to our regular and new customers.
Illumination diagram:

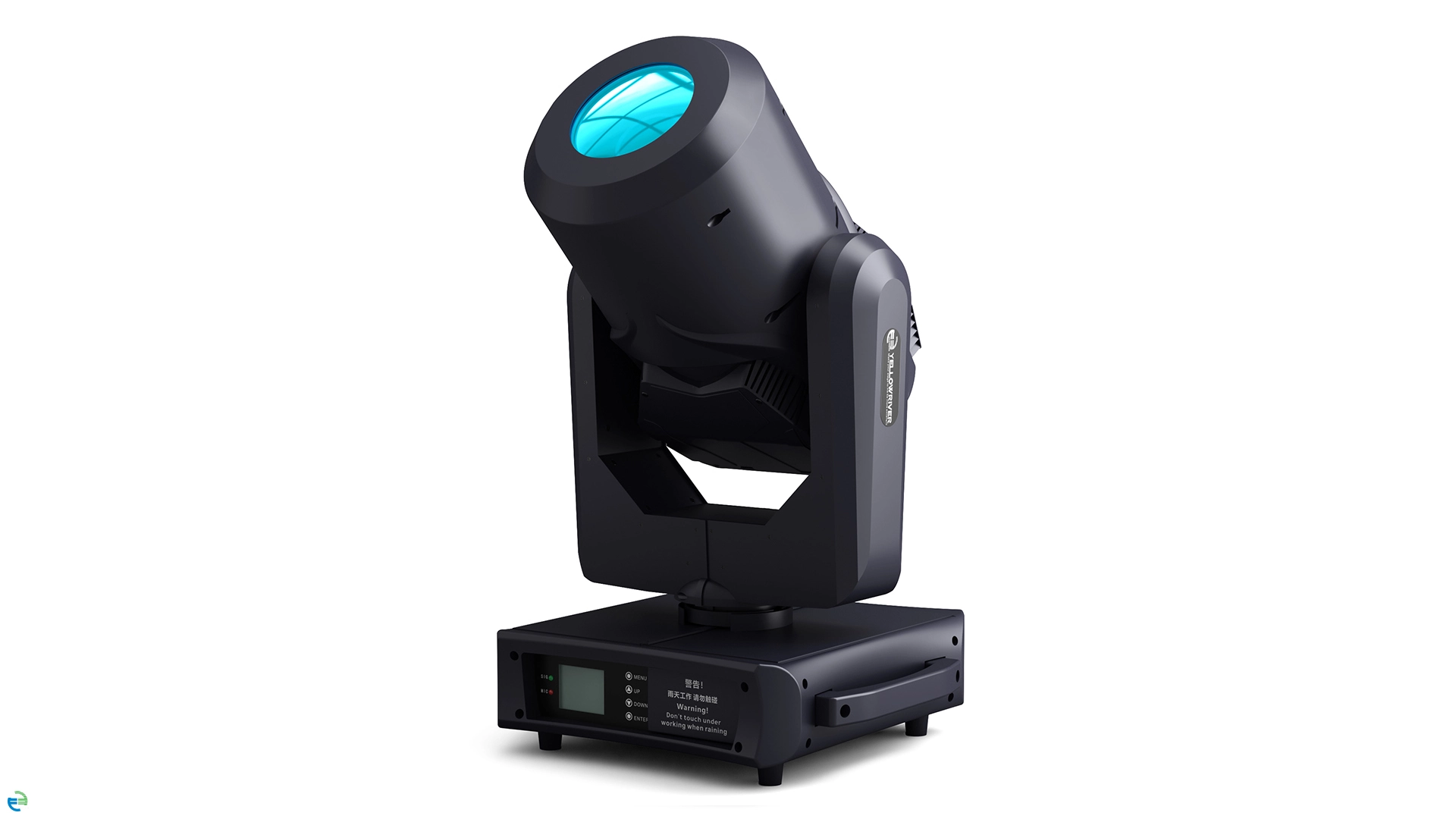

Product Appearance:
Product Features
Power: The fixture has a powerful 350W or 371W lamp that produces a bright and intense beam of light suitable for outdoor use.
Waterproof: This led beam moving head is specifically designed to be waterproof, protecting it from rain and other weather elements that might damage the fixture.
Beam Angle: The fixture offers a narrow beam angle, allowing for precise and focused lighting effects on specific areas or objects.
Movement: The Outdoor 17R 350W/371W Waterproof Moving Head BEAM can rotate 540 degrees horizontally and 270 degrees vertically, providing a wide range of movement options and allowing for dynamic lighting effects.
Control: It is compatible with DMX control systems, allowing for precise control of various lighting parameters such as color, intensity, and movement.
Color Mixing: The moving head sharpy light 350W offers a range of color mixing options, including 14 colors plus white, enabling designers to create a variety of different lighting effects.
Gobo: It comes with a range of gobos (patterns or designs that can be projected onto a surface), allowing for further customization of lighting effects.
If you re looking for moving head beam manufacturers, Yellow River is your best choice! We provide various quality moving head stage light for select!
Product Parameters:
| Electrical | Voltage | 100V ~240V | |
| Power consumption | 450W | ||
| Light Source | Halogen lamp | 17R, 350W/371W OPTIONAL | |
| Control Mode | DMX512 | 16ch/20ch(switchable) | |
| Master/slave | √ | ||
| Auto | √ | ||
| Optical System | Gobo wheel | 10gobo+ 4 white+1 effect gobo,with shaking effect | |
| Color wheel | 14 colors+white | ||
| Prism | Prism wheel1: 32 facet prism + 6 facet gradient prism+1 bi-layer prism Prism wheel2: 16 facet prism + 6 facet gradient prism | ||
| Shutter | 1~13t/s | ||
| Dimmer | 0-100% | ||
| Focus/Zoom | √ | ||
| Beam angle | 4°-8° | ||
| IP Lever | IP55 | ||
| Machine W. Size | 48*41*64CM | ||
| Environment& safety | Level of Protection | IP55 | |
| Stock | Clean and dry place | ||
| Running temp. | -10°C~40°C | ||
| DMX CHANNELS: | |||
| 1 | Color | 1 | Pan |
| 2 | Strobe | 2 | Pan Fine |
| 3 | Dimmer | 3 | Tilt |
| 4 | Fixed Gobo | 4 | Tilt Fine |
| 5 | Prism wheel 1 | 5 | XY Speed |
| 6 | Prism wheel rotate | 6 | Strobe |
| 7 | Prism wheel 2 | 7 | Dimmer |
| 8 | Prism wheel 2 rotate | 8 | Dimmer fine |
| 9 | Effect plate | 9 | Color |
| 10 | Zoom(amplify) | 10 | Fixed Gobo |
| 11 | Focus | 11 | Prism wheel 1 |
| 12 | Pan | 12 | Prism wheel rotate |
| 13 | Tilt | 13 | Prism wheel 2 |
| 14 | Pan/tilt speed | 14 | Prism wheel 2 rotate |
| 15 | lamp | 15 | Macro function |
| 16 | reset | 16 | Effect plate |
| 17 | Zoom(amplify) | ||
| 18 | Focus | ||
| 19 | lamp | ||
| 20 | reset | ||
Light Effect:
