YR-M4012Q with 12pcsX40W 4 in 1 color LED lamp. Zoom angle:9°-53°, the pixel LED control and overall LED control present more patterns to meet the customer application. It support RDM and Artnet (optional). High efficiency cooling system and Intelligent speed control fan enable the unit to work safely and environmentally friendly
Yellow River Professional Yellow river led moving head wash +beam with zoom YR-M4012Q manufacturers,We has seven offices in China and We have more than 2000 global brand agents and project contractors.
The led theatre lights lights on the ceiling suddenly turned off. what happened? Most of the time the lamp is burning.It's possible to see what light you are.Maybe ballast. The power consumption of the optical fiber system is only about 50% of the same Yellow River light source, which fully achieves the purpose of saving energy. it can not only save a lot of construction costs, but also avoid cumbersome maintenance work in the future. Due to the large demand for engineering lamps and lanterns, the development prospects are relatively good. now Engineering lamps have many brands. So, what are the brand of engineering lamps? LED doesn't fail abruptly and relatively has a long useful life. This reduces the cost in terms of maintenance and reduces your headache for periodical replacements.
12*40W LED Moving Head Light is one of the products belonging to the Moving Head Beam+Wash Series, which has beam and wash 2 in 1 effects. LED Moving Head Light uses 12 pieces of 40W RGBW 4 in 1 OSRAM. Its voltage reaches AC100~240V 50/60HZ and its power reaches 570W. According to the user's requirements for different light and beam sensation, 12*40W LED Moving Head Light can provide user to choose from 9 degrees to 53 degrees of beam Angle. LED Moving Head Light can be tilted up to 540 degrees horizontally and 270 degrees vertically and equipped with photoelectric reset and correction. The whole field will be illuminated by the beam and wash effects. 12*40W LED Moving Head Light has powerful color mixing system. It can achieve pixel control and a single LED light flashing. The light will be more concentrated and the sensation of the beam will be enhanced. 12*40W LED Moving Head Light can achieve circle control and circle flashing from the middle to the periphery. 12*40W LED Moving Head Light can achieve full control effect and achieve Led light full flashing. A wide range of beam effects can be achieved without changing the beam Angle. LED Moving Head Light can acheive Fixed background color mixed and Fixed background pixel control successively. Its powerful beam and wash effect can meet the stage performance, banquet hall and other different places to use.

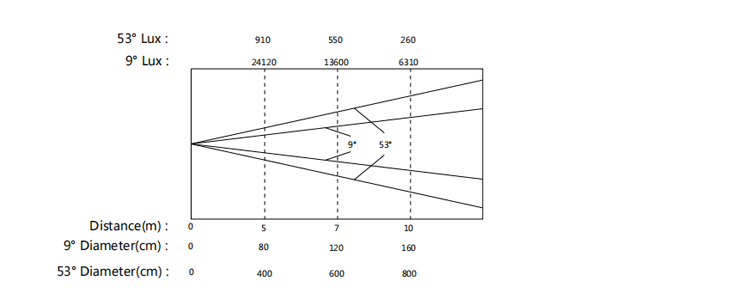

LUX
| Electrical | Voltage | 100V-240V 50-60Hz | |
| Amperage： | 2.5A | ||
| Power consumption | 550W | ||
| Light source | LED lifespan | 50000 hours | |
| LED | 12pcsX40W Osram | ||
| Color | RGBW 4in1 | ||
| Control mode | Control channels | standard mode 17CH/ extended mode 38 CH/pattern mode 18CH/ HSI mode 11CH | |
| DMX512 | √ | ||
| Master/slave | √ | ||
| Network function | Support RDM and DMX software upgrade,Artnet,Klingnet,SACN networking protocol optional | ||
| Optical system | LCD colorful Display | 2.0 inch LCD color screen, can set the channel mode (standard/extended/pattern/HSI) horizontal vertical inversion, back screen, signal hint, switch in both Chinese and English, automatic screen off/lasting bright screen, display channel mode,light source temperature, fan speed, record boot time, and times of start,fault inspection, manual control channel data memory, the software version information, restore factory Settings, scan and color correction | |
| Beam angle | 9°-53°/1.7s | ||
| Dimmer | 0-100%（16bit） | ||
| CCT | 2800K-8500K | ||
| Zoom: | using highly mute motor; accurate zoom, stable beam without shaking | ||
| X/Y scan | Pan 540°,Tilt:270° | ||
| Strobe | 1-20Hz | ||
| features: | 1.High efficiency cooling system, whole-process temperature monitoring. 2.Automatic temperature adjustment and protection when temperature is too high, no risk of LED lamp damage. 3.Intelligent speed control fan, timely display rotation speed. | ||
| Physical | Machine size | size:395*264*470mm | |
| Machine weight | 14.4 KG | ||
| Housing | Flame-retardant plastic | ||
| Environment& safety | Store condition | dry and clean place | |
| Running temp. | 0-40°C | ||
| IP rate | IP20 | ||
Light Effect :

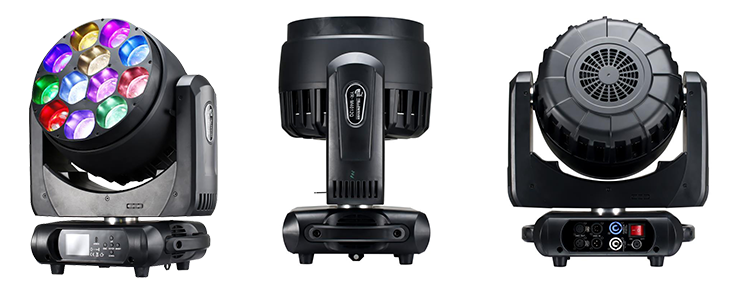

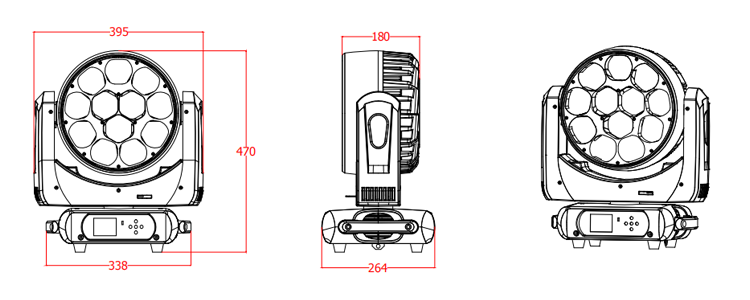

Product Appearance And Size :
yes ,sure.

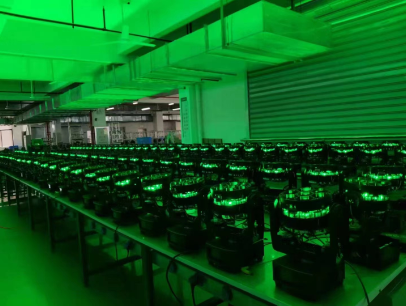

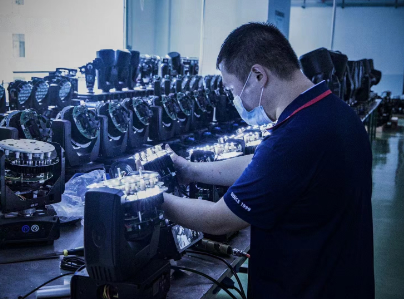

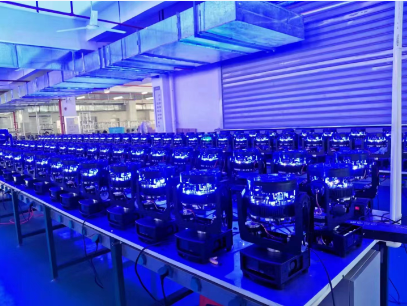

Yellow river factory workshop：
