Yellow River Lighting Since 1999, professional lighting manufacture focusing on Moving head light and Led light!
Yellow River | Wholesale moving head beam light factory
This is one of our popular moving head beams, we used the original Philips lamp and adjusted the inner lighting path structure, thus its brightness is even much better than some 380W moving head beams, its beam is very full and sharp, 450000 lux 10meters. The most important thing is its positioning is very accurate and XY movement is very smooth and fast, 1.9 s for pan, 1 s for tilt, it also support RDM, with touch screen, power-con in and power-con out, etc.
Illumination diagram
What is fiber optic moving head beam light chandelier, what are the visual features? The optical fiber itself only conducts light without conducting electricity. in actual use, the tail end of the optical fiber needs to be connected to the light source device. it only needs to set the function of the light source device, that is, it can simply control the strength of the emitted light, tone and cycle of change. I hope my answer will help you.The floor protection layer is generally more than 2 centimeters, and the 2.5-square-meter moving head beam light lamp line can be cut from 1 centimeters (the line slot is too shallow to go through the pipe), and then the subsequent construction can be carried out with cement mortar. I hope my answer will help you. The living room floor is only 2.6m, and the chandelier is OK. under normal circumstances, the moving head beam light lamp at the bottom of the chandelier is 2.2-3.0 M from the ground.It is more suitable. in this case, most families will use ceiling lamps to decorate rationally. However, in order to meet personal preferences, the chandelier is 1.8-2.0M apart under special circumstances.The product is great for places where lights are cycled on and off quickly because it provides full light right away.
A beam 250w moving head light refers to a lighting fixture that utilizes a 250-watt lamp to produce a concentrated beam of light. It is often used in professional lighting setups for events, concerts, theaters, clubs, and other venues where dynamic and impressive lighting effects are desired. The 250W BEAM is able to emit a super-concentrated solid beam with a beam angle as small as 1.3° and a surprising light output. In addition to the moving head functionality, these fixtures often come equipped with various features such as gobo projection (projecting custom patterns or images), color mixing (creating vibrant color combinations), adjustable beam angles, speed control, strobe and dimming effects, and compatibility with DMX lighting control systems.
With a price-point, physical size and power consumption that disguise its strength and creative potential, this 250W moving head beam enables a new world of expression in touring, events, TV, theatre and installed lighting markets.
Product Parameters:
Electrical | Voltage | 110V ~240V | |
Power consumption | 400W | ||
Light Source | Lamp | ORIGINAL PHILIPS MSD 250W | |
Color temperature | 7800K | ||
Control Mode | DMX512 | 16ch/20ch | |
Master/slave | √ | ||
Auto | √ | ||
RDM | √ | ||
Optical System | Gobo wheel | 13 fixed gobo+white | |
Color wheel | 14 colors+white + semi color effects | ||
Six-color wheel | 1pcs, work with a prism can present the effect of six-color prism | ||
Prism Wheel1 | 1 pcs three layers honeycomb prism | ||
Prism Wheel2 | 1pcs 16 prism | ||
Frost | 1pc frost glass | ||
Shutter | 1-13t/s | ||
Dimmer | 0-100% | ||
Focus | √ | ||
Beam angle | 1.3°, Linear focus | ||
Featured Effect | 1 pcs 14-color+white wheel+semi color effects | ||
Touch Screen Display | Reversible display, English-Chinese language switchable, automatic screen, off/lasting bright screen, record lighting time, the software version information, fault inspection, restore factory Settings | ||
Safety Protection | Will cut off the power automatically when the fixture is overheating or with system error | ||
Machine W. Size | 29*23.5*49.5cm | ||
Net Weight | 13.5kg | ||
DMX CHANNELS: | |||
Channel | 16 | 20 | |
1 | Color Wheel | Color Wheel | |
2 | Strobe | Strobe | |
3 | Dimmer | Dimmer | |
4 | Gobo | Gobo | |
5 | Prism 1 | Prism 1 | |
6 | Prism 1 Rotation | Prism 1 Rotation | |
7 | Prism 2 | Prism 2 | |
8 | Prism 2 Rotation | Prism 2 Rotation | |
9 | Focus | Focus | |
10 | Pan | Pan | |
11 | Pan Fine | Pan Fine | |
12 | Tilt | Tilt | |
13 | Tilt Fine | Tilt Fine | |
14 | Pan/Tilt Speed | Pan/Tilt Speed | |
15 | Frost&6 color wheel | Frost&6 color wheel | |
16 | Lamp On/Reset | Lamp On/Reset | |
17 | / | ||
18 | Color Wheel Speed | ||
19 | Dimmer-Prism-Frost Speed | ||
20 | Gobo Wheel Speed | ||
Features of moving head lights
The beam 250w moving head lights comes with several notable features that contribute to its versatility and functionality. Here are some key features of the fixture:
1. Bright Output: The 250-watt lamp produces a powerful beam of light that can reach long distances and create intense lighting effects.
2. Moving Head Functionality: This fixture is equipped with motorized pan and tilt movements, allowing for precise positioning and directing of the light beam in any direction.
3. Gobo Projection: The moving head beam typically includes a gobo wheel with various patterns or images that can be projected onto surfaces, adding visual interest and texture to your lighting design.
4. Color Mixing: It often features a color wheel with multiple colors, enabling you to create vibrant and dynamic color combinations and transitions.
5. Beam Angle Adjustment: The fixture usually offers adjustable beam angles, allowing you to modify the width and focus of the light beam to suit different requirements.
6. Speed Control: You can control the speed of the moving head movements, gobo rotation, and color changes, allowing for smooth and synchronized transitions.
7. DMX Compatibility: It is typically compatible with DMX lighting control systems, providing seamless integration with other fixtures and enabling you to program and synchronize complex lighting sequences.
8. Strobe and Dimming Effects: The moving head beam often includes adjustable strobe and dimming functions, allowing you to create pulsating or fading effects.
9. Cooling System: The fixture is equipped with an efficient cooling system to prevent overheating during extended use.
These features make the 250w Moving Head Beam a versatile and powerful tool for creating stunning lighting effects in various applications, such as concerts, theaters, clubs, and special events.
Light Effect:

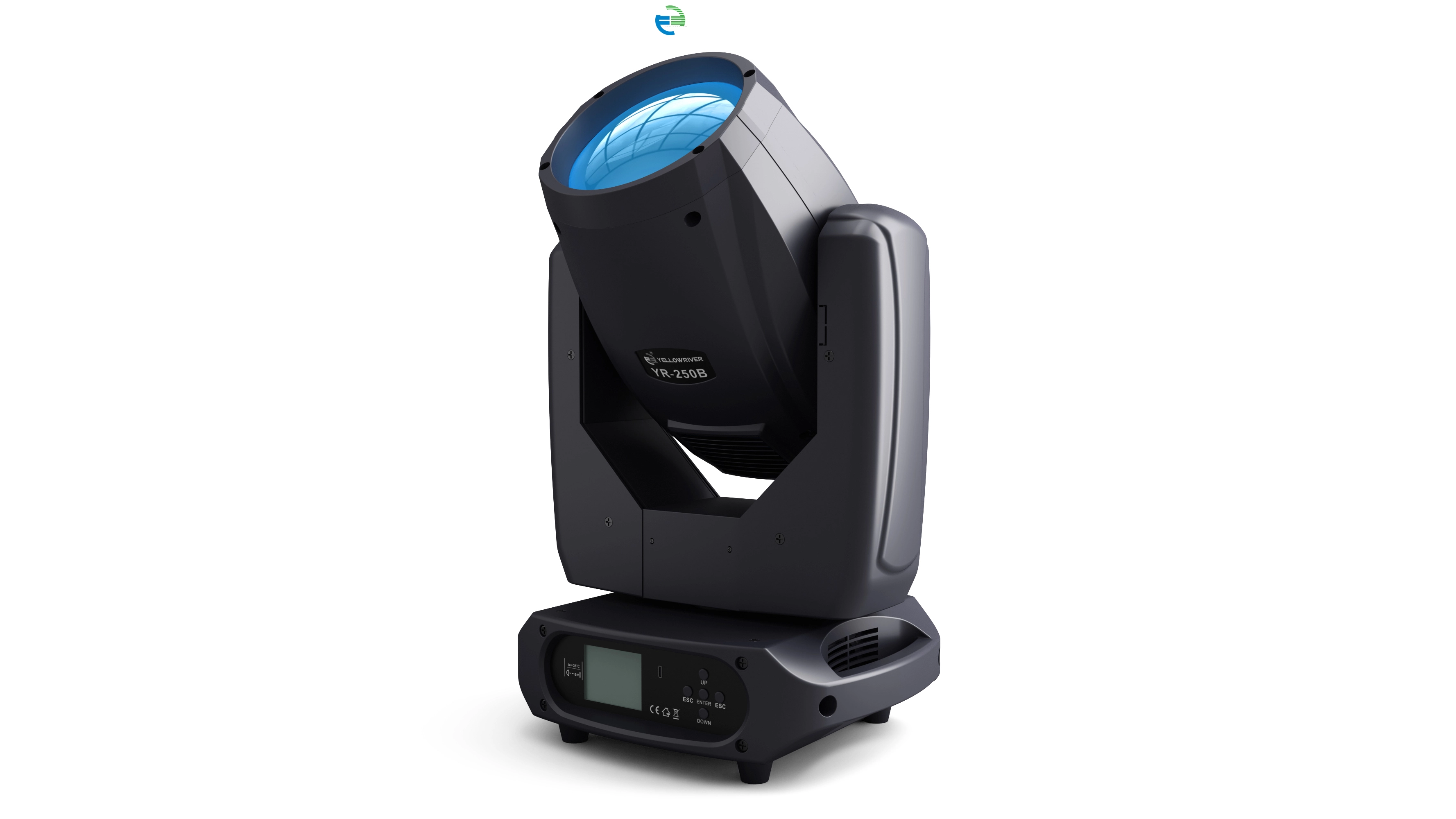

Product Appearance:
Illumination diagram:
Color Wheel & Gobo Wheel：
Workshop:
