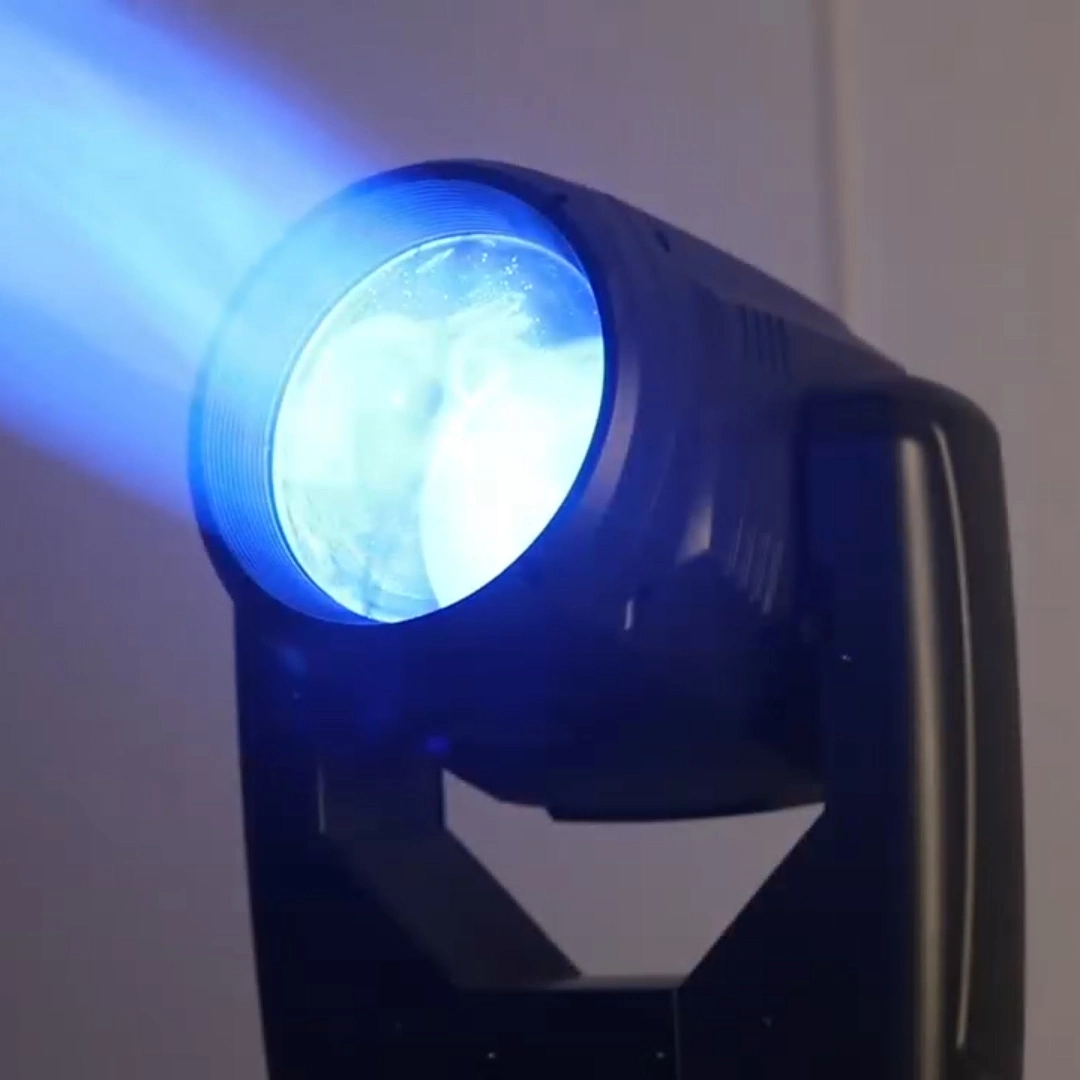

Yellow River Lighting YR-300BF 300W Moving Head Beam Light
◎ 1 pcs 6-color wheel working with prism can present the effect of six-color prism.
◎ 1pcs 24 prism, 1pcs 8+8+8 three-layer honeycomb prism, 1pcs 8 prism, 1pcs six-row prism.
◎ Touch LCD screen, narrow beam angle 1.3°
Product detail
The moving head beam light equipped with 1 piece of 24-prism, 1 piece of 8+8+8 three-layer honeycomb prism, 1 piece of 8-prism, and 1 piece of six-row prism. These prisms support bidirectional variable-speed rotation, feature an angle adjustment function.
In addition, it adopts a 300W light source with strong light efficiency, a color temperature of 8000K, and a lumen output of 14,000 LM. The control methods are flexible, supporting DMX512 + RDM signals, with 16CH standard mode and 20CH extended mode. It can be operated via console, manual control, and other methods, and optional wireless control is available.
heat dissipation system
The heat dissipation system is highly efficient, utilizing a turbine fan for precise air supply combined with high-power fans for convection and exhaust. Coupled with over-temperature protection via high-sensitivity ceramic temperature control, it ensures stable operation. 1 color wheel contains 14 high-gloss coated colors plus white light, supporting various color transformation effects; the gobo wheel offers 13 patterns plus white light, enabling variable-speed jitter and bidirectional flow effects.
With a net weight of only 14KG, it is relatively lightweight among similar products, featuring powerful and practical overall performance.
Product Parameters
| Electrical | Voltage | 110V ~240V | |
| Power consumption | 450W | ||
| Light Source | Lamp | 300W | |
| Color temperature | 8000K | ||
| Control Mode | DMX512 | 16ch/20ch | |
| Master/slave | √ | ||
| Auto | √ | ||
| RDM | √ | ||
| Optical System | Gobo wheel | 13 gobos + white light | |
| Color wheel | 14 high gloss coated colors + white light | ||
| Six-color wheel | 6 high-gloss coated colors, combined with the prism can produce a six-color prism effect | ||
| Prism | 1pcs 24 prism, 1pcs 8+8+8 three-layer honeycomb prism, 1pcs 8 prism, 1pcs six-row prism | ||
| Frost | 1pc frost glass | ||
| Shutter | 1-13t/s | ||
| Dimmer | 0-100% | ||
| Focus | √ | ||
| Beam angle | 1.3°, Linear focus | ||
| Featured Effect | 1pcs 24 prism; 1pcs 8+8+8 three-layer honeycomb prism; 1pcs 8 prism; 1pcs six-row prism |
||
| Display | Touch screen, the screen can be reversed, Chinese and English switching, automatic screen off/long lasting screen on, display the lighting time, fault detection and control, software version information, can restore factory Settings. | ||
| Satety Protection | Will cut off the power automatically when the fixtiure is overheating or with system error. | ||
| Net Weight | 14kg | ||
