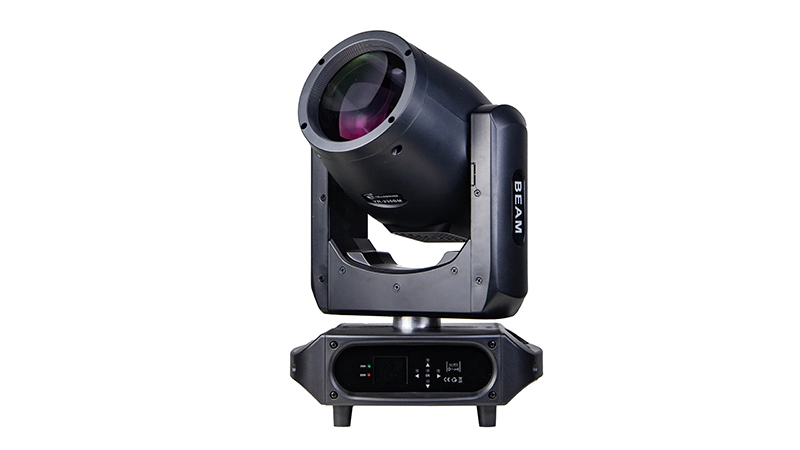

230W 7R Moving Head Beam YR-230BM
High quality 7R 230W moving light is widely used in touring concert, big events, pageants and so on. High level qualification ensures perfect cooling system, which ensure longer life span of the bulb. Moreover ,this light has RDM function which is convenient to set address code through big and professtional controller.
Feature:
◎ Improved cooling system
◎ 1 color wheel: 13 colors + white
◎ 1 three-layer 8+16+24 prism, 1 pc independent atomizing glass and 1pc 6 colors rainbow glass
◎ High-speed silent fan
◎ Electronic focus
◎ Pan 540° , tilt:270°
◎ LCD display , Beam Angel: 1.3 degrees
Product Parameters
The 230W 7R BEAM has an even more compact body - height is only 440mm - and is able to emit a super-concentrated solid beam with a beam angle as small as 1.3° and a surprising light output. The good quality and fantasic beam effects makes this 230W 7R moving head beam the ideal beam moving light in any application area, and the perfect replacement of normal old 7R in the market!
Despite its small size, the 7R 230W moving light offers a powerful output. It uses a 230-watt discharge lamp, which produces a bright and intense beam of light. This brightness ensures visibility even in large venues or outdoor settings. With a price-point, physical size and power consumption that disguise its strength and creative potential, this new 7R enables a new world of expression in touring, events, TV, theatre and installed lighting markets.
 |  |
| Electrical | Voltage | AC100V-240V（50/60HZ） | |
| Power consumption | 400W | ||
| Light Source | Lamp | 7R 230W | |
| Color temperature | 7000K | ||
| Control Mode | DMX512 | 16CH/20CH | |
| Master/slave | √ | ||
| Auto | √ | ||
| RDM | √ | ||
| Optical System | Color wheel： | 1 color wheel: 13 colors + white | |
| Color wheel： | 1pc 6 colors rainbow glass | ||
| Gobo wheel | 1 metal gobo wheel: 14 gobos + white, with shake & flow effect | ||
| Prism Wheel | 1 three-layer 8+16+24 prism， 1pc 6 colors rainbow glass | ||
| Atomization | 1 independent atomizing glass. | ||
| Dimmer | 0-100%Linear Dimming | ||
| Beam angle | 1.3° | ||
| Featured Effect | 1 color wheel: 13 colors + white 1 metal gobo wheel: 14 gobos + white, with shake & flow effect 1 independent atomizing glasst 1 three-layer 8+16+24 prism | ||
| LCD Screen Display | LCD screen, the screen can be reversed, Chinese & English switchable, it can display working time for the bright led, with fault detection and control function, and factory settings can be restored. | ||
| Satety Protection | automatically cut off the power when the machine overheats or system fails | ||
| Machine W. Size | 28.4*23.3*44.1cm | ||
| Net Weight | 10.8KG | ||
 |  |
The 7R 230W beam light moving head is known for its versatility. It offers various features such as motorized focus, zoom, and prism effects, allowing for precise control and customization of the light beam. This versatility enables lighting designers to create different effects and atmospheres to suit their production needs. Our 7R 230W moving light enables precise control over its functions, such as dimming, strobing, and movement, enhancing the overall lighting design.
Advantages
1. High Intensity: The beam 230 moving head provides a powerful beam of light, allowing for long-distance projection and excellent visibility on stage. Its high intensity ensures that the lighting effects are impactful and can effectively illuminate the performance area.
2. Versatility: The 7r 230w beam moving head offers a wide range of creative possibilities. With features like rotating gobos, color wheels, prism effects, and strobe capabilities, it allows lighting designers to create dynamic and visually stunning effects, enhancing the overall atmosphere and visual appeal of the production.
3. Precise Beam Control: The narrow beam angle of the fixture enables precise and focused beam projection. This allows for accurate highlighting of specific areas, individuals, or objects on stage, adding depth and dimension to the performance.
