Which good repair LED ceiling lamp and LED chandelier Maintenance of lamps? General lamps and lanterns do not need to be repaired for decades, just change the bulb.It's very simple. it's not difficult.Just change the led strobe lights light bulb. furniture lamps and lanterns are mainly those lamps and lanterns that we live in daily life, and engineering lamps and lanterns must be used in construction projects, led strobe lights light fixtures are needed in hotels, hotels, exhibitions, banquet halls, cinemas, shopping malls, etc. The appearance of the project lamps is gorgeous, and all kinds of lights can be distributed, which has a certain decorative effect. Select spotlights (ceiling lamps) Note: Now the ceiling spotlights are divided into frosted, lens and metal categories. when selecting, you should choose one lens. this kind of transparency is stronger, the lamp bead is divided into 1 W and 0.75W.Users are no need to worry about touching the bulbs when lit. Because this product operates at a very low temperature, which makes it safe to touch at all times.
The stage PAR light with ring effect is designed for stages and theatres, it features a compact yet powerful LED lamp enclosed within a sleek circular frame. With its ability to produce vibrant colors and generate stunning visual effects, the stage par light illuminates any performance space with an unparalleled brilliance. The added ring effect further adds depth and dimension to the lighting design, allowing for captivating illusions and mesmerizing scenes on stage. Its versatility knows no bounds, as it can be easily controlled through DMX or operated in standalone mode using its user-friendly interface. Whether used individually or seamlessly synchronized with other lights, this remarkable stage par light creates an immersive ambiance that captivates audiences and elevates any live production to new heights of artistry.
Product Parameters
Electrical | voltage | 110V ~ 240V | ||
power consumption | 150W | |||
Light source | LED | 10W*12pcs | ||
Color | 12x10W(4 in 1RGBW )+96*0.2W(3 in 1RGB) | |||
Control mode | DMX512 | 5/9/12/56ch | ||
Master/slave | √ | |||
Manual control | √ | |||
Sound Active | √ | |||
auto | √ | |||
Optical system | Beam Angle | 25° | ||
Dimmer | 0~100% line dimmer | |||
Strobe | 0-20Hz | |||
Noise | Noise mode | Intelligent temperature, active heat dissipation,silent below 40 degrees, fan begin to work when temperature above 40 degrees. maximum noise is 43.0dBA from 1 meter away (close to ambient noise),you can choose to turn off fan and use silent mode without any noise , but power will reduce according to temperature to keep led lamp safe when temperature above 80 degree. | ||
Physical | Machine size | 28.2x13.9x25.3cm(excluding hook) | ||
Machine weight | 3kg | |||
Environment& safty | Stock | dry and clean place | ||
Running temp. | 40°C Max |
CHANNEL CHART | CH5 MODE | CH9 MODE | CH12 MODE | CH56 MODE |
CH 1 | Dimmer | Ring and coloring options | Ring and coloring options | Ring and coloring options |
CH 2 | RED | Dimmer | Dimmer | Dimmer |
CH 3 | GREEN | Strobe | Strobe | RED Wash |
CH 4 | BLUE | RED | RED Wash | GREEN Wash |
CH 5 | WHITE | GREEN | GREEN Wash | BLUE Wash |
CH 6 | BLUE | BLUE Wash | WHITE Wash | |
CH 7 | WHITE | WHITE Wash | Ring Section 1 RED | |
CH 8 | Static Color mixing + Auto | RED Ring | Ring Section1 GREEN | |
CH 9 | GREEN Ring | Ring Section1 BLUE | ||
CH 10 | BLUE Ring | ....... | ||
CH 11 | Static Color mixing + Auto | Ring Section16 RED | ||
CH 12 | Auto Speed | Ring Section16 GREEN | ||
Ring Section16 BLUE | ||||
Static Color mixing + Auto | ||||
Auto Speed |

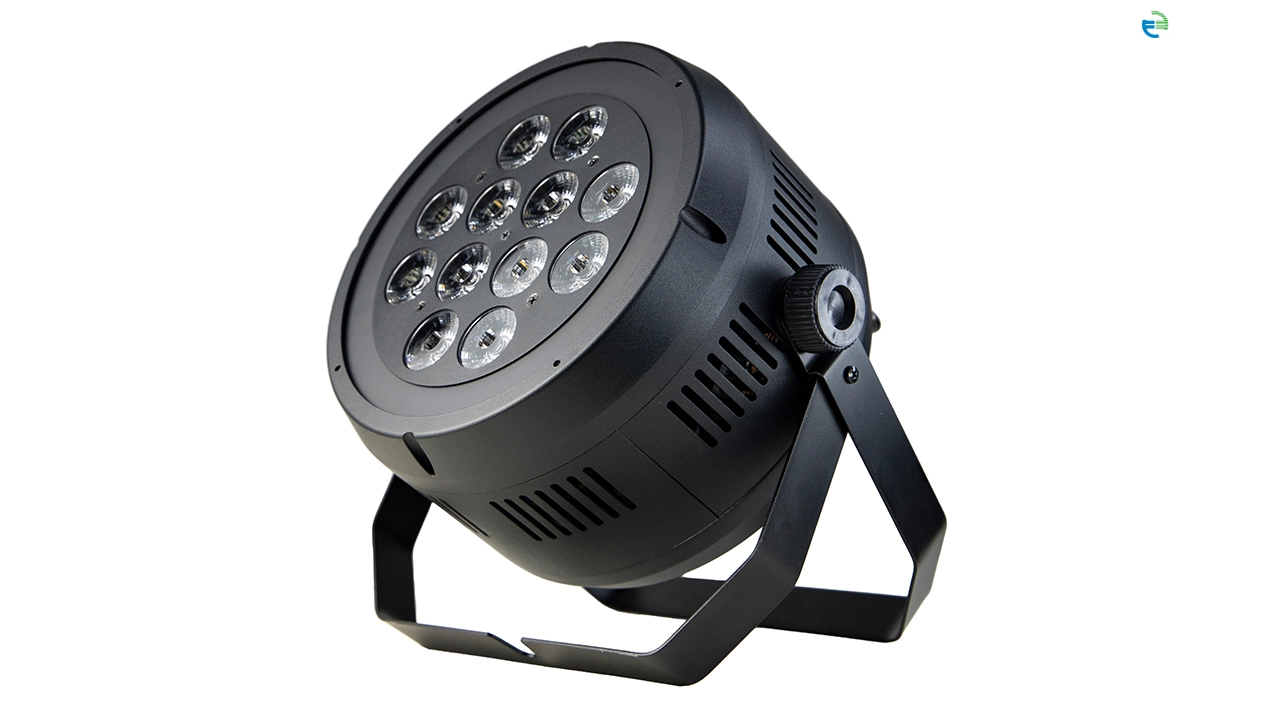

YR-N12A is a LED Indoor Par Light WITH RING EFFECT. The Light sources of its are 12pcs x10W(4-in-1 RGBW) and 96pcs x0.2W(3-in-1 RGB) in the ring , Light source life up to 50,000 hours. The control signal including DMX512(Digital MultipleX 512) and RDM, in line with the international standard light control transmission protocol, support console set address code, support DMX interface upgrade software. And it has different operation mode: Console, manual, master/slave, optional WIFI+ mobile APP control. What’s more, the fan is silent when it is turned off below 40 degrees, and the fan starts to rotate when it is above 40 degrees. Operating voltage of YR-N12A is AC100V-240V (50/60HZ),Rated total power is 150W, and Power factor is 0.56. Ambient temperature should lower than 40 ° C. The Case material of YR-N12A are Engineering aluminum alloy (high temperature resistance), fine sand paint (high-end wear-resistant). And it has Display that is LED highlighting red digital tube +4 mechanical buttons, supporting 30 seconds off screen and continuous bright screen dual mode. Its Handles are Limit double handle, flat anti-slip. The power interface are twisted crisp head, one blue (in) and one white (out). Signal interface: signal socket 3 core male + female, can plug DMX512 wireless signal receiver. And the IP rate is IP20.
Inner Carton Packing | Weight (1 unit) | 4KG | ||
size (1 unit) | 29.5*29.5*32.5CM | |||
Master Carton Pcking | Weight (4 unit) | 16.8KG | ||
size (4 unit) | 60*60*32.5CM | |||
Accessary | 1 signal cable & 1 power cable |
