Yellow River Lighting Since 1999, professional lighting manufacture focusing on Moving head light and Led light!

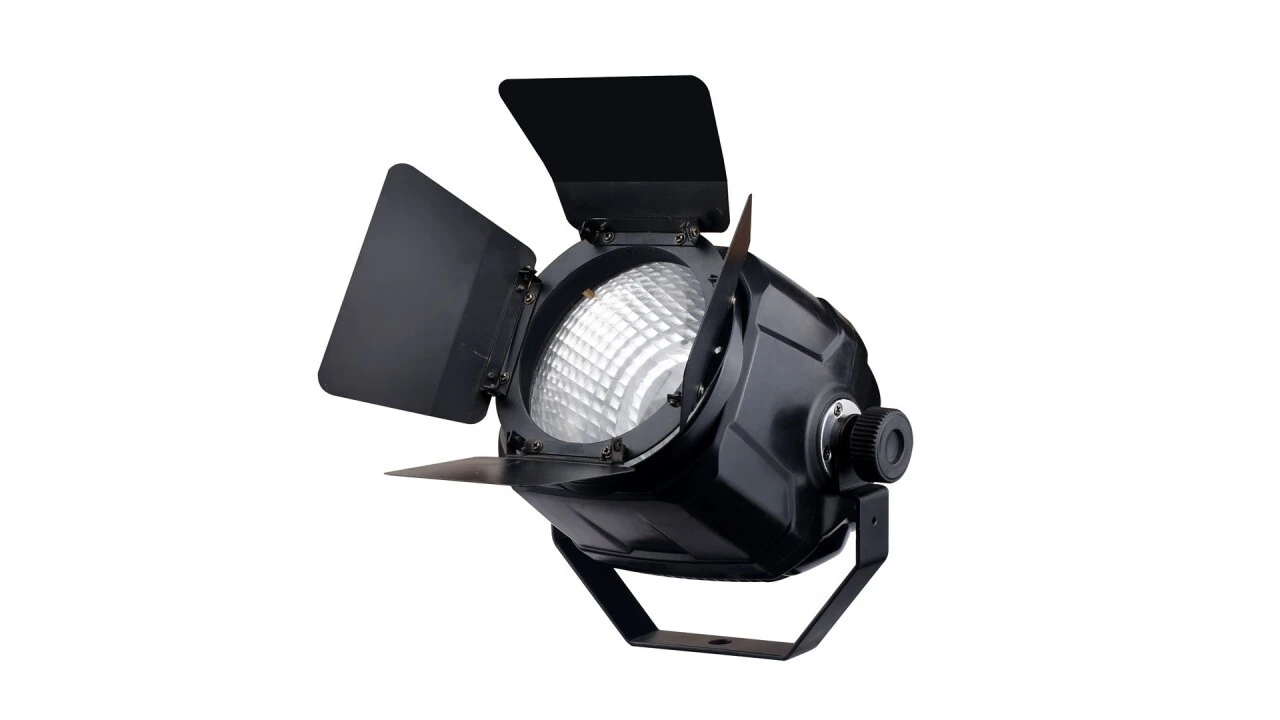

COB 100W LED light, compact size, lightweight, temperature control fan, adjustable barn-door, and advanced dimmer system, its lens is 60 degrees and you also can add fresnel lens to change its beam angle into 25 degrees. For the temperature control fan, the fan will only work when the temperature of led board reach to 58-60 degree and, it will stop working when temperature under 40 degree.
We can do warm white, pure white, RGB 3 IN1, and bi-color for the led source. Although its main body is ABS, other metal materials are environmentally friendly, if you want, we also can make it completely pass RoHS.
Yellow River Professional Yellow river COB 100W LED Light YR-COB100W manufacturers,The products have passed the CE RoHS certification and obtained dozens of patents.
COB 100W LED light, compact size, lightweight, temperature control fan, adjustable barn-door, and advanced dimmer system, its lens is 60 degrees and you also can add fresnel lens to change its beam angle into 25 degrees. For the temperature control fan, the fan will only work when the temperature of led board reach to 58-60 degree and, it will stop working when temperature under 40 degree.
We can do warm white, pure white, RGB 3 IN1, and bi-color for the led source. Although its main body is ABS, other metal materials are environmentally friendly, if you want, we also can make it completely pass RoHS.
LUX
Product Parameters :
Electrical | Voltage | 110V ~ 240V 50-60Hz | |
Power Consumption | 100W | ||
Light source | LED | 100W | |
Color | 100W Warm White 3200K | ||
Control mode | DMX512 | 3CH/1CH | |
Master/slave | √ | ||
Manual Control | √ | ||
Housing | Light Body Material | ABS | |
Optical System | Lens Angle | 60°(can change by adding the barndoors) 35° fresnel lens for option | |
IP Rate | IP20 | ||
Phisical | Size | 150Lx220Wx195H(mm) | |
Weight | 1.5KG | ||
Environment & safty | Stock | dry place | |
Min Working Temperature | –20°C | ||
Max Working Temperature | 40°C | ||
Lux@(w/o fresnel lens/w/fresnel lens) | Full Color | 2 Meter | 1 Meter |
Full Color | 2650 Lux without fresnel lens | 6500Lux without fresnel lens | |
2900Lux with fresnel lens | 10,200Lux with fresnel lens | ||
Noise | No noise under 58℃, 44.0dBA @0.5meter(above 58℃), 46.1dBA close to fixture | ||
Temperature Control Fan | with low noise temperature control fan, the fan will work until the led board reach 58~60℃, and the fan will stop working when the fan reduce to 40℃ | ||
CHANNEL CHART | |||
CH | Dimmer | Dimmer | |
CH1 | Flash | ||
CH2 | Macro Function |
Product Appearance And Size :
