Moving head beam 420W YELLOW RIVER

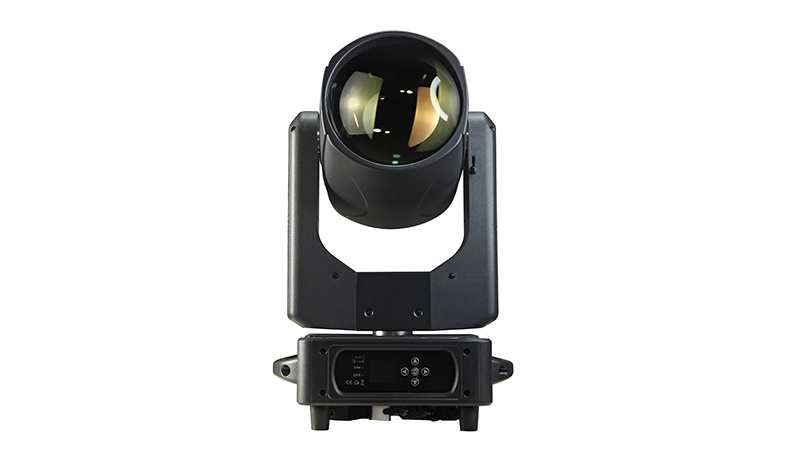

YR-420B is a moving head beam light. It is a light that with strong power and the beam effect is the highlight. The light Angle of the whole light is 1.4°, which can achieve focusing and sharp beam. The appearance of the lamp body is simple and atmospheric, which can meet the needs of different places. It has 1pcs color wheel: 13 high-gloss coating colors (including 1 CTO and 1 CTB) + white light. It also has 1 metal gobo plate: 17 gobo + white light, step conversion pattern, with variable speed jitter, two-way variable speed flow effect. You can use it in many cases. Moving head beam is a classics product that is used in stage. It is worth for getting to know this product.


Feature:

◎  focusing and sharp beam

◎  including  CTO and  CTB

◎  Six-color wheel

    oops...!

    no product data.

    Go to homepage

    YR-420B is a moving head beam light. The light Angle of the whole lamp is 1.4°, which can achieve focusing and sharp beam. The appearance of the lamp body is simple and atmospheric, which can meet the needs of different places.

    Product Parameters


    Light sourceLight source420W
    Lifespan3,000 hours
    Color temperature7600K
    Control parametersOptical path lenscombined lens, the light Angle of the whole lamp is 1.4°, which can achieve focusing and sharp beam
    Stroboscopictwo-piece stroboscopic 1-30 times/second, support pulse stroboscopic + effect stroboscopic + random stroboscopic
    Dimming Linear dimming
    Control signalDMX512(Digital MultipleX 512)+RDM, in line with international standard light control
    Control channel16/20 channel
    Operation modeconsole, manual, master-slave, optional DMX512 wireless signal control
    Heat dissipation of light source2pcs 4-line turbine fans + gyroscope control the rotation of the fan at different angles to accurately blow the lamp +2 high-power fans convection air, active heat dissipation, to ensure more stable products.
    Color1pcscolor wheel 13 high-gloss coating colors (including 1 CTO and 1 CTB) + white light
    Gobo 1 metal gobo plate 17 gobo + white light, step conversion pattern, with variable speed jitter, two-way variable speed flow effect
    Prism1pcs 8 prism +1pcs 8+16 double-layer honeycomb prism, superimposed to obtain 16+24 double-layer prism, can be independently rotated, with two-way variable speed rotation effect
    Six-color wheel 6 high-gloss coating colors, with prism can produce six-color prism effect
    Frost1 independent frost plate, which can convert the beam into dyeing effect
    Scanninghorizontal 540 degrees 2.3S/ cycle, vertical 270 degrees 1.2S/ cycle, three-phase motor
    Display functiontouch screen, screen can be reversed, switch between Chinese and English, automatic screen off/permanent screen
    Over temperature protection high sensitivity ceramic temperature control full control
    Safety protectionAutomatically cut off the power supply when the body overheats or the system fails
    Working parametersOperating voltageAC100V-240V (50/60HZ)
    Total rated power800W
    Power factor0.99
    Rated current3.64A
    Maximum ambient temperature40 degrees
    Light parametersIP rateIP20
    Net weight18KG


    1Color wheel000-004White light
    005 -009White light + Color 1
    010 - 014Color 1
    015 - 019Color 1+ color 2
    020 - 024Color 2
    025 - 029Color 2+ color 3
    030 - 034Color 3
    035 - 039Color 3+ color 4
    040 - 044Color 4
    1Color wheel045 - 049Color 4+ color 5
    050 - 054Color 5
    055 - 059Color 5+ color 6
    060 - 064Color 6
    065 - 069Color 6+ color 7
    070 - 074Color 7
    075 - 079Color 7+ color 8
    080 - 084Color 8
    085 - 089Color 8+ color 9
    090 - 094Color 9
    095 - 099Color 9+ color 10
    100 -104Color 10
    105 -109Color 10+ color 11
    110 -114Color 11
    115 -119Color 11+ color 12
    120 -124Color 12
    125 -129Color 12+ color 13
    130 -134Color 13
    135 -139Color 13+ white light
    140 - 200Forward flow (fast to slow)
    201 - 255Reverse flow (slow to fast)
    2stroboscopic000-003Shutter off
    004-103Stroboscopic from slow to fast
    104-107Light gate open
    108-207Pulse stroboscopic from slow to fast
    208-212Light gate open
    213-251Random stroboscopic from slow to fast
    252-255Light gate open
    3dimming000-255From dark to light
    4Gobo wheel000 - 004Fixed gobo 1
    005 - 009Fixed gobo 2
    010 - 014Fixed gobo 3
    015 - 019Fixed gobo 4
    020 - 024Fixed gobo 5
    025 - 029Fixed gobo 6
    030 - 034Fixed gobo 7
    035 - 039Fixed gobo 8
    040 - 044Fixed gobo 9
    045 - 049Fixed gobo 10
    4Gobo wheel050 - 054Fixed gobo 11
    055 - 059Fixed gobo 12
    060 - 064Fixed gobo 13
    065 - 069Fixed gobo 14
    070 - 074Fixed gobo 15
    075 - 079Fixed gobo 16
    080 - 084Fixed gobo 17
    085 - 089Fixed gobo 18
    090 - 094fixed gobo 1 Jitter(from slow to fast)
    095 - 099fixed gobo 2 Jitter (from slow to fast)
    100 - 104fixed gobo 3 Jitter (from slow to fast)
    105 - 109fixed gobo 4 Jitter (from slow to fast)
    110 - 114fixed gobo 5 Jitter (from slow to fast)
    115 - 119fixed gobo 6 Jitter (from slow to fast)
    120 - 124fixed gobo 7 Jitter (from slow to fast)
    125 - 129fixed gobo 8 Jitter(from slow to fast)
    130 - 134fixed gobo 9 Jitter(from slow to fast)
    135 - 139fixed gobo 10 Jitter (from slow to fast)
    140 - 144fixed gobo 11 Jitter(from slow to fast)
    145 - 149fixed gobo 12 Jitter (from slow to fast)
    150 - 154fixed gobo 13 Jitter (from slow to fast)
    155 - 159fixed gobo 14 Jitter (from slow to fast)
    160 - 164fixed gobo 15 Jitter(from slow to fast)
    165 - 169fixed gobo 16 Jitter (from slow to fast)
    170 - 174fixed gobo 17 Jitter (from slow to fast)
    175 - 179fixed gobo 18 Jitter (from slow to fast)
    180 - 220Reverse flow (fast to slow)
    221 - 255Forward flow (slow to fast)
    5Prism 1000-127Prism 1 ejection
    128-255Prism 1 entry
    6Prism 1 rotation000-127Prism Angle adjustment
    128-190Reverse rotation (fast to slow)
    6Prism 1 rotation191-192stop
    193-255Forward rotation (slow to fast)
    7Prism 2000-127Prism 2 ejection
    128-255Prism 2 insertion
    8Prism 2 rotation000-127Prism Angle adjustment
    128-190Reverse rotation (fast to slow)
    191-192stop
    193-255Forward rotation (slow to fast)
    9focusing000-255Pattern clarity from far to near
    10X-axis000-255Horizontal 540 degree scan
    11X-axis trim000-255Horizontal 1.2 degree fine adjustment
    12Y-axis000-255Vertical 270 degree scan
    13Y-axis fine-tuning000-255Vertical 1.2 degree fine adjustment
    14Frost000-127empty
    128-255Frost cut
    15Rainbow effect000-127Empty
    128-255Multi color cut
    16Lamp & reset000-099Invalid area
    100-105Put out the bulb
    200-205Light a bulb
    210-215XY motor reset


    220-225Small motor reset
    250-255Full lamp reset
    17XY velocity

    18Color wheel speed

    19Dimming - Prism - frost speed000-255Speed from fast to slow
    20Gobo speed
