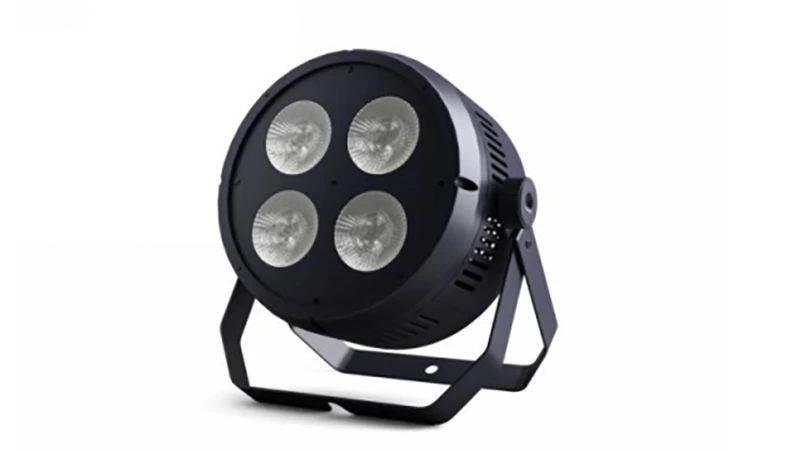

YELLOW RIVER LED Indoor Par Light 4*50W 4IN1 YR-N04Q
The YR-N04Q, a versatile LED Indoor Par Light featuring 4x50W RGBW 4 IN 1 light sources with a robust 50,000-hour lifespan. This fixture offers a 25-degree beam angle and a range of control options, including DMX512+RDM for 9 channels and 6 channels, enabling dynamic effects like stroboscopic and dimming.
YR-N04Q is a LED par light that with 4pcs Lamps. The color is RGBW 4 in 1. LED par light as a lighting tool of LED light source, LED lamp compared with traditional lamp, more rich color.
Equipped with intelligent temperature control and a silent fan system, the YR-N04Q operates efficiently in ambient temperatures below 40 degrees. It also boasts over-temperature protection and real-time monitoring for reliability.
With an engineering aluminum alloy case and fine sand paint, this light is both heat and wear-resistant. The user-friendly interface includes a touch screen, 4 buttons, and support for 30-second blackout and continuous brightness modes. The YR-N04Q is designed for professional use, weighing 2.9KG and featuring a waterproof grade of IP20. Enjoy smooth dimming, stroboscopic effects, and intelligent cooling with minimal noise, making it perfect for any indoor event.
Personalize your stage lighting with our professional manufactory's expertise. Our LED par lights are designed to be adaptable, allowing you to create a unique lighting experience tailored to your specific needs. From small stages to large arenas, our stage lights ensure every performance is a spectacle.
Product Parameters
| Light source | Light source | 4x50W(RGBW 4 IN 1) | |
| Lifespan | 50,000 hours | ||
| Antistatic | up to 2000V HBM | ||

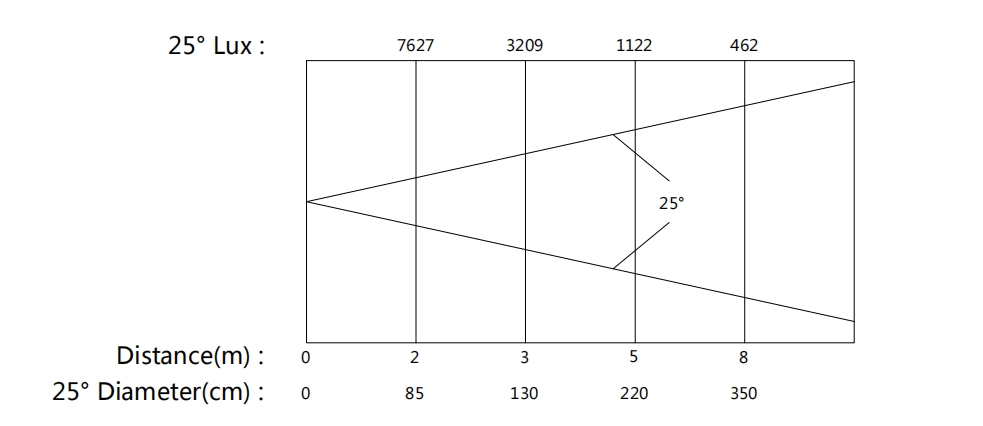

| Light Angle | 25 degrees | ||
| Control parameters | Strobe | 0-20Hz, standard stroboscopic | |
| Dimming | Standard linear dimming | ||
| Control signal | DMX512(Digital MultipleX 512)+RDM | ||
| Control channel | 9 channels, 6 channels | ||
| Operation mode | console, manual, master-slave, optional WIFI+ mobile APP control | ||
| Cooling mode | Fan temperature control start, by fin + fan for heat dissipation | ||
| Color | RGBW | ||
| Noise | intelligent temperature, active heat dissipation, the fan is silent when it is turned off below 40 degrees, the fan starts to rotate above 40 degrees, the maximum noise is 43.0dBA(close to the ambient noise), and the fan is silent and intelligent power reduction can be selected | ||
| Scanning | horizontal 540 degrees 3.2S/ cycle, vertical 270 degrees 1.3S/ cycle, three-phase motor, using photoelectric reset + Hall correction double precision reset, so that positioning is more accurate, while automatic error correction, with automatic return function | ||
| Over temperature protection | reduced power protection at high temperature above 80 degrees | ||
| Real-time monitoring | light source temperature, signal display | ||
| Working parameters | Working voltage | AC100V-240V (50/60HZ) | |
| Rated total power | 220W | ||
| Power factor | 0.56 | ||
| Rated current | 1.0A | ||
| Maximum operating temperature | <40 degrees | ||
| Signal interface | Signal socket 3 sin male + female, can plug DMX512 wireless signal receiver | ||
| Signal interface | IP rate: IP20 | ||
| IP rate | IP20 | ||
| Net weight | 2.9KG | ||
| 9CH： | |||
| S/N | Function | Description | |
| CH1 | Total dimmer | 0-255: Total dimming linear dimming, from darkest to brightest. | |
| CH2 | red | 0-255: Red linear dimming, from darkest to brightest. | |
| CH3 | green | 0-255: Green linear dimming, from darkest to brightest. | |
| CH4 | blue | 0-255: Blue linear dimming, from darkest to brightest. | |
| CH5 | white | 0-255: White linear dimming, from darkest to brightest. | |
| CH6 | stroboscopic | 0-255. | |
| CH7 | Color presetting | 0-255. | |
| CH8 | Static color mixing + self-walking | 0-255. | |
| CH9 | Self-propelled velocity | 0-255: Self-walking speed adjustment, from the fastest to the slowest. | |
| 6CH： | |||
| S/N | Function | Description | |
| CH1 | Total dimmer | 0-255: Total dimming linear dimming, from darkest to brightest. | |
| CH2 | red | 0-255: Red linear dimming, from darkest to brightest. | |
| CH3 | green | 0-255: Green linear dimming, from darkest to brightest. | |
| CH4 | blue | 0-255: Blue linear dimming, from darkest to brightest. | |
| CH5 | white | 0-255: White linear dimming, from darkest to brightest. | |
| CH6 | stroboscopic | 0: invalid; 1-84 lightning stroboscopic; 85-169 random stroboscopic; 170-255 Standard stroboscopic. | |
FAQ
1. How to make sure your quality?
We have very clear and strict testing procedures, and we also have advaced testing equipment. The most important thing is that we use all good quality materials and never tried low quality raw materials.
2. Can you do ODM ,OEM?
Yes ,sure.
3. Is it OK to print my logo on stage light product?
Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Advantages
1. A stage lighting enterprise that gathers research, production, marketing, and after-sales as integral whole.
2.Top ten Brand enterprises of Stage lighting in China, national intellectual property standard enterprise, Guangdong Province contract abiding enterprise, China Quality credit AAA+ enterprise, etc.
3.More then fifty kinds of goods have been granted“CE” certification.
4.Our goods are popular in Europe and America, Southeast Asia, Russia., etc., more than 60 countries and regions.
