Having passed the insulation resistance test, it is free of electrical safety issues. Thus, users can be assured that there is no electric shock problem.

A moving head spotlight is a type of stage lighting that is commonly used in live concerts and other performances. These lights are often controlled by a computer to create different patterns and effects. LED moving head spotlights are becoming increasingly popular due to their energy efficiency and long lifespan. These lights are typically more expensive than traditional incandescent spotlights, but they can save money in the long run. We are the professional moving lighting manufacturer with 21 years experience.

The brightness of the 150W led moving head spotlight is 10000lux@5m.

It has 7 colors+ white + sem i- color effect + bi- direction effect, 1 Rotation Gobo Wheel, which has 6 rotation gobo + white + shake + bi - direction, 1 1pc animation wheel with 3 animation gobos.

Regarding the prism, it has a Special illusion of 6 facets and 4 facet prism, clockwise + counterclockwise rotation (6 facets linear prism optional). Furthermore, it is also with RDM control, 2 cooling fans(base and head fan).




Products Details

What is the home decoration gypsum led beam moving head light ceiling reflective lamp slot? Is it reasonable to charge separately? The quotation method of each company is different. If you calculate this, the square is 155 square meters, and the price is similar. it is a bit expensive. The hole lights are all bought by themselves. This shows that the problem is not from the ballast. Generally, the wires buried in the floor or in the junction box above the LED Moving Head lights have leakage. After going to bed at night, try to turn off the main gate and see if there is any fever the next day. If the switch is still turned off, it is not a problem with your home line; otherwise, it will be carefully checked. Using low-brightness lights while eating can feel romantic and comfortable, and bright Moving Head Beam light can be used at other times. In addition, attention should be paid to the location of the installation. it is not directly exposed to the head of the diner, so that it looks unsightly and affects the mood of the meal. Restaurant decoration design knowledge.In order to ensure its stable performance, Yellow River is tested in high and low temperature, low and high voltage conditions to verify it can work well in different environments.

LED moving head spotlights, or simply "moving head," is a type of stage lighting fixture that is designed to move around the stage and produce versatile beam and gobo effects. Moving heads are an essential part of any modern lighting rig, and they are often used to create dynamic and exciting lightshows. LED moving spotlights are a popular type of moving head light, as they offer a bright and energy-efficient alternative to traditional halogen spotlights. LED moving heads typically use less power than their halogen counterparts, and they also generate less heat, making them ideal for use in small venues or crowded spaces.Whether you're looking for a powerful spotlight for your next live show or a more energy-efficient option for your club or bar, LED moving heads are a great choice.

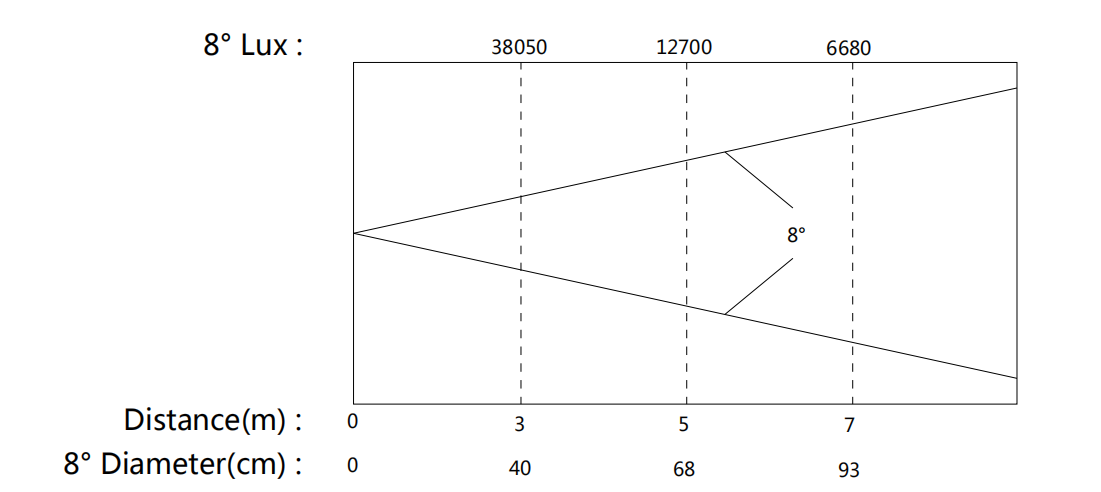

Illumination diagram



Product Parameters:


Electrical

Voltage

100V ~240V,50-60HZ

Light Source

LED

150W White LED @5000lm/                              10000lux@5m

LED lifespan

20000 hours

Control Mode

DMX512

√ CH17/CH21

Master/slave

Auto

RDM protocol

Update

USB firmware update port

Optical System

Strobe

1~30t/s

CCT

8000K

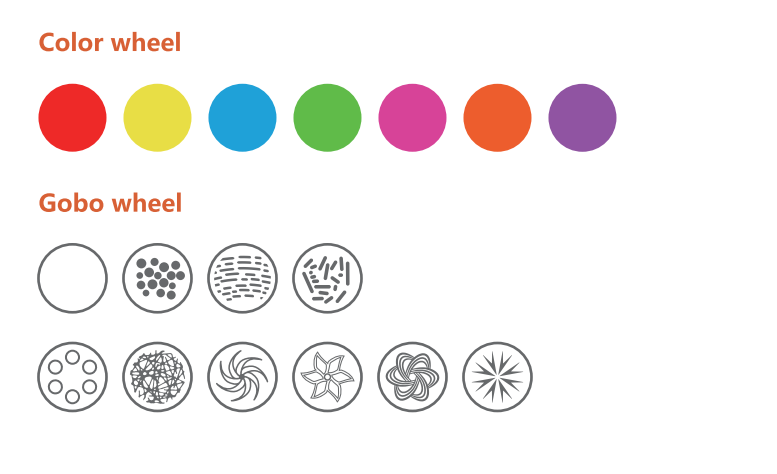

Color  wheel

7color+ white+semi-color effect+bi- direction effect

Effect Gobo Wheel

1pc animation wheel with 3 effects

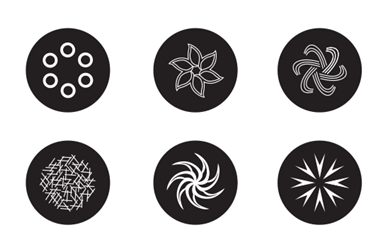

Rotation Gobo Wheel

6 rotation gobo+white +shake+bi-direction

 Prism

Special illusion 6 facets and 4 facet prism, clock wise+counterclockwise rotation (6 facets linear prism optional)

Angle

8°

Lux

10000lux@5m

PAN/TILT :

PAN:540°; Tilt: 270°,3 phase motor

Cooling system

2 cooling fans(base and head fan)

Physical

Color LCD display with the 5-button function menu
DMX In/Out: 3/5-pin DMX
Power In/Out: Locking powerCON (Daisy chain 3 units @ 120V; 6 units @ 240V)

Machine Size

298*231*473mm

Weight(kg)

11.1

Environment& safety

Level of Protection

IP20

Stock

Clean and dry place

Running temp.

-10°C~40°C


A LED moving head beam is a type of stage light that uses a cluster of LEDs to create a powerful and focused light source. These lights are often used in live music venues and theaters, as they can create dramatic effects and add excitement to a performance. LED moving head spotlights are typically much brighter than traditional incandescent or halogen spotlights, and they also consume less energy, making them more environmentally friendly. LED Moving head spot is a type of lighting fixture commonly used in stage performances, concerts, and other events. It is equipped with LED (Light Emitting Diode) technology, which allows for versatile and energy-efficient lighting effects. The moving head spot can pan and tilt to direct the light beam in various directions, providing dynamic and customizable lighting effects. LED Moving Head Spots often offer features such as color mixing, gobo projection, strobe effects, and adjustable focus. They are favored for their compact size, low power consumption, long lifespan, and the ability to create stunning visual effects.

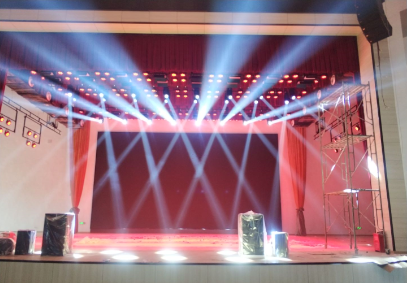

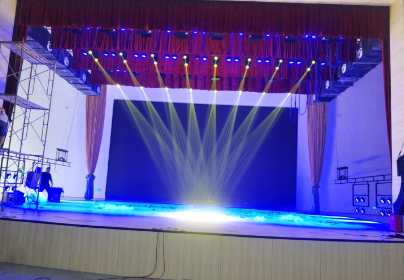

Light Effect:

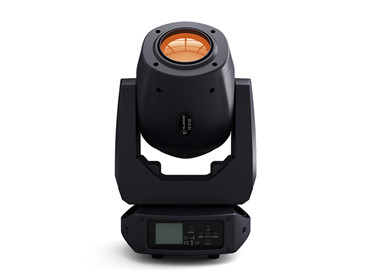

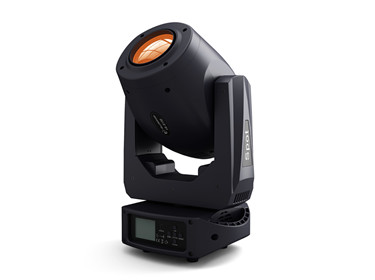

Product Appearance:




Advantages of Moving head spotlights:


1. Flexibility: Moving head spotlights can pan, tilt and rotate in any direction. This flexibility allows lighting designers to create dynamic and immersive effects that enhance the visual impact of performances or events.


2. Customization: Stage Moving spotlights have various features such as color mixing, gobo projection, and adjustable focus, providing a wide range of creative possibilities for lighting designs. Lighting designers can easily customize the lighting to suit different moods, themes, or scenes.


3. Energy efficiency: LED Moving spot light equipped with LED technology consume less power compared to traditional lighting fixtures, leading to energy savings and reduced operating costs. LEDs also have a longer lifespan, reducing the need for frequent lamp replacements.


4. Precise control: Moving head spotlights can be controlled remotely via DMX protocol or other control systems. This level of control allows for fine-tuning of parameters such as intensity, color, movement, and effects, providing precise control over the lighting design.


5. Silent operation: Many stage lighting moving heads are designed with advanced cooling systems and noise reduction technologies, ensuring silent operation during performances or events. This feature is beneficial, particularly in settings where noise interference is undesirable.

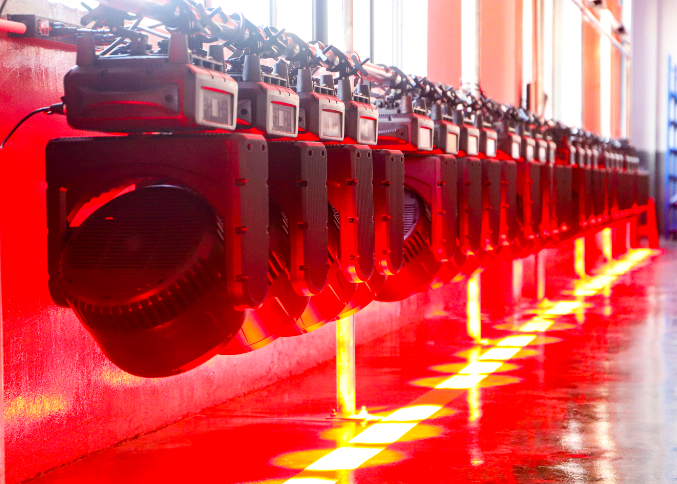

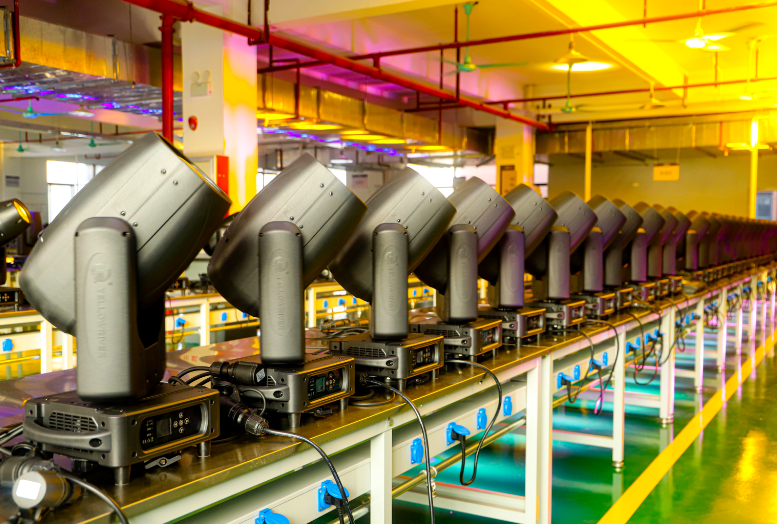

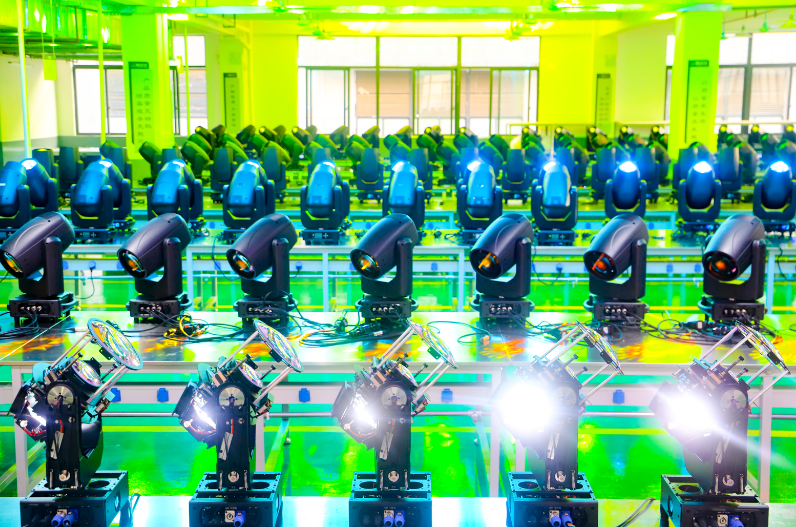

Workshop:





About Yellow River

Yellow River lighting -- focusing on stage lighting for 21 years, it is a national high-tech enterprise that provides integrated services of R&D, design, production, marketing, and after-sales service. Top ten Brand enterprises of Stage lighting in China, national intellectual property standard enterprise, Guangdong Province contract abiding enterprise, China Quality credit AAA+ enterprise, etc. The company has passed the ISO9001 quality management system, occupational health and safety management system, environmental management system, and other certifications. The products have passed the CE RoHS certification and obtained dozens of patents. More than fifty kinds of goods have been granted “CE” certification. Established in 1999, the staff in Yellow River always take the responsibility of “Let the world dance” upon ourselves. The senior management team is mostly composed of 6-21 years of senior industry personnel. At present, the company has three R & D centers and three brands: Yellow River Lighting, Yagelai, and Yagesi. We have seven offices in China and We have more than 2000 global brand agents and project contractors; Are the preferred manufacturers for your culture and art center, tourism performance, multi-function hall, hotel banquet hall, auditorium, night tour, urban landscape lighting, and other projects.
