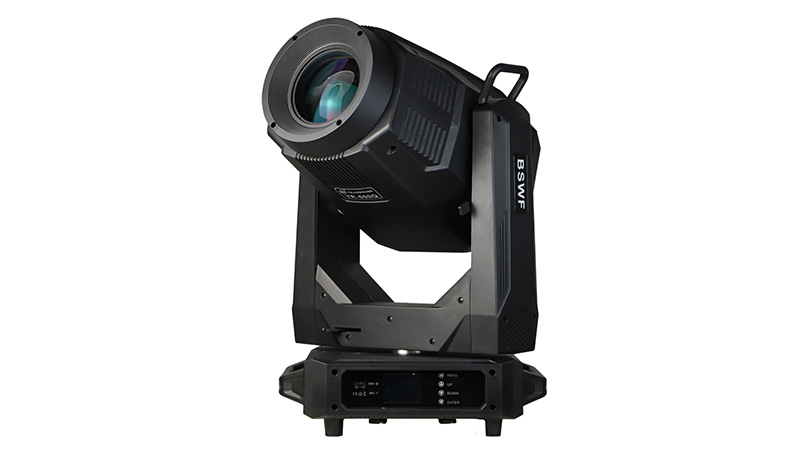

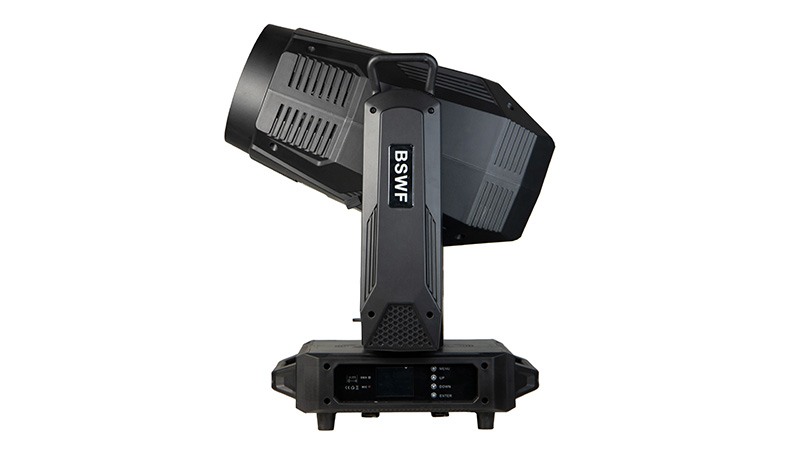

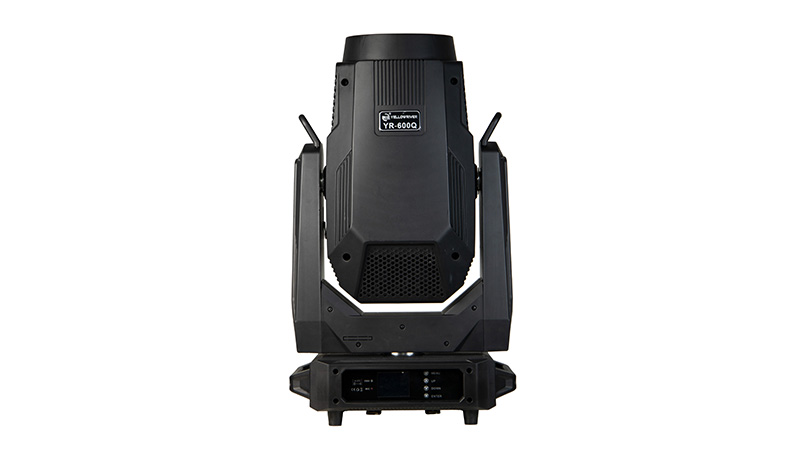

YR-600Q is a spot profile light. The profile light cuts the light by manipulating the cutting plate to get different effects. The light can be cut into a variety of geometric shapes, and can realize a variety of graphics dynamic conversion. Make the areas that should be bright bright, and cut off what shouldn't be lit, make the stage cleaner, more prominent. Spot profile light, as the name suggests, is a stage light with light spot cutting function, it sets light beam, pattern, dyeing, cutting four functions as one, on the basis of three-in-one lamps to add four fast, smooth, frame shutter system, through the predetermined program to control the movement of the blade sequence, with the aperture contraction to achieve a series of cutting effects.
Feature:
◎ profile system
◎ CMY color mixing system
◎ four cutting pieces
◎ cutting pattern can be rotated 160°
YR-600Q is a spot profile light(Beam+Spot+Wash and Framing 4in1). The profile light cuts the light by manipulating the cutting plate to get different effects. The light can be cut into a variety of geometric shapes, and can realize a variety of graphics dynamic conversion. Make the areas that should be bright bright, and cut off what shouldn't be lit, make the stage cleaner, more prominent.
Product Parameters
Electrical | Voltage | AC100V-240V (50/60HZ) | |||
Power consumption | 950W | ||||
Power factor | 0.99 | ||||
Rated current | 4.32A | ||||
Light Source | lamp | 600W LED module | |||
Lamp life span | 20,000 hours | ||||
CCT | 6300K | ||||
Control Mode | Control signal | DMX512(Digital MultipleX 512)+RDM, in line with international standard light control transmission protocol, support console set address code, support DMX interface upgrade software | |||
Control channels | 36 channels | ||||
Operation mode | console, manual, master-slave, optional DMX512 wireless signal control | ||||

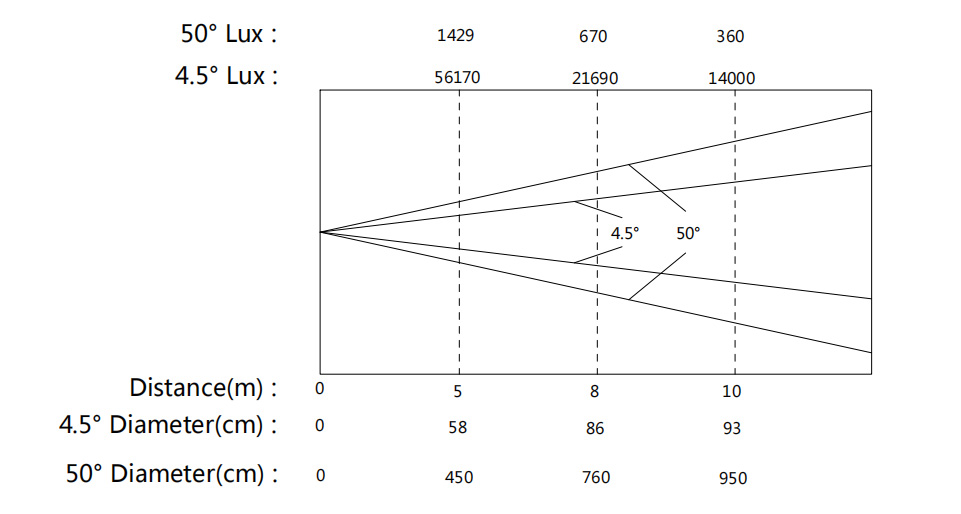

Optical System | Beam angle | 4.5° -50 ° | |||
Dimmer | Linear dimming | ||||
Color wheel | 7 high-gloss coating colors + white light, half-color effect, with two-way variable speed flow effect | ||||
CMY | An independent CMY color mixing system | ||||
Prism | 8 prism +6 rows of mirrors, can be rotated independently, can be rotated bidirectional variable speed | ||||
CTO | Independent 3200K-6300K color temperature linear adjustment | ||||
Metal gobo | 8 patterns + white light, support replacement, with variable speed jitter, two-way variable speed flow effect | ||||
Glass gobo | 7 patterns + white light holes, with rotation function, index function, two-way variable speed flow effect | ||||
Effect wheel | 1 flame plate, can simulate the super dazzling sensation of moving flame effect | ||||
frost | 1 independent atomizer, 0-100% linear frost effect | ||||
Environment& safty | Level of Protection | IP20 | |||
Maximumtemperature | 40°C | ||||
Overtemperature protection | high precision temperature control whole-process inspection, can automatically cut off the protection of light source |
CHANNEL | Function | Number | Description | 50-59 | Gobo 5 | ||
[CH1] | X-axis | 0-255 | 0-540 degrees | 60-69 | Gobo 6 | ||
[CH2] | X-axis trim | 0-255 | 0-2 degrees | 70-79 | Gobo7 | ||
[CH3] | Y-axis | 0-255 | 0-270 degrees | 80-89 | Shake gobo 1 from slow to fast | ||
[CH4] | Y-axis fine-tuning | 0-255 | 0-1 degrees | 90-99 | Shake gobo 2 from slow to fast | ||
[CH5] | XY velocity | 0-255 | From fast to slow | 100-109 | Shake gobo 3 from slow to fast | ||
[CH6] | stroboscopic | 110-119 | Shakegobo4fromslowtofast | ||||
0-3 | Shutout | 120-129 | Shakegobo5fromslowtofast | ||||
4-127 | Fromslowtofastpulsestroboscopic | 130-139 | Shakegobo6fromslowtofast | ||||
128-191 | Speedchangefromslowtofast | 140-149 | Shakegobo7fromslowtofast | ||||
192-251 | Randomstroboscopicfromslowtofast | 150-190 | Flowbackwardfromfasttoslow | ||||
252-255 | Openingthelight | 191-192 | stop | ||||
[CH7] | dimming | 0-255 | 0-100%dimming | 193-255 | Flowfromslowtofast | ||
[CH8] | cyan | 0-255 | [CH16] | Selfrotatedgobowheel | |||
[CH9] | Magenta | 0-255 | 0-127 | 0-360degrees | |||
[CH10] | yellow | 0-255 | 128-190 | Flowbackwardfromfasttoslow | |||
[CH11] | Temperature | 0-255 | 191-192 | stop | |||
[CH12] | Colourwheel | 193-255 | Flowfromslowtofast | ||||
0-127 | Linearcolor | [CH17] | Goboeffect | 0-255 | |||
128-135 | Color1 | [CH18] | focusing | 0-255 | Fromfartonear | ||
136-143 | Color2 | [CH19] | Focusingfinetuning | 0-255 | |||
144-151 | Color3 | [CH20] | Blowup | 0-255 | Frombigtosmall | ||
152-159 | Color4 | [CH21] | Prism1 | ||||
160-167 | Color5 | 0-127 | Empty | ||||
168-175 | Color6 | 128-255 | Insertprism1 | ||||
176-183 | Color7 | [CH22] | Prismrotation | ||||
184-191 | Color8 | 0-127 | 0-360degrees | ||||
192-222 | Flowbackwardfromfasttoslow | 128-187 | Flowfromfasttoslow | ||||
223-224 | stop | 188-195 | stop | ||||
225-255 | Flowfromslowtofast | 196-255 | Flowbackwardfromslowtofast | ||||
[CH13] | Color2 | 0-255 | [CH23] | Prism2 | |||
[CH14] | Gobowheel | 0-127 | Empty | ||||
0-9 | Whitelight | 128-255 | Insertprism2 | ||||
10-19 | Gobo1 | [CH24] | Prism2rotation | ||||
20-29 | Gobo2 | 0-127 | 0-360degrees | ||||
30-39 | Gobo3 | 128-187 | Flowfromfasttoslow | ||||
40-49 | Gobo4 | 188-195 | stop | ||||
50-59 | Gobo5 | 196-255 | Flowbackwardfromslowtofast | ||||
60-69 | Gobo6 | [CH25] | Frost1 | ||||
70-79 | Gobo7 | 0-3 | Empty | ||||
80-89 | Gobo8 | 4-255 | Linearfrost | ||||
90-99 | Shakegobo1fromslowtofast | [CH26] | Slice1 | 0-255 | |||
100-109 | Shakegobo2fromslowtofast | [CH27] | Slice2 | 0-255 | |||
110-119 | Shakegobo3fromslowtofast | [CH28] | Slice3 | 0-255 | |||
120-129 | Shakegobo4fromslowtofast | [CH29] | Slice4 | 0-255 | |||
130-139 | Shakegobo5fromslowtofast | [CH30] | Slice5 | 0-255 | |||
140-149 | Shakegobo6fromslowtofast | [CH31] | Slice6 | 0-255 | |||
150-159 | Shakegobo7fromslowtofast | [CH32] | Slice7 | 0-255 | |||
160-169 | Shakegobo8fromslowtofast | [CH33] | Slice8 | 0-255 | |||
170-210 | Flowbackwardfromfasttoslow | [CH34] | Slicerotation | 0-255 | |||
211-215 | stop | [CH35] | Aperture | 0-255 | |||
216-255 | Flowfromslowtofast | [CH36] | Reset/function | ||||
[CH15] | Rotatedgobowheel | 0-209 | non-function | ||||
0-9 | Whitelight | 210-215 | ResetXYmotorafter3seconds | ||||
10-19 | Gobo1 | 216-219 | non-function | ||||
20-29 | Gobo2 | 220-235 | Resettheeffectmotorafter3seconds | ||||
30-39 | Gobo3 | 236-239 | non-function | ||||
40-49 | Gobo4 | 240-255 | Resetthelightsin3seconds |
FAQ
1. How to make sure your quality?
We have very clear and strict testing procedures, and we also have advaced testing equipment. The most important thing is that we use all good quality materials and never tried low quality raw materials.
2. Can you do ODM ,OEM?
Yes ,sure.
3. Is it OK to print my logo on stage light product?
Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
